🔧 Canyon - Serpentine Belt Replacement

The serpentine belt is the single long belt that drives your alternator and other accessories. Replacing it restores proper grip and prevents squealing, charging problems, or a sudden breakdown if the belt snaps.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: your Canyon uses a single serpentine belt with an automatic tensioner (most 3.6L setups do).

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine OFF and keys out of the ignition.
• ⚠️ Keep fingers, hair, and loose clothing away from pulleys.
• ⚠️ Let the engine cool; the radiator/fan area can be hot.
• ⚠️ Do not start the engine with tools near the belt path.
• ⚠️ Battery disconnect is not required, but disconnecting the negative terminal is a good extra safety step for first-timers.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive extension set (3" and 6")
• 15mm socket
• Flathead screwdriver
• Flashlight
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and open the hood.
• 🔦 Find the belt routing diagram (usually a sticker under the hood). If it’s missing, use a phone photo and/or draw your own routing with a paint marker on a piece of cardboard.
• 🧊 If the engine was running, wait 15-30 minutes for things to cool.
• 🔋 Optional: Use a wrench/ratchet to disconnect the negative battery terminal to prevent accidental cranking.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create a belt routing reference

• Use a flashlight to locate the belt routing label.
• If you can’t find a label, use a paint marker to sketch the belt path (which pulleys the belt wraps around).
• A photo now saves a headache later.

Step 2: Remove any intake ducting that blocks access (if needed)

• Use a flathead screwdriver to loosen hose clamps on the air intake duct (only if it blocks access to the belt/tensioner).
• Use your hands to lift the duct out of the way gently.

Step 3: Relieve belt tension at the automatic tensioner

• Locate the belt tensioner (spring-loaded arm with a pulley). The tensioner is what keeps the belt tight automatically.
• Install a 15mm socket on a 3/8" drive breaker bar (a breaker bar is a long handle that gives extra leverage).
• Place the socket on the tensioner’s hex boss/bolt head.
• Rotate the tensioner smoothly to release belt tension. Keep steady pressure—don’t let it snap back.

Step 4: Slip the belt off one easy pulley

• While holding the tensioner rotated with the breaker bar, use your free hand to slide the belt off the smoothest/easiest-to-reach pulley (often an idler or the alternator).
• Slowly release the tensioner back to its resting position.

Step 5: Remove the old belt completely

• Use your hands and a flashlight to work the belt off the remaining pulleys.
• Inspect the old belt for cracks, missing ribs, glazing (shiny spots), or fraying—these confirm it was due.

Step 6: Route the new belt onto the pulleys

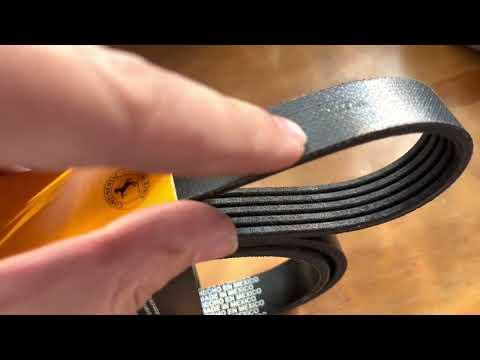

• Compare the new belt to the old one (length and rib count should match).
• Route the new belt following the under-hood diagram (or your photo/sketch).
• Make sure the ribbed side of the belt sits in the ribbed pulleys, and the smooth side rides on smooth pulleys.
• Use a flashlight to confirm the belt is centered in every pulley groove.

Step 7: Apply tension and seat the belt

• Use the 15mm socket and 3/8" drive breaker bar to rotate the tensioner again.
• Slip the belt over the last pulley, then slowly release the tensioner.
• Re-check every pulley: the belt ribs must be fully seated (not riding on the edge).
• If it’s off by one rib, fix it now.

Step 8: Reinstall any removed intake ducting

• Reposition the intake duct by hand.
• Use a flathead screwdriver to tighten the clamps snugly (do not overtighten and crack plastic).

---

✅ After Repair

• 🔍 Do a final visual check with a flashlight: belt centered on every pulley.
• 🔑 Start the engine and watch the belt for 10-15 seconds from a safe distance (keep hands/tools away).
• 👂 Listen for chirping/squeal. If you hear it, shut the engine off and re-check belt alignment.
• 🧪 Take a short test drive, then re-check belt seating once more.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $70-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
