🔧 RAV4 - Serpentine Belt Replacement

The serpentine belt (also called the drive belt) runs your alternator, water pump, and A/C with one long belt. On your RAV4, we’ll loosen the automatic tensioner, slip off the old belt, and install a new one following the correct routing.

Difficulty Level: Intermediate | Estimated Time: 1–2 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cool engine; a hot engine and pulleys can burn you.
• ⚠️ Set the parking brake and chock the rear wheels so the RAV4 cannot roll.
• ⚠️ Support the vehicle with jack stands; never rely only on a floor jack.
• ⚠️ Keep fingers and tools away from belt and pulleys when rotating the tensioner.
• ⚠️ Turn the ignition OFF and remove the key so no one can start the engine while you work.
• Battery disconnect is not required for this job, but you may disconnect the negative cable with a 10mm wrench if you want extra safety.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ 19mm socket
• 🛠️ 14mm socket
• 🛠️ 10mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive long-handled ratchet or breaker bar
• 🛠️ Serpentine belt tool (low-profile, long handle) (specialty)
• 🛠️ Torque wrench (5–75 ft-lb range)
• 🛠️ Flat trim clip remover or flathead screwdriver
• 🛠️ Lug wrench or 21mm socket for wheel nuts
• 🛠️ Work light
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses
• 🛠️ White paint marker or chalk

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Serpentine drive belt (2.5L engine, with A/C) - Qty: 1
• 🔩 Belt tensioner assembly - Qty: 1 (optional but recommended if noisy or weak)
• 🔩 Idler pulley - Qty: 1 (optional, if pulley feels rough)
• 🔩 Anti-seize compound - Qty: 1 tube
• 🔩 Brake cleaner spray - Qty: 1 can
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park the RAV4 on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen the front right (passenger side) wheel nuts one turn with the lug wrench or 21mm socket before lifting.
• Raise the front right corner with the floor jack and support it securely on jack stands under the pinch weld or frame point.
• Remove the front right wheel for better access to the belt area.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and move it aside.
• A “breaker bar” is a long-handled ratchet that gives extra leverage to turn tight bolts or, in this case, the belt tensioner.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove right front wheel and splash shield

• Use the lug wrench or 21mm socket to remove the wheel nuts and take off the right front wheel.
• Use a 10mm socket and ratchet to remove the small bolts holding the plastic splash shield inside the wheel well near the engine side.
• Use the trim clip remover or flathead screwdriver to gently pop out any plastic clips on the splash shield.
• Pull the splash shield back or remove it so you can clearly see the belt and pulleys.
• Torque for wheel nuts on reassembly: 103 Nm (76 ft-lb)

Step 2: Study and mark the belt routing

• A “belt routing diagram” shows how the belt snakes around all pulleys.
• Look for the factory diagram label under the hood; if it’s missing, draw your own on paper.
• From the wheel well and from above, use a work light to see each pulley: crankshaft (bottom), A/C compressor (low front), alternator, water pump, idler, and tensioner.
• Use the white paint marker or chalk to draw arrows on the belt showing direction and take a clear photo on your phone.
• Double-check routing before removing the belt.

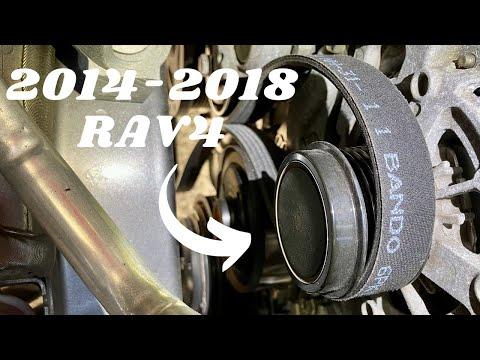

Step 3: Rotate the belt tensioner to release tension

• The belt tensioner is a spring-loaded pulley that keeps the belt tight.
• On your RAV4, the tensioner pulley has a 19mm bolt in the center you can turn.
• From the wheel well, place the 19mm socket on the tensioner pulley bolt and attach the long 1/2" ratchet or breaker bar or serpentine belt tool.
• Rotate the tensioner clockwise to relieve belt tension. It will move against the internal spring.
• While holding the tensioner in the released position, slide the belt off one easily reached smooth pulley (often the idler or alternator) using your free hand.
• Slowly let the tensioner return to its rest position under control. Do not let it snap back.

Step 4: Remove the old belt completely

• From both the wheel well and top of the engine bay, pull the belt off all remaining pulleys.
• Note the belt’s path as you remove it so you can compare with your diagram.
• Inspect the pulleys by spinning them by hand:
  • They should spin smoothly without grinding or wobble.
  • Listen for roughness; if present, replace that pulley or tensioner.
• Use brake cleaner and shop towels to clean any oil or coolant off the pulleys; contamination can ruin the new belt.

Step 5: Compare old and new belts

• Lay the old belt and new belt side by side on a clean surface.
• Check that the length and rib count (number of grooves) match.
• Slight difference in “curve” is OK, but they should be nearly the same total length.
• Do not install if length or ribs do not match.

Step 6: Install the new belt on lower pulleys first

• Use your routing diagram or photo to guide you.
• From below/side (wheel well), loop the belt around the crankshaft pulley (largest lower pulley) and make sure all ribs sit fully in the grooves.
• Route the belt around the A/C compressor pulley and any other lower pulleys following the diagram.
• Keep the belt snug with one hand so it doesn’t slip off while you route the rest.
• Leave one easy-to-reach smooth pulley for last.

Step 7: Route belt over upper pulleys and prepare for final install

• From the top of the engine bay, route the belt over the alternator and water pump as per the diagram.
• Ensure the belt sits correctly in each grooved pulley; no ribs should hang off the edge.
• Choose one smooth (non-grooved) pulley, often an idler, as the last point where the belt will slip on once tension is released.
• Make sure the belt is slightly “short” at that last pulley; this is normal because the tensioner is still tight.

Step 8: Release tensioner and seat the new belt

• Again place the 19mm socket and breaker bar/serpentine belt tool on the tensioner pulley bolt from the wheel well.
• Rotate the tensioner clockwise to create slack in the belt.
• With your other hand, slide the belt onto the last smooth pulley.
• Make sure all sections of the belt are still fully seated in their pulley grooves.
• Slowly release the tensioner so it tightens the belt.

Step 9: Final alignment check

• From the wheel well and from above, visually inspect every pulley:
  • Ribs must be centered in grooved pulleys.
  • Belt must be straight, not riding on any pulley lip.
• Use your work light to check the lower crank and A/C pulleys carefully.
• If any section is off by even one rib, rotate the tensioner again and correct it now.

Step 10: Reinstall splash shield and wheel

• Reposition the inner splash shield and push the plastic clips back in by hand.
• Use the 10mm socket and ratchet to reinstall the bolts holding the shield.
  • Torque to 7.5 Nm (66 in-lb) (snug, not overly tight).
• Reinstall the right front wheel and hand-thread the lug nuts.
• Lower the RAV4 to the ground with the floor jack.
• Use the torque wrench and 21mm socket to tighten wheel nuts in a star pattern:
  • Torque to 103 Nm (76 ft-lb).
• If you disconnected the battery, reconnect the negative terminal with a 10mm socket:
  • Torque to 5 Nm (44 in-lb) (just snug).

Step 11: Start engine and verify operation

• Remove all tools from the engine bay and wheel well.
• Start the engine and let it idle.
• Watch the belt from above:
  • It should run smoothly with no wobble or jumping.
  • Listen for squealing, chirping, or grinding noises.
• Turn on A/C and lights to put some load on the belt-driven accessories and recheck belt movement.
• Shut off engine immediately if you see misalignment.

---

✅ After Repair

• Check again around the belt area for any tools or rags before driving.
• After your first short drive (5–10 minutes), recheck belt alignment and look for any frayed edges.
• Listen over the next few days for new noises; if you hear chirping, recheck alignment and pulley condition.
• If you replaced the tensioner or pulley, no special computer reset is needed.

---

💰 DIY vs Shop Cost

Shop Cost: $180–$300 (parts + labor)

DIY Cost: $25–$80 (parts only, depending on belt and whether you add a new tensioner/pulley)

You Save: $100–$220 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.7–1.0 hours.

---
