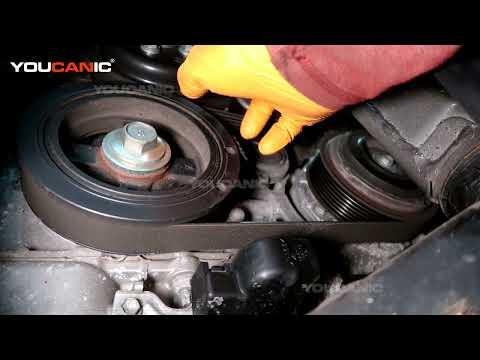

🔧 Highlander - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator and A/C compressor. On your Highlander, belt tension is controlled by an automatic spring-loaded tensioner, so the job is mostly about safely relieving tension, swapping the belt, and confirming the new belt is routed correctly on every pulley.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: 3.5L V6 uses a single serpentine belt with an automatic tensioner.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot pulleys can burn you.
• ⚠️ Keep fingers clear of the belt path while releasing the tensioner (it’s spring-loaded and snaps back).
• ⚠️ If you lift the vehicle, support it with jack stands; never rely on the jack alone.
• ⚠️ No battery disconnect is required for this repair, but keep the key away so no one starts the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 10mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Trim clip remover tool
• 14mm wrench
• Serpentine belt tool (specialty)
• Flashlight
• Torque wrench (10-150 ft-lbs range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Engine under cover fastener clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and take a clear photo of the belt routing. If there’s a routing sticker, take a photo of that too.
• If you’ll access from the passenger-side wheel well (recommended), slightly loosen the passenger-front lug nuts before lifting the vehicle using a 21mm socket and breaker bar.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the passenger-front corner

• Use a floor jack to lift the passenger-front corner at the proper jacking point.
• Set the vehicle onto jack stands and gently shake the vehicle to confirm it’s stable.

Step 2: Remove the passenger-front wheel

• Remove the lug nuts using a 21mm socket and breaker bar, then remove the wheel.
• Set the wheel aside under the vehicle as an extra safety measure.

Step 3: Remove the right-side splash shield/under cover for access

• Use a 10mm socket, 3/8" drive ratchet, and extension to remove the small bolts holding the splash shield/under cover section near the belt area.
• Use a trim clip remover tool to pop out any plastic clips without breaking them (a trim clip tool is a fork-shaped pry tool made for plastic fasteners).
• Use a flashlight to locate the belt, tensioner, and pulleys.

Step 4: Locate the automatic belt tensioner

• Look for the spring-loaded arm with a pulley on it. That’s the belt tensioner.
• Identify the 14mm hex on the tensioner arm where you will apply force to release belt tension.

Step 5: Relieve belt tension

• Place a 14mm wrench or serpentine belt tool (specialty) on the tensioner hex.
• Pull smoothly to rotate the tensioner and loosen the belt. Move slowly; spring force is strong.
• While holding tension off, slide the belt off the easiest-to-reach smooth pulley using your free hand.
• Carefully release the tensioner back to its resting position (do not let it snap).

Step 6: Remove the old belt and inspect pulleys

• Remove the belt from the remaining pulleys by hand.
• Spin each accessible pulley by hand and listen/feel for roughness or wobble.
• If the tensioner pulley feels rough or noisy, the tensioner assembly may also need replacement.

Step 7: Route the new belt

• Match the new belt to the old belt length and rib count before installing.
• Route the belt around the pulleys following your photo/routing sticker.
• Make sure the belt ribs sit fully in the grooves of every ribbed pulley (misalignment will shred a new belt quickly).

Step 8: Apply tension and seat the belt

• Use the 14mm wrench or serpentine belt tool (specialty) to rotate the tensioner again.
• Slip the belt over the last pulley.
• Slowly release the tensioner.
• Double-check belt seating on every pulley using a flashlight.

Step 9: Reinstall splash shield/under cover and wheel

• Reinstall the shield using the trim clip remover tool (to push clips back in) and 10mm socket with ratchet.
• Reinstall the wheel and hand-thread the lug nuts.
• Lower the vehicle off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 30-60 seconds (stay clear of moving parts).
• Listen for squealing, chirping, or slapping noises. If heard, shut it off and re-check routing and belt seating.
• Turn on A/C and headlights briefly to load accessories, then re-check that the belt tracks straight.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$320 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $125-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
