🔧 Camry - Serpentine Belt Replacement

Your Camry uses a single accessory (serpentine) belt to drive engine accessories. Replacing it is mostly about getting safe access, releasing the spring-loaded tensioner, and routing the new belt correctly so it tracks straight.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: 2.5L Hybrid uses an automatic belt tensioner, accessed from the passenger-side wheel well.

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep the car OFF (not READY) and keep the key fob away from the vehicle so the hybrid system cannot wake up.
• ⚠️ Stay away from orange high-voltage cables and connectors; this job does not require touching them.
• ⚠️ Keep fingers clear of the belt path when releasing the tensioner; it is spring-loaded.
• ⚠️ Let the engine cool before working near the crank pulley and lower splash shields.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar (1/2")
• Torque wrench (10-200 Nm range)
• 10mm socket
• Ratchet (3/8")
• Extension set (3/8")
• Trim clip removal tool
• 14mm wrench
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Engine undercover clips (push-type retainers) - Qty: 2-6

---

📋 Before You Begin

• Park on a level surface, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Make sure the ignition is OFF and the dash shows the car is not in READY mode.
• Open the hood and locate the belt routing diagram (often on the radiator support area). If you don’t see one, take a clear photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front passenger side safely

• Use a floor jack to lift the front passenger-side jacking point.
• Place jack stands under the proper support point and lower the car onto the stands.
• Give the vehicle a gentle push to confirm it is stable before crawling underneath.

Step 2: Remove the front passenger wheel

• Use a 21mm socket and breaker bar to loosen the lug nuts, then remove them.
• Remove the wheel and set it under the car as an extra safety backup.
• When reinstalling later, Torque to 103 Nm (76 ft-lbs) using a torque wrench.

Step 3: Remove the passenger-side splash shield / access panel

• Use a trim clip removal tool to pop out plastic clips.
• Use a 10mm socket with a ratchet and extension to remove any 10mm bolts.
• Move the splash shield aside to expose the belt, crank pulley, and tensioner.

Step 4: Locate the automatic belt tensioner

• Use a flashlight to find the tensioner pulley (a small smooth pulley on a spring-loaded arm).
• The tensioner has a hex “boss” for a wrench; this is the spot you turn to relieve belt tension.
• “Tensioner” means a spring-loaded belt tightener.

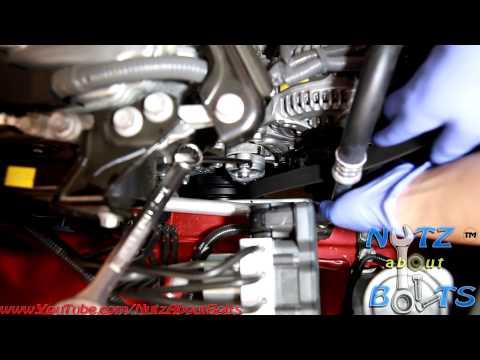

Step 5: Release belt tension

• Install a 14mm wrench on the tensioner hex.
• Rotate the tensioner smoothly to relieve belt tension (it will feel strong because of the spring).
• While holding the tensioner rotated, slide the belt off the easiest pulley to reach.
• Slowly let the tensioner return to its resting position (do not let it snap back).

Step 6: Remove the old belt and check pulleys

• Pull the belt out through the wheel-well opening.
• Spin the pulleys by hand (with the engine OFF) and feel for roughness or wobble.
• If any pulley feels gritty, noisy, or loose, stop and repair that issue before installing the new belt.

Step 7: Route the new belt correctly

• Compare the old belt length/width to the new one before installing.
• Route the new belt around the pulleys following the under-hood routing diagram or your photo.
• Make sure the belt ribs sit fully inside the grooved pulleys (no ribs hanging off the edge).
• A misrouted belt can shred quickly.

Step 8: Re-apply tension and seat the belt

• Use the 14mm wrench to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Visually confirm the belt is centered on every pulley.

Step 9: Reinstall splash shield and wheel

• Reinstall the splash shield using the 10mm socket and trim clip removal tool (to reinstall push-clips cleanly).
• Reinstall the wheel and hand-start all lug nuts.
• Lower the vehicle using the floor jack, then Torque to 103 Nm (76 ft-lbs) with a torque wrench.

---

✅ After Repair

• Start the car and let it idle while you watch the belt (from a safe distance, away from moving parts).
• Listen for squealing, chirping, or slapping sounds.
• Shut it off and re-check belt alignment if anything looks off-center.
• Take a short test drive, then recheck for any new noises.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$280 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
