🔧 Outback - Serpentine Belt Replacement

The serpentine belt (also called the accessory drive belt) spins your alternator and A/C. Replacing it is mostly about safely releasing the spring-loaded tensioner, routing the new belt correctly, and verifying it’s seated in every pulley groove.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands away from hot parts.
• ⚠️ Keep fingers clear of the tensioner while releasing/setting it (it’s spring-loaded and can snap back).
• ⚠️ Never start the engine with hands/tools near the belt path.
• ⚠️ If you raise the vehicle, support it with jack stands before going underneath.
• 🔋 Battery disconnect is not strictly required, but disconnecting the negative terminal helps prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 14mm socket
• 10mm socket
• Flat trim clip tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Undercover splash shield clips (optional) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool fully.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back. Negative terminal is the “-” post.
• Tip: Take a clear photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Get access to the belt area

• If you have enough room from the top, you may not need to lift the car. If access is tight, raise the front using a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• If equipped with a lower engine cover (splash shield), remove its fasteners using a flat trim clip tool and 10mm socket.

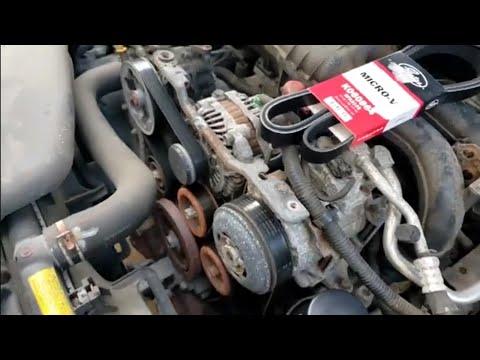

• Use a flashlight to identify the belt, the grooved pulleys, and the spring tensioner assembly.

Step 2: Locate the belt tensioner

• The tensioner is the spring-loaded arm with a smooth pulley that presses on the belt.
• Find the hex head on the tensioner arm (this is where you’ll apply force to release tension).
• Tensioner = spring-loaded belt tightener.

Step 3: Release belt tension

• Install a 14mm socket on a 3/8" drive breaker bar (a breaker bar is a longer handle that gives more leverage).
• Place the socket on the tensioner hex and rotate the tensioner in the direction that loosens the belt (you’ll feel the spring compress).
• While holding the tensioner rotated, slide the belt off the nearest easy pulley (usually an upper pulley) with your free hand.
• Slowly let the tensioner return to its resting position. Don’t let it snap back.

Step 4: Remove the old belt

• Pull the belt out from the remaining pulleys by hand.
• Inspect it: cracks across the ribs, missing chunks, or a shiny/glazed look means it was due.
• Spin the pulleys by hand and listen/feel for roughness. If a pulley feels gritty or wobbly, that pulley or bearing may need attention.

Step 5: Route the new belt

• Compare the new belt to the old one (same length and rib count).
• Route the new belt around the pulleys following the belt path you photographed.
• Make sure the ribbed side sits in the grooved pulleys, and the smooth side rides on smooth pulleys.
• Leave the easiest-to-reach pulley for last (so you can slip it on after releasing tension again).

Step 6: Apply tension and seat the belt

• Use the 14mm socket with the 3/8" drive breaker bar to rotate the tensioner again.
• Slip the belt over the last pulley, then slowly release the tensioner to apply tension.
• Visually check every pulley: the belt ribs must be centered and fully seated in the grooves (no ribs hanging off the edge).
• Most “new belt squeals” are misalignment.

Step 7: Reinstall the splash shield (if removed)

• Reinstall the undercover using the 10mm socket and flat trim clip tool.
• Tighten fasteners snugly—don’t overtighten plastic clips or you can break them.

Step 8: Reconnect battery (if disconnected)

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and watch the belt for 15–30 seconds. It should run smoothly with no wandering.
• Listen for chirping/squealing. If you hear it, shut the engine off and re-check belt seating on every pulley.
• Turn on the A/C and headlights to load the system and confirm the belt stays stable.
• After a short test drive, do a quick re-check for proper alignment and any new noises.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $95-$190 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
