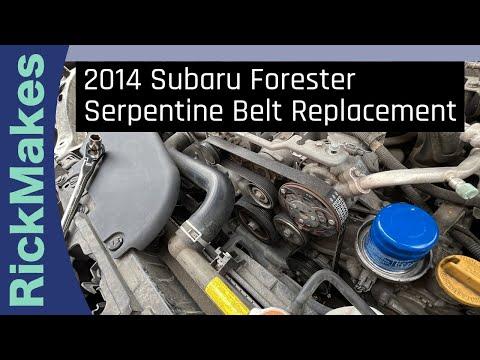

🔧 Forester - Serpentine Belt Replacement

Your Forester uses a single “serpentine” belt (one long belt) to drive accessories like the alternator and A/C. Replacing it is mostly about safely releasing the spring-loaded belt tensioner (a pulley arm that keeps the belt tight) and routing the new belt correctly.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine; the turbo/engine bay gets very hot.
• ⚠️ Keep fingers clear of the belt and pulleys when releasing the tensioner (it snaps back hard).
• ⚠️ If you raise the vehicle, support it with jack stands on solid ground—never rely on a jack alone.
• ⚠️ Battery disconnect is not required, but keep tools away from the alternator electrical post.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Ratchet (3/8")
• Socket set: 10mm, 12mm, 14mm
• Serpentine belt tool or long-handled breaker bar (3/8")
• Trim clip remover
• Flashlight
• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• Torque wrench (20–200 Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Plastic undertray clips (optional) - Qty: 4-10

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and use a flashlight to locate the belt routing diagram (often on a label in the engine bay). If you don’t see one, take a clear photo of the current routing before removing the belt.
• If you choose the wheel-well access method, chock the rear wheels before lifting the front.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create working access

• Top-access method (often enough): Use your flashlight and look down the front of the engine to identify the belt, tensioner, and pulleys.
• Wheel-well/under-access method (more room):
• Use wheel chocks at the rear wheels.
• Use a floor jack (rated 2-ton minimum) to lift the right-front jacking point, then set the vehicle on jack stands (pair, rated 2-ton minimum).
• Optional: Remove the right-front wheel using a 19mm socket.
• Torque to 120 Nm (89 ft-lbs) when reinstalling the wheel lug nuts.
• Remove the front undertray/splash shield fasteners using a 12mm socket and trim clip remover.

Step 2: Locate the belt tensioner and the “release” hex

• Find the spring-loaded tensioner pulley (a smooth pulley on an arm). The arm will have a hex boss you can turn to release tension.
• Use your flashlight to confirm your tool will sit squarely on the hex before applying force.
• Take a quick routing photo now.

Step 3: Release belt tension

• Install a 14mm socket on a ratchet (3/8") or serpentine belt tool or long-handled breaker bar (3/8") onto the tensioner hex.
• Rotate the tensioner smoothly to relieve belt tension (you’ll feel strong spring force).
• While holding the tensioner released, slide the belt off the easiest-to-reach pulley (commonly the alternator pulley) by hand with mechanic gloves.
• Slowly let the tensioner return to its resting position—do not let it snap back.

Step 4: Remove the old belt and inspect pulleys

• Pull the belt out from around the remaining pulleys by hand.
• Spin each pulley by hand and listen/feel for roughness or wobble (a bad pulley can destroy a new belt quickly).
• If you see frayed belt material stuck in grooves, clean it out carefully by hand—do not use fingers near pinch points.

Step 5: Route the new belt

• Compare the new belt to the old one for length and rib count before installing.
• Route the belt following the under-hood routing diagram or your photo.
• Make sure the ribbed side of the belt sits fully in the grooves of ribbed pulleys, and the smooth side rides on smooth pulleys.
• Leave the easiest pulley for last.

Step 6: Apply tension and seat the belt

• Use the 14mm socket with your serpentine belt tool or long-handled breaker bar (3/8") to rotate the tensioner and create slack.
• Slip the belt onto the last pulley by hand with mechanic gloves.
• Slowly release the tensioner so it tensions the belt.
• Double-check alignment: the belt should be centered and fully seated on every pulley groove.

Step 7: Reinstall covers and lower the vehicle (if removed)

• Reinstall the undertray/splash shield using the 12mm socket and trim clip remover.
• If removed, reinstall the wheel using a 19mm socket and then torque wrench (20–200 Nm range).
• Torque to 120 Nm (89 ft-lbs) for the wheel lug nuts.
• Remove the jack stands (pair, rated 2-ton minimum) and lower with the floor jack (rated 2-ton minimum).

---

✅ After Repair

• Start the engine and watch the belt for 20–30 seconds using a flashlight (keep hands/loose clothing away).
• Listen for squeal, chirping, or slapping noises—shut off immediately if the belt is walking off a pulley.
• Turn A/C on and off and confirm the belt runs smoothly with no noise changes.
• After a short drive, re-check belt alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$280 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $90-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
