🔧 CX-5 - Serpentine Belt Replacement

The serpentine belt (also called the drive belt) spins key accessories like the alternator and A/C. On your CX-5, you release the spring-loaded belt tensioner (an arm with a pulley that keeps the belt tight), slip the old belt off, route the new one, then let the tensioner re-tighten it.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot pulleys can burn you.
• ⚠️ Keep fingers/tools clear of pulleys while releasing the tensioner (it’s spring-loaded).
• ⚠️ If you raise the vehicle, support it with jack stands before going under or into the wheel well.
• ⚠️ No battery disconnect is required for this repair on your CX-5.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Flat trim clip tool
• Flashlight
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Engine undercover / splash shield clips - Qty: 2-6 (as needed)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and find the belt routing diagram (usually on a sticker near the radiator support). If it’s missing, take a clear photo of your current routing with your phone.
• If you’ll access from the passenger-side wheel well, chock the rear wheels with wheel chocks before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create access to the belt area

• Turn the steering wheel fully to the left to open up space at the passenger-side wheel well.
• If you need more room, loosen the passenger-front wheel lug nuts using a 21mm socket and 1/2" breaker bar, then lift with a floor jack and support with jack stands.
• Remove the wheel using a 21mm socket and 1/2" breaker bar.
• Remove the small splash shield/undercover section to see the crank pulley area using a flat trim clip tool and flashlight.
• When reinstalling the wheel: Torque to 108 Nm (80 ft-lbs) using a 21mm socket and torque wrench (use a shop torque wrench if you don’t have one).

Step 2: Identify the tensioner and belt routing

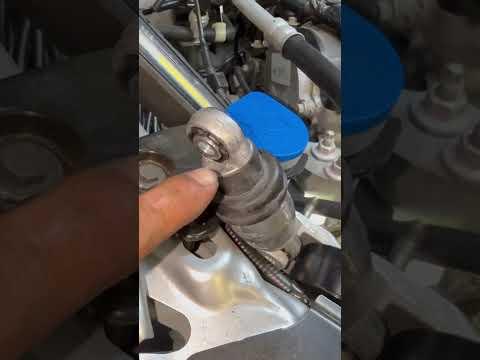

• Use a flashlight to locate the belt tensioner (spring-loaded arm with a smooth pulley).
• Use a paint marker to mark the belt direction (an arrow) on the old belt before removal. Helps if you must reinstall temporarily.
• Compare what you see to the under-hood routing diagram so you know which pulley is the easiest to slip the belt off last (usually a smooth idler or the alternator).

Step 3: Release belt tension

• Place a 14mm socket on the tensioner’s hex boss/bolt head and attach a 3/8" ratchet (use a 3/8" extension (6") if needed for reach).
• Rotate the tensioner to relieve belt tension (it will feel strong—this is normal).
• While holding the tensioner released, slide the belt off one easy-to-reach pulley with your free hand.

Step 4: Remove the old belt

• Slowly let the tensioner return to its resting position using the 3/8" ratchet and 14mm socket. Don’t let it snap back.
• Pull the belt off the remaining pulleys by hand and remove it from the engine bay.

Step 5: Route the new belt

• Route the new belt exactly like the diagram/sticker (or your photo), leaving one upper, easy-to-reach pulley for last.
• Make sure the belt ribs sit fully into the grooved pulleys; check by feel and with a flashlight.
• If it won’t go on, it’s routed wrong.

Step 6: Reapply tension and final seating check

• Use the 14mm socket and 3/8" ratchet to rotate the tensioner again.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Use a flashlight to confirm the belt is centered on every pulley and fully seated in every groove.

Step 7: Reinstall shields/wheel (if removed)

• Reinstall the splash shield/undercover using the flat trim clip tool (replace broken clips).
• Reinstall the wheel using a 21mm socket and 1/2" breaker bar.
• Lower the vehicle using the floor jack, then tighten lug nuts evenly in a star pattern: Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Start your CX-5 and let it idle for 30–60 seconds while you listen for squeal/slap noises.
• With the engine off, do a final visual check that the belt is still centered on all pulleys.
• If you hear squealing, shut it off and re-check routing and seating (most squeal is misalignment/routing).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $155-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
