🔧 Forester - Serpentine Belt Replacement

The serpentine belt (accessory drive belt) spins your A/C compressor and alternator. Replacing it is mostly about relieving tension with the belt tensioner, swapping the belt, then verifying the belt is seated correctly on every pulley.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot pulleys can burn you.
• ⚠️ Keep fingers and clothing away from pulleys at all times.
• ⚠️ Do not start the engine with tools in the belt area.
• ⚠️ If you raise the front, support it with jack stands; never rely on a jack.
• ⚠️ Battery disconnect is not required, but keep the key/fob away so the engine can’t be started accidentally.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm socket
• 3/8" ratchet
• 3/8" breaker bar
• 10mm socket
• Flat trim clip tool
• Needle-nose pliers
• Flashlight
• Torque wrench (5-80 Nm range)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Replacement plastic push-clips (undertray/splash shield) - Qty: 4-10

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels with wheel chocks.
• 📸 Take a clear photo of the belt routing before removal (your phone photo is your “routing diagram”).
• 🧰 If access from the top is tight, plan to remove the front undertray using a flat trim clip tool and 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove covers for access

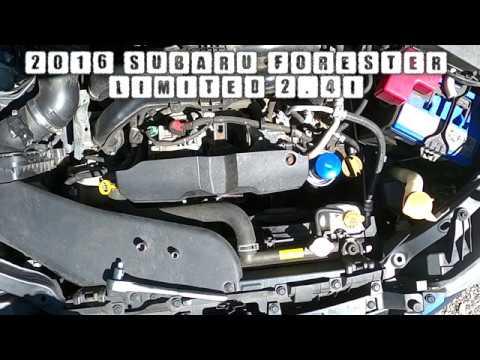

• Open the hood and use a flashlight to locate the belt and pulleys at the front of the engine.
• If your A/C duct/snorkel blocks access, remove its fasteners with a 10mm socket and release clips using needle-nose pliers.
• If needed, raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum), then remove the undertray using a 10mm socket and flat trim clip tool.

Step 2: Identify the belt tensioner and how it works

• Find the belt tensioner (a spring-loaded arm with a pulley). It keeps the belt tight automatically.
• You will rotate the tensioner using a 14mm socket on the tensioner’s hex/bolt point, then slide the belt off one pulley.
• Spring tension is strong—hold tools firmly.

Step 3: Relieve tension and remove the old belt

• Install a 14mm socket on a 3/8" breaker bar.
• Place the socket on the tensioner’s hex/bolt point and rotate the tensioner to relieve belt tension.
• While holding the tensioner rotated, slide the belt off the easiest-to-reach smooth pulley (often the tensioner pulley or idler pulley) using your free hand.
• Slowly release the tensioner back to its resting position (do not let it snap back).
• Remove the belt completely and compare it to the new belt length and rib count.

Step 4: Inspect pulleys before installing the new belt

• Spin each pulley by hand (engine off). They should spin smoothly and quietly.
• Check for wobble or rough/grinding feel; that indicates a failing pulley bearing.
• Wipe obvious dirt/oil off the pulley grooves using a clean rag (no tools required).

Step 5: Route the new belt correctly

• Route the new belt around the pulleys following your photo/underhood diagram.
• Make sure the ribbed side sits in ribbed pulley grooves, and the smooth side rides on smooth pulleys.
• Leave the easiest pulley for last (so you can slip it on while the tensioner is rotated).
• If one rib is off, it will shred quickly.

Step 6: Apply tension and seat the belt

• Use the 14mm socket with the 3/8" breaker bar to rotate the tensioner again.
• Slide the belt onto the last pulley while holding tensioner rotated.
• Slowly release the tensioner so it applies tension to the belt.
• Double-check belt seating on every pulley with a flashlight (look at the belt edges—no overhang).

Step 7: Reinstall removed parts

• Reinstall any snorkel/ducting using a 10mm socket and clips with needle-nose pliers.
• If removed, reinstall the undertray using a 10mm socket and new push-clips as needed.
• If you loosened any fasteners beyond “snug,” use a torque wrench (5-80 Nm range) and Torque to factory specification.

---

✅ After Repair

• 🔎 Before starting, do one last visual check that the belt is fully seated on every pulley.
• 🚗 Start the engine and watch the belt for 15-30 seconds; it should run centered with no wandering.
• 👂 Listen for squeal, chirping, or grinding. Shut off immediately if the belt walks off a pulley.
• ❄️ Turn A/C on and confirm normal charging/idle behavior (no warning lights).

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
