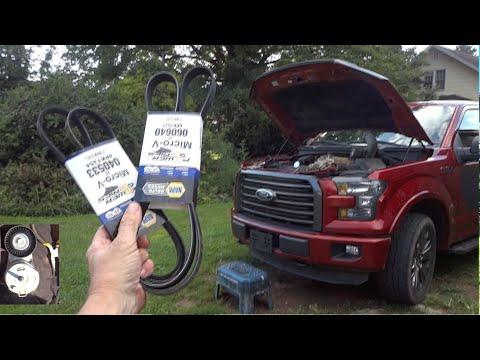

🔧 F-150 - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator and A/C compressor. On your F-150, replacement is straightforward, but belt routing and tensioner control need to be done carefully to avoid damage or misrouting.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hours

---

⚠️ Safety & Precautions

• Work with the engine completely off and cool.
• Keep fingers, clothing, and tools clear of the belt path.
• Do not start the engine with the belt partially installed.
• Battery disconnect is not required for this repair.
• Take a belt-routing photo first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive ratchet
• 15mm socket
• Breaker bar
• Flashlight
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool down fully.
• Open the hood and locate the belt routing decal if present.
• Take a clear photo of the current belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Inspect the belt routing

• Open the hood and look at the belt path around the pulleys.
• If a routing label is present, use it as your guide.
• One photo can save a lot of frustration.

Step 2: Release belt tension

• Use a 15mm socket on a 3/8-inch drive ratchet or breaker bar to rotate the belt tensioner clockwise.
• This relieves tension so the belt can be removed.
• Keep a firm grip on the tool because the tensioner is spring-loaded.

Step 3: Remove the old belt

• While holding the tensioner released, slide the belt off one easy-to-reach pulley.
• Slowly release the tensioner with the 15mm socket.
• Remove the belt from the remaining pulleys by hand.

Step 4: Compare the new belt

• Lay the new belt next to the old one and make sure the length matches.
• Check that the ribs and width look the same.
• If it does not match, stop before installation.

Step 5: Route the new belt

• Start the belt around the lower pulleys first, then work upward.
• Keep the belt ribs fully seated in each grooved pulley.
• Leave one smooth pulley for last so you can slip the belt on more easily.
• Make sure every rib sits in a groove.

Step 6: Install the belt on the final pulley

• Use the 15mm socket and breaker bar again to rotate the tensioner.
• Slip the belt onto the last pulley while the tension is held off.
• Slowly release the tensioner.

Step 7: Verify belt seating

• Inspect every pulley and confirm the belt is centered and fully seated.
• Check that the belt is not twisted anywhere.
• Confirm the tensioner arm is within its normal operating range.

Step 8: Start and test

• Start the engine and watch the belt for 30-60 seconds.
• Listen for squealing, chirping, or slapping noises.
• If the belt walks off-center, shut the engine off immediately and recheck routing.

---

✅ After Repair

• Recheck belt alignment after a short test drive.
• Inspect for unusual noises with the engine idling.
• Make sure the belt is still seated after the engine reaches operating temperature.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $115-$210 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hours.

---
