🔧 Transit Connect - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator and A/C compressor. Replacing it fixes belt squeal, cracking, glazing, or a belt that’s been contaminated with oil/coolant.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine—belts and pulleys can burn you.
• 🛑 Keep fingers/clothes clear of pulleys at all times.
• 🛑 Support the van with jack stands before going underneath—never rely on a jack.
• 🛑 No battery disconnect is required, but keep the key away from the vehicle so it can’t crank accidentally.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2-inch drive breaker bar
• 15mm socket
• 3/8-inch drive ratchet
• Socket extension set (3-inch and 6-inch)
• Torx T25 screwdriver
• Trim clip removal tool
• Flashlight
• Belt routing diagram printout

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Serpentine belt tensioner assembly - Qty: 1 (recommended if noisy/weak)
• Serpentine belt idler pulley - Qty: 1 (recommended if noisy)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Take a photo of the belt routing or copy the routing diagram (often on a sticker under the hood).
• Tip: If no sticker, sketch the routing now.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

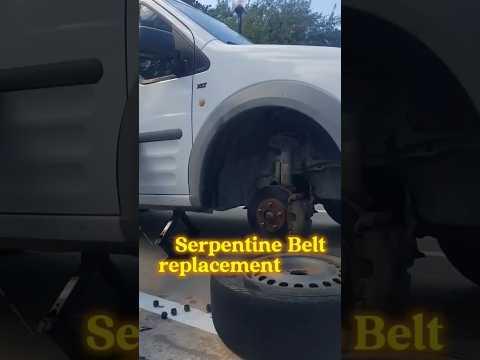

Step 1: Raise the front-right and remove the wheel

• Use a 19mm socket to loosen the front-right lug nuts 1/2 turn while on the ground.
• Lift the front-right using a floor jack (rated 2-ton minimum), then set it securely on jack stands (rated 2-ton minimum).
• Remove the lug nuts with the 19mm socket and take the wheel off.

Step 2: Remove the right-front splash shield (access panel)

• Use a Torx T25 screwdriver to remove the screws holding the splash shield.
• Use a trim clip removal tool to pop out any plastic push-clips.
• Pull the shield back to expose the belt and pulleys. Use a flashlight to see the routing clearly.

Step 3: Release belt tension

• Locate the belt tensioner (a spring-loaded arm with a pulley). A tensioner is a part that keeps the belt tight automatically using a strong spring.
• Install a 15mm socket on the tensioner’s hex fitting/bolt head and attach a 1/2-inch drive breaker bar.
• Rotate the tensioner to relieve tension (it will feel strong). Hold it in the released position.
• Tip: Move slowly—spring tension snaps back hard.

Step 4: Remove the old belt

• While holding the tensioner released with the breaker bar, slide the belt off the easiest-to-reach smooth pulley first (often the alternator or an idler).
• Carefully let the tensioner return to its resting position—do not let it slam.
• Remove the belt fully and compare it to the new belt for length and rib count.

Step 5: Inspect pulleys and tensioner

• Spin each pulley by hand. It should spin smoothly and quietly.
• If you feel roughness, wobble, or hear grinding, plan to replace the noisy pulley/tensioner (listed in Parts).
• Check for oil/coolant leaks that could ruin the new belt.

Step 6: Install the new belt (route it correctly)

• Route the new belt around the pulleys following your diagram/under-hood label.
• Make sure the ribbed side sits fully in the grooves of ribbed pulleys.
• Leave one easy-to-reach pulley for last (usually a smooth idler).
• Tip: If it won’t slip on, routing is likely wrong.

Step 7: Apply tension and seat the belt

• Use the 15mm socket and 1/2-inch drive breaker bar to rotate the tensioner again.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Visually verify the belt is centered on every pulley. Use a flashlight to confirm no rib is hanging off.

Step 8: Reinstall splash shield and wheel

• Reinstall the splash shield using the Torx T25 screwdriver and trim clip removal tool.
• Reinstall the wheel and hand-thread the lug nuts.
• Lower the van off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using the 19mm socket: Torque to 135 Nm (100 ft-lbs).

Assumption: Your Transit Connect uses a spring-loaded tensioner with a 15mm hex to release tension (common on the 1.6L setup).

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds while you watch the belt track.
• Listen for chirping/squealing. If present, shut off and recheck belt seating and routing.
• Turn A/C on and headlights on to load the belt and confirm it runs smoothly.
• Recheck the lug nut torque after a short drive: Torque to 135 Nm (100 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $110-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
