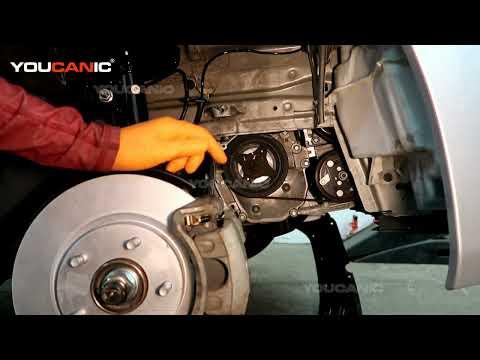

🔧 Sentra - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator and air conditioning compressor. On your Sentra, the job is usually straightforward, but access is tighter than on some cars, so taking the right side wheel and splash shield off helps a lot.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work with the engine fully off and cool.
• Keep hands clear of the belt path while the tensioner is loaded.
• If you raise the car, support it with jack stands; never rely on a jack alone.
• Disconnecting the battery is not required for this repair.
• Take a quick photo of the belt routing first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm wrench
• Serpentine belt tool (specialty)
• Floor jack (rated 3-ton minimum)
• Jack stands
• 21mm socket
• Ratchet
• Trim clip removal tool
• Flashlight
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key/fob from the car.
• If you need more access, loosen the right front wheel lug nuts before lifting the car.
• Raise the right front corner and support it with jack stands if removing the wheel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Make room for access

• Use the 21mm socket and ratchet to remove the right front wheel if needed for access.
• Use the trim clip removal tool to remove the lower splash shield clips.
• Pull the shield aside to expose the belt area.

Step 2: Note the belt routing

• Use a flashlight to trace the belt around each pulley.
• Take a picture or sketch the routing before removing it.
• Routing mistakes are the most common error.

Step 3: Release belt tension

• Use the 14mm wrench or serpentine belt tool (specialty) on the belt tensioner.
• Rotate the tensioner to relieve belt tension.
• Slide the belt off one easy-to-reach pulley, then slowly release the tensioner.

Step 4: Remove the old belt

• Work the belt off the remaining pulleys by hand.
• Inspect each pulley for roughness, wobble, or oil contamination.
• If a pulley feels gritty or loose, stop and address that first.

Step 5: Install the new belt

• Route the new belt around all pulleys except one smooth access point for the last step.
• Use the 14mm wrench or serpentine belt tool (specialty) to rotate the tensioner again.
• Slip the belt fully onto the final pulley, then slowly release the tensioner.
• Make sure every rib sits cleanly in every pulley groove.

Step 6: Verify alignment

• Use your eyes and a flashlight to check the belt on each pulley.
• Look for one belt edge riding high or twisted ribs.
• Double-check before starting the engine.

Step 7: Reassemble access parts

• Reinstall the splash shield with the trim clip removal tool.
• Reinstall the wheel using the 21mm socket and ratchet.
• Lower the car and tighten the lug nuts in a star pattern.

---

✅ After Repair

• Start the engine and watch the belt for smooth tracking.
• Listen for squealing, chirping, or slapping noises.
• Turn the steering wheel and switch the A/C on to confirm accessory operation.
• Shut the engine off and recheck belt alignment after a short test run.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
