🔧 Escape - Serpentine Belt Replacement

Your Escape’s serpentine belt drives accessories like the alternator and A/C. Replacing it is mostly about getting access through the right-front wheel well and safely releasing the spring-loaded belt tensioner.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; turbo/engine bay parts can burn you.
• ⚠️ Support your Escape with jack stands; never rely on a floor jack.
• ⚠️ Keep fingers clear of the belt and pulleys when releasing the tensioner (it’s spring-loaded).
• ⚠️ If you remove the wheel, Torque lug nuts to 135 Nm (100 ft-lbs).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive ratchet
• 7mm socket
• 8mm socket
• Trim clip removal tool
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Fender liner/splash shield clips - Qty: 1 set

---

📋 Before You Begin

• Park your Escape on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and look for the belt routing diagram (often on a label near the radiator support). If it’s missing, take a clear photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the right-front corner and remove the wheel

• Use a 19mm socket to slightly loosen the right-front lug nuts.
• Lift the right-front using a floor jack (rated 3-ton minimum) at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• Remove the lug nuts using the 19mm socket and remove the wheel.

Step 2: Remove the right-front wheel well splash shield (access panel/liner area)

• Use a 7mm socket and 8mm socket to remove any small screws holding the liner/splash shield section.
• Use a trim clip removal tool to pop out the plastic push-clips (these are the little “pins” that hold panels on).
• Pull the liner/splash shield section back enough to clearly see the belt, pulleys, and belt tensioner.
• Tip: A flashlight makes belt routing easier.

Step 3: Release belt tension

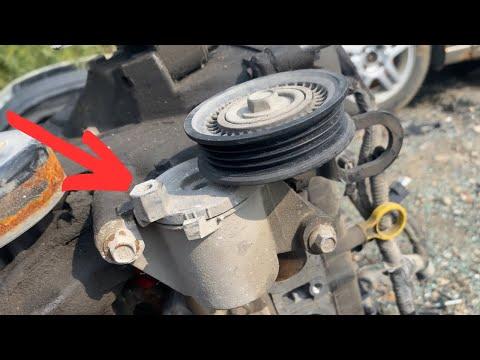

• Locate the belt tensioner (spring-loaded arm with a pulley). It has a square drive opening for a tool.
• Insert a 1/2" drive breaker bar into the square drive on the tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off one easy-to-reach pulley.
• Slowly let the tensioner return to its resting position while holding the 1/2" drive breaker bar.

Step 4: Remove the old belt

• Pull the belt out of the remaining pulleys by hand through the wheel well opening.
• Inspect pulleys for wobble or roughness by spinning them by hand (engine OFF). If any feel gritty or loose, stop and tell me which pulley it is.

Step 5: Route and install the new belt

• Compare the new belt to the old one (same length and rib count).
• Route the belt following the under-hood belt routing diagram (or your photo).
• Make sure the ribbed side of the belt sits fully in the ribbed pulleys, and the smooth side sits on smooth pulleys.
• Use the 1/2" drive breaker bar to rotate the tensioner again, slip the belt onto the last pulley, then slowly release the tensioner.
• Tip: If it “walks” off, it’s misrouted.

Step 6: Reinstall splash shield and wheel

• Reposition the liner/splash shield and reinstall screws using a 7mm socket and 8mm socket.
• Reinstall any push-clips using the trim clip removal tool (and your hands to press them in).
• Reinstall the wheel and hand-thread the lug nuts.
• Lower the vehicle off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a 19mm socket: Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• Before starting, double-check the belt is centered on every pulley.
• Start the engine and watch the belt for 30-60 seconds. It should run smoothly with no wandering or squealing.
• If you hear chirping/squeal, shut it off and re-check belt routing and belt seating in the ribs.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $30-$80 (parts only)

You Save: $150-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
