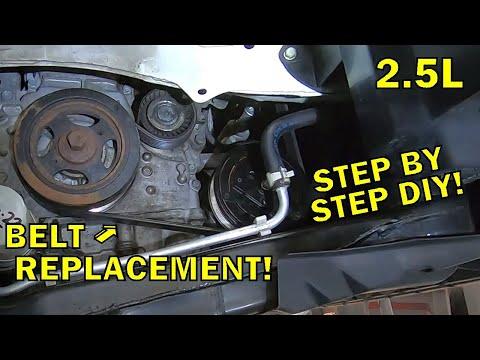

🔧 Altima - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator and A/C. If it’s cracked, squealing, or slipping, replacing it prevents loss of charging and overheating issues on your Altima.

Difficulty Level: Intermediate | Estimated Time: 0.75-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of pulleys/fans.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers out of pinch points when rotating the belt tensioner (it’s spring-loaded).
• ⚠️ No battery disconnect is required, but keep the key off and engine off the entire time.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive ratchet
• 14mm socket
• 10mm socket
• Trim clip removal tool
• Flashlight
• Torque wrench (10-150 ft-lb range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Lower splash shield clips (as needed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and find the belt routing diagram (often on a sticker). If it’s missing, take a clear photo of the current routing before removal.
• Take a quick phone photo—saves headaches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the right-front wheel lug nuts

• Use a 21mm socket and 1/2" drive breaker bar to loosen the lug nuts about 1 turn while the tire is still on the ground.

Step 2: Raise and support the right-front corner

• Lift the right-front with a floor jack (rated 2-ton minimum).
• Place jack stands (rated 2-ton minimum) under a solid jacking/support point and lower the car onto the stands.
• Remove the wheel using a 21mm socket and 1/2" drive ratchet.

Step 3: Remove the lower splash shield (access panel)

• Use a trim clip removal tool to pop out plastic clips (a trim clip tool is a forked pry tool that removes push-clips without breaking them).
• Use a 10mm socket and 1/2" drive ratchet to remove any 10mm bolts holding the shield.
• Use a flashlight to clearly see the belt and tensioner area.

Step 4: Relieve belt tension using the automatic tensioner

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Install a 14mm socket on the tensioner’s hex/bolt head.
• Use a 1/2" drive breaker bar to rotate the tensioner to relieve tension, then hold it steady.
• Move it slowly—spring tension is strong.

Step 5: Slip the belt off one pulley and remove it

• While holding the tensioner rotated with the breaker bar, slide the belt off an easy-to-reach top pulley (commonly the alternator pulley) by hand.
• Slowly release the tensioner back to its resting position (do not let it snap back).
• Remove the belt from the remaining pulleys and take it out from below.

Step 6: Route the new belt (match the diagram)

• Compare the old and new belt length and rib count before installing.
• Route the new belt around the pulleys following the under-hood diagram.
• Make sure the ribbed side sits in grooved pulleys, and the smooth side runs on smooth pulleys.
• Each rib must sit perfectly in its groove.

Step 7: Apply tension and seat the belt fully

• Rotate the tensioner again using the 14mm socket and 1/2" drive breaker bar.
• Slip the belt over the last pulley, then slowly release the tensioner.
• Use a flashlight to check the belt is centered on every pulley and not hanging off an edge.

Step 8: Reinstall the splash shield and wheel

• Reinstall the splash shield using the 10mm socket and trim clip removal tool (replace broken clips if needed).
• Reinstall the wheel and snug the lug nuts with a 21mm socket and 1/2" drive ratchet.
• Lower the car, then use a torque wrench (10-150 ft-lb range) to tighten lug nuts in a star pattern: Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 30–60 seconds (from a safe distance).
• Listen for chirping/squealing; shut off immediately if the belt walks off a pulley.
• Turn A/C on and headlights on to confirm normal operation and no belt noise.
• Recheck belt alignment once more after a short 5–10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
