🔧 CX-5 - Serpentine Belt Replacement

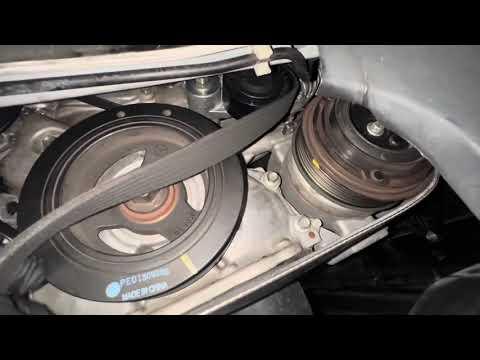

On your CX-5, the serpentine belt drives accessories like the alternator and A/C compressor. Replacement is straightforward, but the exact tensioner setup can vary, and I want to give you the correct tool size and exact bolt torque specs for your configuration.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• 🧤 Keep hands clear of pulleys; no loose clothing or jewelry.
• 🛑 Work on a cool engine; hot pulleys and exhaust parts can burn you.
• 🧱 If you raise the front, support it with jack stands (never a jack alone).
• 🔋 Battery disconnect is not required, but keep tools away from the alternator electrical post.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Bright flashlight
• Phone camera
• Trim clip removal tool
• Metric socket set 8mm-19mm
• Metric wrench set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive extension set
• Torque wrench 10-100 Nm
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, transmission in gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Use a flashlight to locate the belt routing diagram (often on the radiator support/underhood area). If it’s missing or unreadable, we’ll recreate the routing.
• Two quick questions so I can give exact tool size + torque specs:
  • Upload a clear photo of the belt area from above (show the tensioner and any sticker/diagram).
  • Upload a photo of the belt routing label (or confirm it’s missing).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Pause here so I can match your tensioner and specs

• Once you send the two photos above, I’ll give you the exact step-by-step with the correct wrench/socket size for the tensioner, belt routing, and all required torque specs for any fasteners you remove.

---

✅ After Repair

• Visually confirm the belt is centered on every pulley groove.
• Start the engine and watch the belt for 20-30 seconds; it should run smooth with no hopping or squeal.
• Recheck belt alignment after a short 5-minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $120-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
