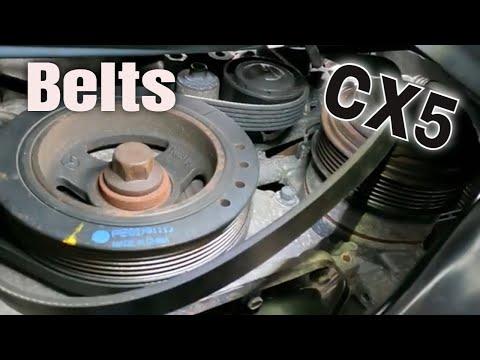

🔧 CX-5 - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator and A/C compressor. If it’s cracked, glazed, squealing, or slipping, replacing it prevents charging problems and overheating.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• 🧤 Work on a cool engine; keep hands clear of pulleys and fans.
• 🧯 Support your CX-5 with jack stands; never rely on a jack alone.
• 🔌 Do not start the engine with fingers/tools near the belt path.
• ⚠️ If you remove the wheel, re-torque lug nuts correctly after.
• 🔋 Battery disconnect is not required for this job, but remove the key and keep it away from the car.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 1/2" breaker bar
• 3/8" ratchet
• 3/8" torque wrench
• 10mm socket
• Flat trim clip tool
• 14mm socket
• 17mm socket
• 3/8" drive serpentine belt tool (specialty)
• Flashlight
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Plastic splash shield clips - Qty: 2-6

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔦 Use a flashlight and locate the belt routing diagram (usually on a sticker under the hood). If it’s missing, take a clear photo of the belt routing before removal.
• 🖊️ Use a paint marker to mark the “smooth side” and “ribbed side” direction on the old belt as a quick reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front-right corner safely

• Place wheel chocks behind the rear wheels.
• Use a floor jack (rated 2-ton minimum) to lift the front-right jack point.
• Set the vehicle onto jack stands (rated 2-ton minimum).

Step 2: Remove the front-right wheel

• Use a 21mm socket and 1/2" breaker bar to loosen and remove the lug nuts.
• Remove the wheel and set it aside.
• Reinstall later and Torque to 108 Nm (80 ft-lbs) using a 3/8" torque wrench.

Step 3: Remove the right-side lower splash shield (access panel)

• Use a 10mm socket to remove small bolts (if equipped).
• Use a flat trim clip tool to pop out plastic clips (a clip tool is a pry tool made for push-pins).
• Pull the splash shield back to expose the belt and tensioner area.

Step 4: Relieve belt tension (automatic tensioner)

• Locate the belt tensioner. It’s a spring-loaded arm with a pulley.
• Put a 14mm socket or 17mm socket (whichever fits your tensioner’s hex/bolt head) on the tensioner drive point.
• Use a 3/8" ratchet or 3/8" drive serpentine belt tool (specialty) and rotate the tensioner to relieve belt tension.
• Hold tensioner steady; don’t let it snap back.

Step 5: Remove the old belt

• While holding the tensioner released, slide the belt off the nearest easy-to-reach pulley.
• Slowly return the tensioner to its resting position.
• Remove the belt fully and compare it to the new one (same length and rib count).

Step 6: Route the new belt

• Using the under-hood routing diagram (or your photo), route the new belt around all pulleys except one easy pulley last.
• Make sure the ribbed side sits perfectly in the grooved pulleys and the smooth side sits on smooth pulleys.
• Use a flashlight to check the belt is centered on every pulley.

Step 7: Apply tension and seat the belt

• Rotate the tensioner again using the 14mm socket or 17mm socket and a 3/8" ratchet or 3/8" drive serpentine belt tool (specialty).
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Re-check belt alignment on every pulley with a flashlight.

Step 8: Reinstall the splash shield and wheel

• Reposition the splash shield and reinstall clips using the flat trim clip tool.
• Reinstall any bolts using a 10mm socket.
• Install the wheel and hand-start lug nuts, then snug with a 21mm socket.
• Lower the vehicle and Torque to 108 Nm (80 ft-lbs) using a 3/8" torque wrench.

---

✅ After Repair

• 🔍 Before starting, do one last visual check: belt fully seated in every groove.
• 🚗 Start the engine and watch the belt for 15–30 seconds (keep hands clear). It should run smoothly with no wobble.
• 👂 Listen for chirping/squeal. If you hear it, shut off the engine and re-check belt alignment.
• 🧾 Recheck lug nut torque after a short drive if you removed the wheel.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $120-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
