🔧 Malibu - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator and A/C compressor. If it’s cracked, noisy, glazed, or slipping, replacing it prevents charging problems and overheating.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before working near the belt path.
• ⚠️ Keep fingers, hair, and clothing away from pulleys at all times.
• ⚠️ Support the car with jack stands; never rely only on a floor jack.
• ⚠️ Do not start the engine until all tools are removed from the engine bay.
• ⚠️ Battery disconnect is not required, but keep the key away from the vehicle so nobody can start it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench
• 15mm combination wrench
• Serpentine belt tool (specialty)
• 7mm socket
• 10mm socket
• Ratchet (3/8" drive)
• Trim clip removal tool
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Engine splash shield fastener clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have a belt routing diagram ready: use the under-hood sticker if present, or take a clear photo of the belt routing with your phone before removal.
• Know your tools: a serpentine belt tool is a long, thin handle that reaches the tensioner from the wheel well.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the right-front corner

• Use a 19mm socket and 1/2" breaker bar to loosen the right-front wheel lug nuts 1/2 turn (don’t remove yet).
• Use a floor jack to lift at the right-front jacking point, then place jack stands under the proper support point.
• Remove the wheel using the 19mm socket.
• When reinstalling later, Torque to 140 Nm (103 ft-lbs) using a torque wrench.

Step 2: Remove the right-front splash shield (inner fender access)

• Use a 7mm socket and ratchet to remove the small screws holding the splash shield section near the belt area (if equipped).
• Use a trim clip removal tool to pop out any plastic push-clips without breaking them.
• If there are bolts, use a 10mm socket and ratchet to remove them.
• Pull the shield back enough to clearly see the belt and the tensioner pulley.
• Tip: Keep screws/clips in a cup.

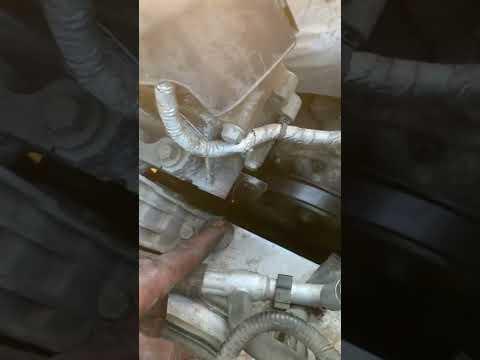

Step 3: Locate the belt tensioner

• Use a flashlight to find the tensioner (spring-loaded arm with a small pulley).
• Look for the 15mm hex on the tensioner arm. This is where you’ll rotate it to release belt tension.

Step 4: Release belt tension

• Place a 15mm combination wrench or serpentine belt tool (specialty) on the tensioner hex.
• Rotate the tensioner smoothly to relieve tension (it will feel strong because it’s spring-loaded).
• While holding the tensioner rotated, use your free hand to slip the belt off the easiest-to-reach pulley (often the alternator or top idler, depending on access).
• Slowly let the tensioner return to its resting position. Do not let it snap back.

Step 5: Remove the old belt

• Pull the belt out through the wheel well opening.
• Inspect pulleys using a flashlight:
  • Check for wobble, rough spinning, or missing ribs on any pulley.
  • If a pulley feels gritty or noisy, the belt may not be the only issue.

Step 6: Route the new belt correctly

• Compare the new belt to the old one (length and rib count should match).
• Route the belt around the pulleys following your routing photo/diagram.
• Make sure the ribbed side sits in the ribbed pulleys, and the smooth side rides on smooth pulleys.
• Use a flashlight to confirm the belt is fully seated in every pulley groove.
• Tip: Leave the easiest pulley for last.

Step 7: Apply tension and finish installation

• Use the 15mm combination wrench or serpentine belt tool (specialty) to rotate the tensioner again.
• Slip the belt onto the last pulley while holding the tensioner rotated.
• Slowly release the tensioner back onto the belt.
• Re-check belt alignment on every pulley with a flashlight.

Step 8: Reinstall splash shield and wheel

• Reposition the splash shield and install screws using a 7mm socket and ratchet.
• Install any bolts using a 10mm socket and ratchet.
• Reinstall push-clips using your hands or the trim clip removal tool to align them first.
• Reinstall the wheel using a 19mm socket, lower the car with the floor jack, then Torque to 140 Nm (103 ft-lbs) using a torque wrench.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds while you watch the belt path (keep hands/tools away).
• Listen for chirping/squealing. If heard, shut it off and re-check belt seating on each pulley.
• Turn A/C on and headlights on briefly; confirm no belt slip noise.
• After a short test drive, re-check visually that the belt is still centered on each pulley.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $30-$80 (parts only)

You Save: $120-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
