🔧 Corolla - Serpentine Belt Replacement

The serpentine belt (also called the drive belt) spins key accessories like the alternator and A/C. On your Corolla, the belt is kept tight by an automatic tensioner, so the job is mainly about safely releasing tension, swapping the belt, and confirming it’s routed correctly.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a level surface and use jack stands—never rely on a jack alone.
• 🔥 Let the engine cool; the radiator and exhaust area can burn you.
• 👕 Keep hands/clothes clear of moving parts; never check belt alignment with the engine running near your fingers.
• 🔋 Battery disconnect is not required, but keep the key out of the ignition while your hands are near the belt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 3/8" drive extension (6")
• 10mm socket
• 14mm box-end wrench
• Flashlight
• Trim clip removal tool
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Engine undercover / splash shield clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Neutral, set the parking brake, and place wheel chocks behind the rear wheels.
• Use your flashlight to find the belt routing diagram (often on the radiator support/underhood area). If you don’t see one, take a clear photo of the current belt routing before removal.
• Taking a picture prevents rerouting mistakes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the right-front corner safely

• Use a 21mm socket and 1/2" breaker bar to slightly loosen the right-front wheel lug nuts (about 1/4 turn).
• Use a floor jack to lift the right-front corner at the proper jacking point.
• Set the car down onto jack stands.

Step 2: Remove the right-front wheel

• Use a 21mm socket and 1/2" breaker bar to remove the lug nuts, then remove the wheel.
• When reinstalling later: Torque to 103 Nm (76 ft-lbs) using a torque wrench (have a shop torque-check if you don’t own one yet).

Step 3: Open the access area (splash shield)

• Use a 10mm socket and 3/8" drive ratchet to remove any 10mm bolts holding the right-side splash shield/liner section.
• Use a trim clip removal tool to pop out plastic clips. (A trim clip tool is a forked pry tool that removes plastic fasteners without breaking them.)
• Fold the liner back enough to clearly see the belt and tensioner.

Step 4: Release belt tension

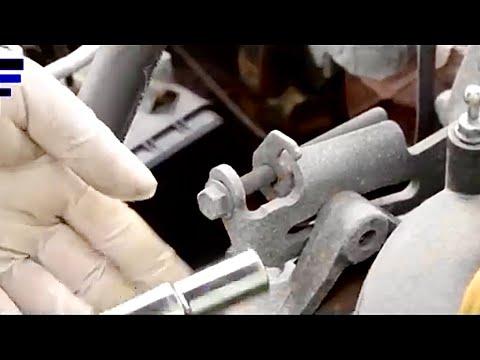

• Locate the automatic belt tensioner (spring-loaded arm with a pulley).
• Place a 14mm box-end wrench on the tensioner’s hex/bolt head and rotate the tensioner to relieve belt tension.
• While holding the tensioner released, slide the belt off one pulley (usually easiest at the alternator or A/C pulley), then slowly let the tensioner return.
• Move slowly—spring tension is strong.

Step 5: Remove the old belt and compare

• Pull the belt out through the wheel-well opening by hand.
• Lay the old and new belt side-by-side to confirm similar length and rib count.
• Check pulleys with your hand for obvious wobble or roughness (don’t force-spin anything aggressively).

Step 6: Install the new belt (route it correctly)

• Route the new belt around the pulleys to match the underhood diagram or the photo you took.
• Make sure the belt ribs sit fully in the grooves on every grooved pulley.
• Leave the easiest pulley for last (often the alternator or A/C pulley) so you can slip the belt on while the tensioner is released.

Step 7: Apply tension and verify alignment

• Use the 14mm box-end wrench to rotate the tensioner again, slip the belt fully onto the last pulley, then slowly release the tensioner.
• Use a flashlight to confirm the belt is centered on every pulley and not riding on an edge.
• If it’s off by one rib, fix it now.

Step 8: Reinstall splash shield and wheel

• Reposition the liner and install clips by hand, then tighten fasteners using a 10mm socket and 3/8" ratchet.
• Reinstall the wheel and hand-thread lug nuts first, then snug them using a 21mm socket.
• Lower the car using the floor jack, remove jack stands, then lower fully.
• Final tighten the lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 15-30 seconds from a safe distance—look for smooth tracking with no hopping or squeal.
• Turn the A/C on and headlights on to add load; confirm no belt noise.
• Shut the engine off and recheck that the belt ribs are still seated correctly.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $20-$60 (parts only)

You Save: $100-$190 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
