🔧 Camry - Serpentine Belt Replacement

The serpentine belt (also called the drive belt) spins key accessories on your Camry. Replacing it prevents squealing, slipping, and sudden loss of accessory drive if the belt cracks or breaks.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: Stock belt drive with automatic spring tensioner.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before working near the belt area.
• ⚠️ Keep fingers, hair, and clothing away from pulleys at all times.
• ⚠️ Hybrid safety: do not touch orange high-voltage cables/connectors.
• ⚠️ Support the car with jack stands before going under or removing a wheel.
• ⚠️ Battery disconnect is not required for this job, but keep the key far away so the system can’t go READY unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• 3" extension (3/8" drive)
• Trim clip removal tool
• Torque wrench (10-150 ft-lbs)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (drive belt, V-ribbed) - Qty: 1
• Plastic splash shield clips - Qty: 2-6

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and chock the rear wheels.
• Make sure the hybrid system is OFF and the key fob is kept away from the car.
• Take a quick photo of the belt routing before removal (your phone is your best “diagram”).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front-right corner safely

• Place wheel chocks behind the rear wheels.
• Use a 21mm socket and breaker bar to loosen the front-right lug nuts 1/2 turn (do not remove yet).
• Lift the front-right with a floor jack and set the car on jack stands.
• Remove the wheel using the 21mm socket.
• Reinstall lug nuts later: Torque to 103 Nm (76 ft-lbs)

Step 2: Remove the right-side splash shield for access

• Use a 10mm socket to remove splash shield screws/bolts.
• Use a trim clip removal tool to pop out plastic clips (a clip tool is a small forked pry tool that removes push-clips without breaking them).
• Pull the shield back to expose the belt, pulleys, and tensioner.

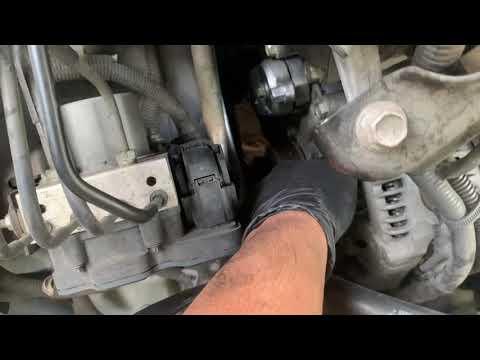

Step 3: Relieve belt tension

• Locate the automatic belt tensioner (spring-loaded arm with a pulley).
• Put a 19mm socket on the tensioner’s hex/bolt head.
• Use a breaker bar to rotate the tensioner to relieve tension.
• Hold steady—spring tension is strong.

Step 4: Remove the old belt

• While holding the tensioner released with the breaker bar, slide the belt off the easiest-to-reach pulley.
• Slowly let the tensioner return to its resting position (do not let it snap).
• Remove the belt fully and compare it to the new belt (length and rib count should match).

Step 5: Install the new belt (route it correctly)

• Route the new belt around the pulleys exactly like your photo.
• Make sure the belt ribs sit fully inside the grooves on ribbed pulleys (no ribs hanging off).
• Leave the easiest pulley for last.

Step 6: Apply tension and seat the belt

• Use the 19mm socket and breaker bar to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Visually check alignment on every pulley from the side.
• If it’s off by 1 rib, redo it.

Step 7: Reassemble splash shield and wheel

• Reinstall the splash shield using the 10mm socket and any clips you removed.
• Reinstall the wheel using the 21mm socket.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs)

---

✅ After Repair

• Start the car and listen: there should be no squeal, slap, or chirp.
• Let it idle for 30-60 seconds while you watch the belt from a safe distance (hands clear).
• Shut it off and re-check belt seating if you notice any noise.
• After a short test drive, do a final quick visual check for alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $110-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
