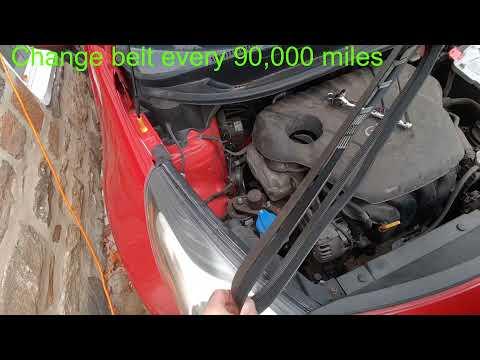

🔧 Rio - Serpentine Belt Replacement

The serpentine belt (also called the accessory drive belt) is the single belt that drives the alternator and other accessories. Replacing it restores proper charging and prevents squealing, cracking, or a sudden belt break that can leave you stranded.

Difficulty Level: Beginner | Estimated Time: 0.5–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands away from hot parts.
• ⚠️ Support the car with jack stands before going underneath.
• ⚠️ Keep fingers clear of the belt tensioner (spring-loaded arm that keeps belt tight).
• ⚠️ Do not start the engine until the belt is fully routed and seated in every pulley groove.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 10mm socket
• Ratchet (3/8" drive)
• 6" extension (3/8" drive)
• 17mm socket
• Torque wrench (10–150 ft-lbs)
• Trim clip remover
• Flashlight
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Fender liner/splash shield clips - Qty: 2–6

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the belt routing diagram (often on a sticker in the engine bay). If there’s no sticker, take a clear photo of the current belt routing.
• Take a quick picture before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front-right corner

• Use wheel chocks to secure the rear wheels.
• Use a 21mm socket with a breaker bar to slightly loosen the front-right wheel lug nuts (about 1/4 turn) while the tire is still on the ground.
• Lift the front-right corner with the floor jack (rated 2-ton minimum).
• Set the car onto jack stands (rated 2-ton minimum) at the proper support point.

Step 2: Remove the front-right wheel

• Use the 21mm socket to remove the lug nuts, then remove the wheel.
• After reinstalling later: Torque lug nuts to 88–108 Nm (65–80 ft-lbs) in a star pattern.

Step 3: Remove the splash shield/fender liner section for access

• Use a 10mm socket with a ratchet (3/8" drive) to remove the small bolts holding the access panel/splash shield near the belt area.
• Use a trim clip remover to pop out any plastic push-clips.
• Use a flashlight to confirm you can see the belt and the tensioner pulley.
• Bag the clips so none go missing.

Step 4: Relieve belt tension

• Install a 17mm socket on the belt tensioner’s hex (the tensioner is a spring-loaded arm that keeps the belt tight).
• Use the breaker bar to rotate the tensioner to relieve tension (move it smoothly and keep a firm grip—spring force is strong).
• While holding the tensioner rotated, slide the belt off the easiest-to-reach pulley using your free hand.

Step 5: Remove the old belt and compare

• Release the tensioner slowly with the breaker bar (do not let it snap back).
• Remove the belt from the remaining pulleys by hand.
• Lay the old belt next to the new one and confirm the length and rib count match.

Step 6: Route the new belt

• Route the new belt around the pulleys following the under-hood diagram (or your photo).
• Make sure the belt ribs sit fully in the grooved pulleys and the belt sits centered on any smooth pulleys.
• If one rib is off, fix it now.

Step 7: Apply tension and seat the belt

• Use the 17mm socket and breaker bar to rotate the tensioner again.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Use the flashlight to inspect every pulley: the belt must be fully seated and straight.

Step 8: Reinstall splash shield/fender liner and wheel

• Reinstall the splash shield/access panel using the 10mm socket, ratchet (3/8" drive), and trim clip remover for clips.
• Reinstall the wheel and hand-thread lug nuts.
• Lower the car off the jack stands using the floor jack.
• Use a torque wrench (10–150 ft-lbs) and 21mm socket to finish-tighten: Torque lug nuts to 88–108 Nm (65–80 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds while you watch the belt track (keep hands and clothing away from moving parts).
• Listen for chirping/squealing; if you hear it, shut off the engine and re-check belt seating in the grooves.
• After a short test drive, do a quick re-check for proper belt alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $150–$300 (parts + labor)

DIY Cost: $20–$60 (parts only)

You Save: $130–$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
