🔧 Wrangler - Serpentine Belt Replacement

The serpentine belt on your Wrangler drives key accessories like the alternator, power steering pump, and A/C compressor. Replacing it is mostly about safely relieving the spring-loaded belt tensioner, slipping the old belt off, and routing the new belt correctly.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot pulleys/belt can burn you.
• ⚠️ Keep fingers/tools clear of the tensioner and pulleys; the tensioner is spring-loaded and snaps back.
• ⚠️ Do not start the engine with hands or tools near the belt path.
• ⚠️ If you must reach near the cooling fan, keep the key out of the ignition so the engine can’t be started.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 15mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar (18"-24")
• 3" 3/8" drive extension
• Flat-blade screwdriver
• Work light
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (with A/C) - Qty: 1
• Serpentine belt (without A/C) - Qty: 1
• Belt tensioner assembly - Qty: 1 (optional, if noisy/weak)
• Idler pulley - Qty: 1 (optional, if noisy/rough)

---

📋 Before You Begin

• Park on level ground, transmission in neutral, and set the parking brake.
• Open the hood and locate the belt routing diagram (usually on the upper radiator support/under-hood label). If it’s missing, take a clear photo of the belt routing before removal.
• Pro tip: Sketch the routing on paper first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create working room (if needed)

• Use a flat-blade screwdriver to loosen the intake tube hose clamp(s) if they block access to the belt/tensioner.
• Use your hands to lift the intake tube slightly aside (do not force or crack plastic).
• Use a work light to clearly see the tensioner and belt routing.

Step 2: Locate the belt tensioner

• Find the belt tensioner (a spring-loaded arm with a smooth pulley). It keeps the belt tight automatically.
• Identify the 15mm hex on the tensioner arm/pivot used to rotate it.

Step 3: Relieve belt tension

• Install a 15mm socket on a 3/8" breaker bar (use a 3" extension if it helps your angle).
• Place the socket on the tensioner hex and rotate the tensioner to relieve tension.

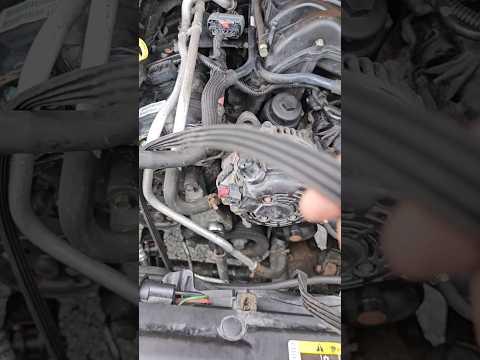

• Hold the tensioner in the released position. With your free hand, slide the belt off the easiest-to-reach upper pulley (commonly the alternator pulley).
• Slowly let the tensioner return to rest. Don’t let it snap back.

Step 4: Remove the old belt

• Pull the belt out of the remaining pulleys by hand.
• Use a work light to inspect the old belt for cracks, missing ribs, or glazing (shiny spots). This confirms replacement was needed.

Step 5: Inspect pulleys and tensioner before installing the new belt

• Spin each pulley by hand (alternator, idlers, tensioner pulley). They should spin smoothly and quietly.
• Wiggle each pulley by hand; there should be no looseness.
• If you feel grinding/roughness or hear squealing, plan to replace the noisy pulley or the tensioner assembly.

Step 6: Route the new belt

• Route the new belt around the pulleys following the under-hood routing diagram (or your photo).
• Make sure the belt ribs sit fully inside the grooved pulleys and the belt sits centered on smooth pulleys.
• Leave the belt off one easy upper pulley for last (again, commonly the alternator pulley).

Step 7: Apply tension and seat the belt

• Use the 15mm socket and 3/8" breaker bar to rotate the tensioner and create slack.
• Slip the belt onto the last pulley.
• Slowly release the tensioner so it applies tension to the belt.
• Use the work light to double-check every pulley: the belt must be fully seated and aligned.

Step 8: Reinstall anything you moved

• Reposition the intake tube if you moved it.
• Use the flat-blade screwdriver to snug the hose clamp(s).
• Do a final visual sweep for any tools left in the engine bay.

---

✅ After Repair

• Start the engine and let it idle for 20–30 seconds while you watch the belt track on the pulleys (from a safe distance).
• Listen for chirping/squealing. If you hear noise, shut it off and re-check belt seating and routing.
• Turn on the A/C (if equipped) and confirm normal operation with no belt noise.
• Recheck belt alignment one more time after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $115-$210 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
