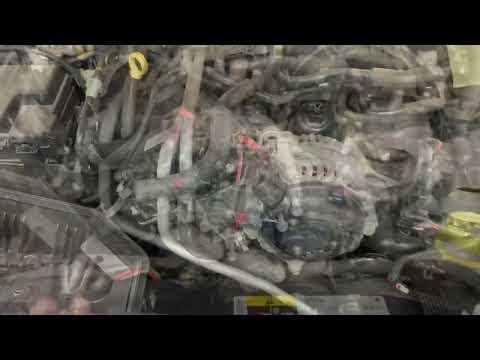

🔧 Wrangler - Serpentine Belt Replacement

The serpentine belt on your Wrangler drives key accessories like the alternator, power steering pump, A/C compressor, and water pump. Replacing it fixes squealing, cracking, glazing, or a worn belt that could snap and leave you stranded.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot pulleys can burn you.
• ⚠️ Keep fingers/clothing clear of the belt path and fan area.
• ⚠️ Do not start the engine until tools are removed from the bay.
• ⚠️ Battery disconnect is not required, but disconnecting the negative cable prevents accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Flashlight
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 15mm socket (serpentine belt tensioner)
• 8mm socket (air intake clamp)
• Flathead screwdriver
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (6-rib, Wrangler 3.6L) - Qty: 1
• Serpentine belt tensioner (optional, if noisy/weak) - Qty: 1
• Idler pulley (optional, if noisy/rough) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Locate the belt routing diagram on the radiator support/under-hood sticker. If it’s missing, take a clear photo of the current routing before removing the belt.
• If you choose to disconnect the battery: use a socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Make room to access the belt (if needed)

• Use an 8mm socket or flathead screwdriver to loosen the air intake tube clamp(s).
• If your intake duct/air box lid is held by clips, use a trim clip removal tool to release them.
• Move the intake tube/ducting slightly out of the way for better access to the belt tensioner. Don’t force plastic parts.

Step 2: Inspect the belt routing and pulleys

• Use a flashlight to confirm the belt routing matches the under-hood diagram.
• Visually check pulleys for wobble and the belt for cracks, missing ribs, fraying, or glazing (shiny surface).

Step 3: Release the automatic belt tensioner

• Install a 15mm socket on a 3/8" breaker bar.
• Place the socket on the tensioner’s hex and rotate the tensioner to relieve belt tension (it will feel spring-loaded).
• Automatic tensioner definition: it’s a spring-loaded arm that keeps the belt tight without manual adjustment.

Step 4: Remove the old serpentine belt

• While holding the tensioner rotated with the breaker bar, slide the belt off the easiest-to-reach smooth pulley using your free hand.
• Slowly release the tensioner back to its resting position (do not let it snap back).
• Pull the belt out of the engine bay.

Step 5: Route the new belt correctly

• Compare the new belt to the old one (length and rib count should match).
• Route the new belt around the pulleys following the under-hood routing diagram.
• Make sure the ribbed side sits fully in the grooves on ribbed pulleys, and the smooth side rides on smooth pulleys. One rib off will shred it.

Step 6: Apply tension and seat the belt

• Use the 15mm socket and 3/8" breaker bar to rotate the tensioner again.
• Slip the belt over the last pulley, then slowly release the tensioner.
• Use a flashlight to check every pulley: the belt must be centered and fully seated in each groove.

Step 7: Reinstall the intake parts

• Reposition the intake tube/ducting.
• Tighten clamps with an 8mm socket or flathead screwdriver (snug, not overtight).
• Reinstall any clips using a trim clip removal tool as needed.

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 30-60 seconds (from a safe distance).
• Listen for chirping/squealing and look for belt wandering (misalignment).
• Turn the steering wheel slightly and switch the A/C on to confirm accessories run smoothly.
• If you still hear squeal, re-check belt seating and inspect the tensioner/idler for rough bearings.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$280 (parts + labor)

DIY Cost: $30-$70 (parts only)

You Save: $80-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
