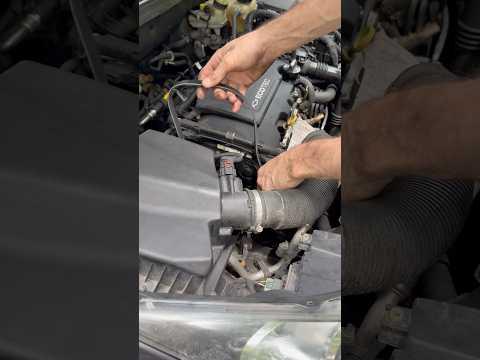

🔧 Cruze - Serpentine Belt Replacement

Your Cruze uses one “serpentine” belt to drive accessories like the alternator and A/C. Replacing it is mostly about safely accessing the belt and using the spring-loaded tensioner to slip the old belt off and the new belt on.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🧤 Work on a cool engine; keep hands clear of pulleys and fans.
• 🧱 Support the car with jack stands; never rely on a floor jack alone.
• 🛞 Chock the rear wheels and keep the transmission in 1st gear with the parking brake set.
• ⚠️ The belt tensioner is spring-loaded; hold your tool firmly so it doesn’t snap back.
• 🔌 Battery disconnect is not required, but keep tools away from the alternator electrical terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 15mm socket
• 3/8" drive ratchet
• 7mm socket
• 10mm socket
• Trim clip removal tool
• Torque wrench (10-200 Nm range)
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Serpentine belt tensioner - Qty: 1 (optional, if noisy/weak)

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and place the transmission in 1st gear.
• 📘 Look for the belt routing diagram (usually on a sticker under the hood). If it’s missing, take a clear photo of the current belt path before removal.
• 💡 Assumption: This procedure is for the common 1.4L turbo accessory belt layout and typically requires right-front wheel/splash-shield access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the right-front corner safely

• Place wheel chocks behind both rear wheels.
• Use a 19mm socket and breaker bar to loosen the right-front lug nuts about 1/2 turn (do not remove yet). A breaker bar is a long handle that gives extra leverage.
• Lift the right-front with a floor jack at the proper lift point.
• Set the car down onto jack stands and give the car a gentle push to confirm it’s stable.

Step 2: Remove the right-front wheel

• Remove the lug nuts using the 19mm socket and take the wheel off.

Step 3: Remove the lower splash shield / inner fender access

• Use a 7mm socket and 10mm socket to remove the small screws/bolts holding the lower splash shield or inner fender access panel near the belt area.
• Use a trim clip removal tool to pop out any plastic push-clips (this tool lifts clips without breaking them).
• Move the panel aside to expose the belt and tensioner.

Step 4: Note belt routing and find the tensioner

• Use a work light to clearly see the belt path.
• Match what you see to the under-hood routing diagram (or your photo).
• Identify the belt tensioner (a spring-loaded arm with a pulley). The hex head for releasing tension is typically 15mm.

Step 5: Release belt tension

• Install a 15mm socket on the tensioner bolt and attach your breaker bar (longer handle helps control the spring force).
• Rotate the tensioner smoothly to relieve belt tension (it will feel strong).
• While holding the tensioner back, slide the belt off one easy-to-reach pulley (commonly the alternator pulley).
• Slowly let the tensioner return to its resting position—do not let it snap back.

Step 6: Remove the old belt

• Pull the belt out of the remaining pulleys and remove it from the engine bay.
• Spin the exposed pulleys by hand and listen/feel for roughness or wobble. Rough pulleys can eat a new belt.

Step 7: Install the new belt (route first, tension last)

• Route the new belt around all pulleys following the diagram/photo, leaving one top pulley for last (often the alternator).
• Make sure the belt ribs sit perfectly in the grooved pulleys and the belt sits centered on any smooth pulleys.
• Use the 15mm socket and breaker bar to rotate the tensioner again.
• Slip the belt over the final pulley, then slowly release the tensioner.

Step 8: Double-check alignment

• Use a work light and inspect every pulley: ribs must be fully seated in grooves with no “half-on” spots.
• If anything is off, release the tensioner again and correct the routing.

Step 9: Reinstall splash shield / inner fender access

• Reinstall clips using the trim clip removal tool (to hold/align clips as you push them in).
• Reinstall screws/bolts using the 7mm socket and 10mm socket snugly (do not over-tighten plastic fasteners).

Step 10: Reinstall wheel and torque lug nuts

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack.
• Use a torque wrench (a tool that tightens to an exact spec) with a 19mm socket to tighten lug nuts in a star pattern: Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• 🔍 Before starting, do one final visual check that the belt is seated on every pulley.
• 🚗 Start the engine and let it idle 30–60 seconds while you watch the belt track smoothly (no hopping, wandering, or squealing).
• 🛑 Shut the engine off and recheck belt alignment if you heard noise.
• 🧪 Take a short drive, then do a quick recheck for any fresh rubber dust or new noises.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $110-$325 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
