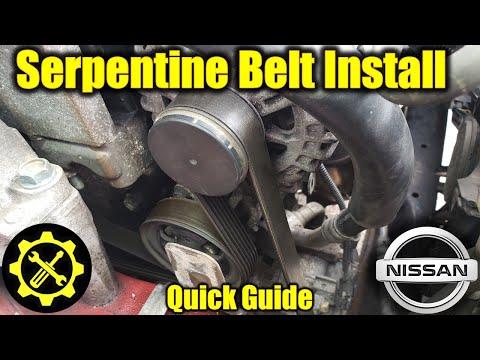

🔧 Altima - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator and A/C. Replacing it fixes squealing, cracking, glazing, or slipping and helps prevent a sudden no-charge or overheating situation.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Hybrid safety: make sure the car is OFF (not READY) and keep the key fob away so the engine can’t start unexpectedly.
• ⚠️ Let the engine cool before working near the belt and pulleys.
• ⚠️ Keep fingers, hair, and clothing away from pulleys at all times.
• ⚠️ Use jack stands—never rely on a floor jack alone.
• Battery disconnect: disconnecting the 12V negative terminal is recommended for safety while your hands are near rotating components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• Ratchet (3/8")
• Serpentine belt tool (specialty)
• 14mm socket
• 15mm socket
• 17mm socket
• 10mm socket
• Trim clip removal tool
• Flathead screwdriver
• Torque wrench (10–150 ft-lbs)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Plastic splash shield clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn the car OFF and keep the key fob at least 10 feet away.
• Open the hood and take a clear photo of the belt routing sticker (or draw a simple diagram). If the sticker is missing, take a photo of the current routing before removal.
• Disconnect the 12V negative battery terminal: use a 10mm socket to loosen the clamp and move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the right-front corner and remove the wheel

• Chock the rear wheels using wheel chocks.
• Loosen the right-front lug nuts slightly using a 21mm socket and 1/2" drive breaker bar.
• Lift the right-front using a floor jack (rated 2-ton minimum), then support the car with jack stands (pair, rated 2-ton minimum).
• Remove the lug nuts and wheel using the 21mm socket.
• Reinstall later: Torque to 113 Nm (83 ft-lbs).

Step 2: Remove the right-front splash shield (access panel)

• Remove the plastic clips/screws with a trim clip removal tool and flathead screwdriver.
• Pull the shield back to expose the belt and tensioner area. Keep clips in a small cup.

Step 3: Relieve belt tension (automatic tensioner)

• Locate the belt tensioner (spring-loaded arm). This is the part that keeps the belt tight automatically.
• Fit one of these onto the tensioner’s hex/boss (varies by setup): 14mm socket OR 15mm socket OR 17mm socket on a ratchet (3/8") or serpentine belt tool (specialty).
• Rotate the tensioner to release tension (you’ll feel spring resistance), then slide the belt off the easiest-to-reach smooth pulley.
• Slowly return the tensioner to rest. Do not let it snap back. Control the tool the whole time.

Step 4: Remove the old belt and inspect pulleys

• Pull the belt out through the wheel-well opening.
• Spin each pulley by hand and listen/feel for roughness or wobble (a bad pulley can kill a new belt fast).
• Check the tensioner and idler pulley for noise or play.

Step 5: Install the new belt (route it correctly)

• Route the new belt following your routing photo/sticker, leaving one easy pulley for last (usually a smooth idler pulley).
• Make sure the belt ribs sit fully in the grooved pulleys (no ribs hanging off an edge). One rib off will shred the belt.

Step 6: Apply tension and seat the belt

• Rotate the tensioner again using the same tool setup: 14mm socket OR 15mm socket OR 17mm socket with a ratchet (3/8") or serpentine belt tool (specialty).
• Slip the belt over the last pulley, then slowly release the tensioner.
• Visually confirm the belt is centered on every pulley.

Step 7: Reinstall splash shield and wheel

• Reinstall the splash shield using the trim clip removal tool and flathead screwdriver.
• Reinstall the wheel and hand-thread lug nuts using the 21mm socket.
• Lower the car, then tighten lug nuts in a star pattern using a torque wrench (10–150 ft-lbs): Torque to 113 Nm (83 ft-lbs).

Step 8: Reconnect the 12V battery

• Reconnect the negative terminal using a 10mm socket and tighten securely.

---

✅ After Repair

• Start your Altima and let it idle while you watch the belt from a safe distance (keep hands clear).
• Listen for chirping/squealing; shut off immediately if the belt walks sideways or looks misaligned.
• Turn A/C on and headlights on; confirm no abnormal noises and stable idle.
• Recheck the belt seating again after a short 5–10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000-₹9,000 (parts + labor)

DIY Cost: ₹1,200-₹3,500 (parts only)

You Save: ₹2,500-₹6,500 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
