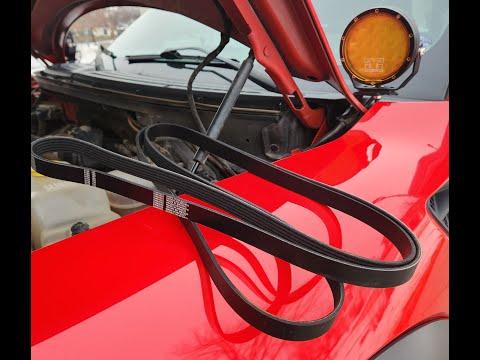

🔧 F-150 - Serpentine Belt Replacement

The serpentine belt drives your A/C compressor, alternator, power steering, and other accessories. On your F-150, the job is mainly about safely unloading the automatic belt tensioner, swapping the belt, then confirming the belt is seated in every pulley groove.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of the fan and pulleys.
• ⚠️ Key out of ignition; do not crank while fingers are near the belt path.
• ⚠️ Keep loose clothing/hair away from rotating parts.
• ⚠️ Battery disconnect is not required, but keep tools away from the alternator power terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Flashlight
• 1/2" breaker bar
• 1/2" drive ratchet
• 15mm socket
• 8mm socket
• Flathead screwdriver
• Trim clip remover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Find the belt routing diagram sticker (usually on the radiator support/upper shroud). If it’s missing, take a clear photo of the current routing before removal.
• Know the parts: the belt tensioner is a spring-loaded arm with a pulley that keeps belt tension automatically.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create working room (if access is tight)

• Use an 8mm socket or flathead screwdriver to loosen the air intake tube clamps.
• If any plastic push-pins are in the way, remove them with a trim clip remover.
• Lift the intake tube/covering just enough to comfortably reach the belt tensioner, then set it aside.
• Tighten intake tube clamps later to Torque to 4-5 Nm (35-44 in-lbs).

Step 2: Double-check the belt routing

• Use a flashlight and look at every pulley the belt touches.
• Take a photo now. This prevents “wrong-route” mistakes.

Step 3: Release tension from the belt tensioner

• Install a 1/2" breaker bar into the square drive on the tensioner (many F-150 tensioners accept a 1/2" tool directly).
• If your tensioner uses a bolt head instead, use a 15mm socket on a 1/2" drive ratchet.
• Rotate the tensioner smoothly to unload belt tension (you’ll feel spring resistance).

Step 4: Remove the old belt

• While holding the tensioner rotated with the breaker bar, slide the belt off the easiest-to-reach top pulley (often the alternator) by hand.
• Slowly let the tensioner return to rest. Do not let it snap back.
• Remove the belt from the remaining pulleys and pull it out of the engine bay.

Step 5: Inspect pulleys and tensioner

• Spin each pulley by hand and listen/feel for roughness or wobble.
• Check the tensioner pulley surface for cracks or missing chunks.
• If any pulley is noisy or loose, stop here—installing a new belt won’t fix a bad pulley.

Step 6: Install the new belt (route first, tension last)

• Route the new belt following the under-hood routing diagram (use the flashlight).
• Make sure the belt ribs sit perfectly in the grooved pulleys (no rib hanging off an edge).
• Leave one easy-access pulley for last (again, commonly the alternator).

Step 7: Apply tension and seat the belt

• Rotate the tensioner again using the 1/2" breaker bar (or 15mm socket and ratchet).
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Visually verify the belt is centered on every pulley.

Step 8: Reinstall intake parts

• Reposition the intake tube/covering.
• Tighten the clamps using the 8mm socket or flathead screwdriver to Torque to 4-5 Nm (35-44 in-lbs).
• Reinstall any push-pins using the trim clip remover.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds while watching the belt track smoothly.
• Turn A/C on and then off; listen for squeal or chirping.
• Shut the engine off and re-check belt seating one more time with a flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $30-$80 (parts only)

You Save: $120-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
