🔧 Serpentine Belt - Replacement

The serpentine belt drives the alternator and other accessories on your Corolla. If it is cracked, squealing, glazed, or fraying, replace it before it fails and leaves you stranded.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hours

---

⚠️ Safety & Precautions

• Work with the engine fully off and completely cool.
• Keep hands, hair, and clothing away from the belt path and pulleys.
• Do not start the engine with tools still near the belt.
• No battery disconnect is required for this repair.
• Use a hand tool on the tensioner slowly; do not force it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm wrench
• 3/8-inch drive breaker bar
• 10mm socket
• 3/8-inch drive ratchet
• Trim panel tool
• Safety glasses
• Mechanic gloves
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool down before touching anything near the belt area.
• Open the hood and locate the belt routing sticker if it is still present.
• If the lower splash shield blocks access, prepare to remove it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the belt area

• Open the hood and remove the engine appearance cover if equipped.
• If needed, use the 10mm socket and 3/8-inch drive ratchet to remove the lower splash shield fasteners.
• Keep track of every fastener.

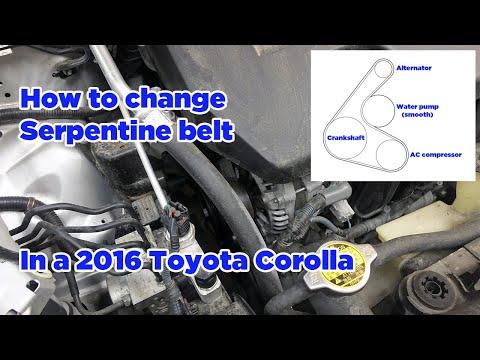

Step 2: Note the belt routing

• Look at the belt routing diagram on the radiator support or underside of the hood.
• If the sticker is missing, take a clear photo of the existing belt path before removal.

Step 3: Relieve belt tension

• Place the 14mm wrench or 3/8-inch drive breaker bar on the belt tensioner arm.
• Rotate the tensioner slowly to release belt tension.
• Torque: No torque spec applies here; just release tension smoothly and do not let the tensioner snap back.

Step 4: Remove the old belt

• Slip the belt off one easy-to-reach pulley first, then remove it from the rest of the pulleys by hand.
• Inspect the belt for cracks, missing ribs, or glazing so you know the replacement was needed.

Step 5: Install the new belt

• Route the new belt around all pulleys except one easy-to-reach pulley last.
• Use the 14mm wrench or 3/8-inch drive breaker bar to release the tensioner again.
• Slide the belt onto the final pulley and make sure it sits centered in every groove.
• Double-check every rib is seated.

Step 6: Verify belt alignment

• Rotate the engine by hand only if needed to confirm the belt tracks correctly on the pulleys.
• Look straight down each pulley to make sure the belt is not twisted or riding off-center.
• Torque: If you removed the splash shield fasteners, tighten them to factory spec for the shield hardware.

Step 7: Reassemble and test

• Reinstall the splash shield and any engine cover you removed using the 10mm socket.
• Start the engine and watch the belt for smooth tracking.
• Listen for squealing or chirping and shut the engine off if the belt is misrouted.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes.
• Check that the belt runs smoothly and stays centered on every pulley.
• Turn on the headlights and rear defroster to put a load on the system and listen for abnormal noise.
• Recheck belt alignment after the test run.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$280 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $115-$190 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hours.

---
