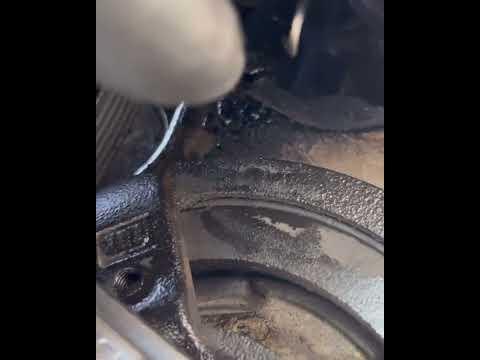

🔧 Equinox - Serpentine Belt Replacement

The serpentine belt on your Equinox drives the alternator, power steering, A/C, and other accessories. When it wears or cracks, it can slip or break and leave you stranded. You’ll remove tension from the belt, route a new belt correctly, and double-check alignment.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Always work on a cool engine; a hot engine and pulleys can burn you.
• 🛑 Park on level ground, set the parking brake, and keep the transmission in PARK.
• 🛑 Support the front of the vehicle with jack stands, never rely on the jack alone.
• 🛑 Keep fingers and tools away from pulleys whenever the engine could be started; remove the key from the ignition.
• 🛑 Do not start the engine until the belt routing is fully checked; a misrouted belt can be damaged instantly.
• 🛑 If you remove the front wheel, snug and then torque the lug nuts properly before driving.
• 🔋 Battery disconnect is not required for this job, but you may disconnect the negative cable if you want extra safety.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum)
• 🧰 Wheel chocks
• 🧰 Lug wrench or 19mm socket
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive serpentine belt tool (long handle) (specialty)
• 🧰 3/8" drive torque wrench (10-150 ft-lbs range)
• 🧰 10mm socket
• 🧰 13mm socket
• 🧰 Flathead screwdriver (medium)
• 🧰 Trim clip removal tool (specialty)
• 🧰 Work light or flashlight
• 🧰 Mechanic gloves
• 🧰 Safety glasses

A serpentine belt tool is a very long, thin bar that fits the belt tensioner and gives extra leverage in tight spaces.

A torque wrench is a ratchet that lets you tighten bolts to a specific force.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Serpentine drive belt (2.4L engine with A/C) - Qty: 1
• 🔩 Belt tensioner assembly - Qty: 1 (optional but recommended if noisy or weak)
• 🔩 Plastic push clips for right inner fender liner - Qty: 4-6 (in case originals break)
• 🔩 Anti-seize compound - Qty: small tube
• 🔩 Disposable gloves - Qty: 1 box

---

📋 Before You Begin

• 🅿️ Park the Equinox on a flat surface, set the parking brake, place the transmission in PARK, and chock the rear wheels.
• 🔦 Turn off the engine, remove the key from the ignition, and let the engine cool fully.
• 🚗 Plan to work from the right front wheel well; this gives the best access to the belt on the 2.4L engine.
• 🔋 If you prefer, disconnect the negative battery cable using a 10mm socket to avoid accidental starts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the vehicle

• Loosen the right front wheel lug nuts a half-turn using a lug wrench or 19mm socket while the vehicle is still on the ground.
• Position the floor jack (3-ton) under the front right jacking point (pinch weld behind the right front wheel) and raise the vehicle until the wheel is off the ground.
• Place jack stands (3-ton) under the proper support points and gently lower the vehicle onto them with the floor jack.
• Remove the right front wheel completely using the 19mm socket.
• Shake the vehicle slightly to confirm it is stable.
• Torque spec (later when reinstalling wheel): 140 Nm (103 ft-lbs)

Step 2: Remove the right inner fender liner access

• Locate the plastic clips and screws holding the front part of the right inner fender liner (splash shield).
• Use a flathead screwdriver or trim clip removal tool to gently pry out the plastic push clips; avoid breaking them.
• If there are any small bolts, remove them using a 10mm socket.
• Pull the front section of the liner back or out of the way to access the front of the engine and serpentine belt area.
• Keep clips and screws in a small container so you don’t lose them.

Step 3: Note the original belt routing

• Shine your work light into the wheel well and engine bay to clearly see the belt and pulleys.
• Look for a factory belt routing diagram sticker under the hood or on the radiator support. If present, take a clear photo with your phone.
• If there is no sticker, draw a simple diagram of how the belt wraps around each pulley (crankshaft, alternator, A/C, idler, tensioner, etc.).
• Spend 2 minutes here; it saves 20 minutes later.

Step 4: Locate and move the belt tensioner

• From the wheel well, locate the belt tensioner; it is a spring-loaded pulley assembly that keeps the belt tight.
• On the 2.4L, the tensioner has a square hole for a 3/8" drive ratchet or serpentine belt tool.
• Insert the 3/8" drive serpentine belt tool (or 3/8" ratchet) into the square hole in the tensioner arm.
• Rotate the tensioner in the direction that loosens the belt (usually clockwise when viewed from the wheel well). You will feel strong spring resistance.
• While holding the tensioner in the released position, slip the belt off the nearest smooth idler pulley using your free hand.
• Slowly release the tensioner back to its resting position with the serpentine belt tool.

Step 5: Remove the old belt

• From the wheel well and from the top of the engine bay, carefully slide the belt off each pulley one by one.
• Note any pulleys that feel rough or wobble if you spin them by hand; this can indicate a bad bearing.
• Remove the old belt from the vehicle completely.
• Lay the new belt and old belt side by side on the ground to confirm they are very close in length and have the same rib count.
• If lengths differ a lot, re-check the part number before installing.

Step 6: Inspect pulleys and tensioner

• Spin each accessible pulley (idler, tensioner, alternator, A/C compressor) by hand.
• If any pulley feels gritty, has side play, or makes noise, plan to replace that component (especially the belt tensioner or idler pulley).
• Check the tensioner arm for smooth spring movement by rotating it again with the serpentine belt tool. It should move smoothly and firmly.

Step 7: Route the new belt (bottom side first)

• Using your earlier diagram or photo, start routing the new belt around the lower pulleys (usually the crankshaft pulley first).
• From the wheel well, position the belt around the crankshaft pulley and any lower idler/A/C pulley as shown in your diagram.
• Make sure the ribs in the belt sit fully into the grooves of each grooved pulley—no ribs riding on edges.
• Leave the easiest-access smooth pulley (often an idler at the top or near the side) for last; the belt will slip onto it when the tensioner is moved.
• Keep gentle tension on the belt so it doesn’t fall off other pulleys.

Step 8: Apply tension and finish routing

• With the belt routed over all pulleys except the last one, double-check the routing from both above and through the wheel well.
• Insert the serpentine belt tool (or 3/8" ratchet) back into the tensioner and rotate it to relieve tension again.
• While holding the tensioner in the released position, slip the belt over the final pulley (usually a smooth idler or alternator pulley).
• Ensure the belt is still seated correctly on all other pulleys and has not jumped out of any grooves.
• Slowly release the tensioner so it applies tension to the new belt.

Step 9: Final belt alignment check

• From above and from the wheel well, visually inspect every pulley.
• Confirm the belt ribs are fully seated in grooved pulleys and centered on smooth pulleys.
• Check that the belt follows the exact same path as your routing diagram or factory sticker.
• If anything looks off, release the tensioner again and correct it now.

Step 10: Reinstall the inner fender liner and wheel

• Reposition the right inner fender liner back into place.
• Install the plastic clips by hand and gently push them fully in; replace any broken clips with new ones. If bolts were used, tighten them snugly with a 10mm socket (do not overtighten).
• Reinstall the right front wheel onto the hub and start all lug nuts by hand.
• Raise the vehicle slightly with the floor jack, remove the jack stands, and lower the vehicle onto the ground.
• Tighten the lug nuts in a star pattern using the 19mm socket and then torque them with a torque wrench to 140 Nm (103 ft-lbs).

Step 11: Optional – Reconnect battery

• If you disconnected the negative battery cable earlier, reinstall it onto the battery post.
• Tighten the clamp bolt securely with a 10mm socket (just snug; do not crush the post).

---

✅ After Repair

• 🧪 Start the engine and let it idle while you watch the belt from above; make sure it runs smoothly and tracks straight on all pulleys.
• 👂 Listen for any squealing, chirping, or grinding noises; if present, shut off the engine and recheck belt routing and pulley condition.
• 🔁 Turn the steering wheel slowly and turn the A/C on and off; the belt should remain stable without visible fluttering.
• 🚗 Take a short, gentle test drive, then recheck the belt and lug nut torque when you return.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$280 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $90-$245 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.0 hours.

---
