🔧 Civic - Serpentine Belt Replacement

Your Civic uses one serpentine (drive) belt to run the alternator, A/C compressor, and other accessories. Replacing it is mostly about safely relieving tension with the automatic belt tensioner, swapping the belt, then confirming the belt is fully seated in every pulley groove.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a completely cool engine to avoid burns.
• ⚠️ Support the car with jack stands before going under the right-front area.
• ⚠️ Keep fingers/hair/clothing clear of pulleys—never check belt tracking with the engine running unless everything is fully reassembled.
• ⚠️ Do not place your hand between the belt and a pulley while releasing tension.
• Battery disconnect is not required for this job, but keep the key out of the ignition.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 14mm combination wrench
• 10mm socket
• 3/8" drive ratchet
• Trim clip remover
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (engine drive belt) - Qty: 1
• Fender liner/undercover clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, shift into 1st gear, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Have your new belt ready and compare its length/rib count to the old belt before installing.
• Take a quick photo of belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the right-front wheel lug nuts

• Use a 19mm socket with a 1/2" drive breaker bar to loosen the lug nuts about 1/2 turn (do not remove yet).

Step 2: Raise and support the right-front of the car

• Lift the right-front with a floor jack (rated 2-ton minimum).
• Set the car down onto jack stands (rated 2-ton minimum) placed at a solid lift/support point.
• Give the car a gentle shake to confirm it’s stable.

Step 3: Remove the right-front wheel

• Remove the lug nuts using the 19mm socket and 1/2" drive breaker bar.
• Remove the wheel and set it aside.

Step 4: Remove the right-side splash shield/fender liner access

• Use a 10mm socket with a 3/8" drive ratchet to remove any 10mm bolts holding the lower splash area.
• Use a trim clip remover to pop out plastic clips (a trim clip remover is a fork-shaped tool that lifts clips without breaking them).
• Pull the liner/splash area back enough to clearly see the belt and tensioner. Use a flashlight as needed.

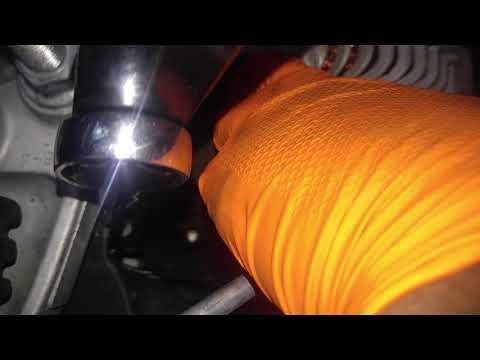

Step 5: Relieve belt tension (automatic tensioner)

• Locate the belt tensioner and place a 14mm combination wrench on the tensioner’s wrench point/bolt head.
• Slowly rotate the tensioner to release tension, then hold it in the released position.
• While holding tension off, slide the belt off the easiest-to-reach pulley (usually an upper pulley).
• Move slowly—spring tension is strong.

Step 6: Remove the old belt and inspect pulleys

• Remove the belt fully from all pulleys.
• Inspect the old belt for cracks, missing ribs, or glazing (shiny/slippery look).
• Visually check each pulley for wobble or damage. (If a pulley looks crooked or noisy, stop and tell me.)

Step 7: Route the new belt

• Route the new belt around the pulleys following the under-hood belt routing diagram (or your photo).
• Make sure the ribbed side of the belt sits in ribbed pulleys, and the smooth side rides on smooth pulleys.
• Leave one easy pulley for last (so you can slip it on after releasing the tensioner).

Step 8: Re-apply tension and seat the belt

• Use the 14mm combination wrench to rotate the tensioner again and slip the belt onto the last pulley.
• Slowly release the tensioner so it tightens the belt.
• With the flashlight, check every pulley: the belt ribs must be centered and fully seated in the grooves (no ribs hanging off the edge).
• If it’s off by one rib, redo it now.

Step 9: Reinstall splash shield/fender liner

• Reposition the liner/splash shield.
• Reinstall bolts using the 10mm socket and 3/8" drive ratchet.
• Reinstall plastic clips using the trim clip remover.

Step 10: Reinstall the wheel and torque lug nuts

• Install the wheel and hand-thread all lug nuts.
• Snug lug nuts in a star pattern using the 19mm socket and 1/2" drive breaker bar.
• Lower the car off the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).
• Final-tighten lug nuts in a star pattern: Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you listen for squeal or slapping noises.
• Turn the A/C on and off and watch/listen for any belt noise changes.
• Shut the engine off and re-check belt seating with the flashlight.
• If you hear chirping/squeal after installation, the belt is commonly mis-seated on one pulley groove—re-check alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
