🔧 Corolla - Serpentine Belt Replacement

Your Corolla’s serpentine (drive) belt spins the alternator, A/C compressor, and water pump. Replacing a worn or cracked belt helps prevent squealing, charging issues, and sudden belt failure.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: Access is through the passenger-side wheel well (common on your Corolla).

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the car with jack stands before going under or into the wheel well.
• ⚠️ Keep fingers/tools clear of the belt path and pulleys. The tensioner is spring-loaded and can snap back.
• ⚠️ Let the engine cool first. Pulleys and nearby parts can be hot.
• ⚠️ No battery disconnect is required, but keep the key away and engine OFF at all times.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 10mm socket
• Ratchet (3/8" drive)
• Trim clip removal tool
• 19mm combination wrench
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Plastic splash shield clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the belt routing sticker/diagram (often on the radiator support). If it’s missing, take a clear photo of the current belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front passenger side

• Use a floor jack (rated 2-ton minimum) to lift the front passenger-side pinch weld/jacking point.
• Set the car down onto jack stands (rated 2-ton minimum).
• Remove the front passenger wheel using a 21mm socket and 1/2" drive breaker bar.

Step 2: Remove the passenger-side splash shield (inner fender)

• Use a trim clip removal tool to pop out the plastic clips.
• Remove any small bolts using a 10mm socket and ratchet (3/8" drive).
• Pull the splash shield back enough to clearly see the belt and tensioner area.

Step 3: Release belt tension

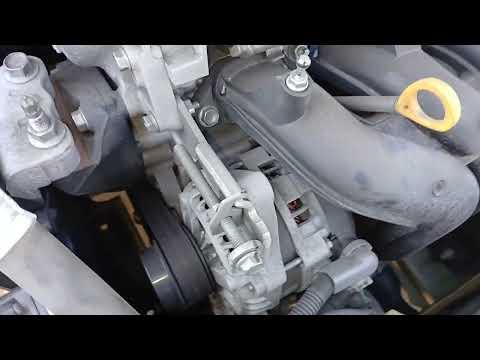

• Locate the belt tensioner (a spring-loaded arm with a pulley). Tensioner = automatic belt tightener.
• Place a 19mm combination wrench on the tensioner’s hex/bolt head.
• Rotate the tensioner steadily to relieve tension (it will be stiff), then slide the belt off one smooth pulley (often the alternator pulley is easiest).
• Slowly let the tensioner return to its resting position. Don’t let it snap back.

Step 4: Remove the old belt and inspect pulleys

• Pull the belt out through the wheel well opening.
• Spin each pulley by hand and look for wobble, roughness, or noise.
• Check the tensioner pulley surface for cracks or chunking.

Step 5: Route the new belt

• Compare the old and new belt length/width before installing.
• Route the new belt following the under-hood diagram.
• Make sure the ribbed side of the belt sits fully in the ribbed pulleys, and the smooth side sits on smooth pulleys.
• Use a flashlight to confirm the belt ribs are centered in every grooved pulley.

Step 6: Apply tension and seat the belt

• Rotate the tensioner again using the 19mm combination wrench.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Double-check belt alignment on every pulley. Misalignment can shred a new belt fast.

Step 7: Reinstall splash shield and wheel

• Reposition the shield and reinstall bolts using a 10mm socket and ratchet (3/8" drive).
• Reinstall clips using the trim clip removal tool (or by pressing them in firmly by hand).
• Reinstall the wheel using a 21mm socket.
• Lower the car off the stands using the floor jack (rated 2-ton minimum).
• Tighten lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 30-60 seconds (from a safe distance).
• Listen for squeal, slapping, or chirping. If you hear it, shut off the engine and re-check belt routing and seating.
• Turn A/C ON and headlights ON to load the belt system and confirm it runs smoothly.
• Recheck the splash shield is secure and not rubbing the belt area.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $110-$280 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
