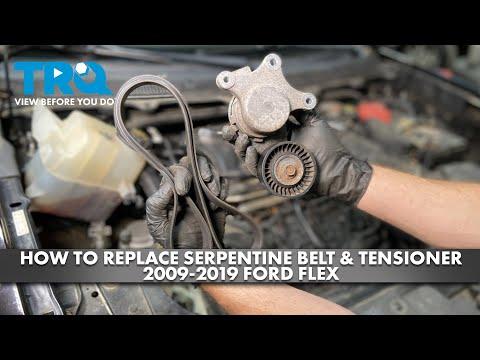

🔧 Flex - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator, power steering, and A/C. Replacing it restores proper grip and prevents a sudden breakdown if the belt is cracked, glazed, or noisy.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine; hot pulleys can burn you.
• 🛑 Support the Flex with jack stands; never rely on a floor jack alone.
• 🛑 Keep fingers and tools clear of the belt path; the tensioner is spring-loaded.
• 🛑 No battery disconnect is required, but keep the key off and do not remote-start.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 15mm socket
• 3/8" drive serpentine belt tool (specialty)
• Flat trim clip tool
• Phillips screwdriver
• Safety glasses
• Mechanic gloves
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Accessory drive belt tensioner - Qty: 1 (optional if weak/noisy)
• Idler pulley - Qty: 1 (optional if noisy/rough)
• Fender liner / splash shield clips - Qty: 1-10 (optional, if any break)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and find the belt routing diagram (usually on the radiator support/under-hood area). If it’s missing, take a clear photo of the current routing before removing the old belt.
• Plan access: on the Flex, belt service is commonly easiest from the passenger-side front wheel well after removing the splash shield.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the passenger front wheel

• Use a 21mm socket with a 1/2" drive breaker bar to loosen the lug nuts 1/2 turn while the tire is still on the ground.

Step 2: Raise and support the Flex

• Use a floor jack (rated 3-ton minimum) to lift the front passenger side at the correct lift point.
• Place jack stands (rated 3-ton minimum) under the proper support point and lower the vehicle onto the stands.
• Give the vehicle a gentle shake to confirm it’s stable before you work underneath.

Step 3: Remove the passenger front wheel

• Use a 21mm socket to remove the lug nuts, then remove the wheel.
• Set the wheel under the vehicle as an added safety backup.

Step 4: Remove the splash shield / fender liner section

• Use a flat trim clip tool to pop out plastic push-clips (a trim clip tool is a forked pry tool that removes plastic fasteners without breaking them).
• Use a Phillips screwdriver to remove any screws in the access area.
• Pull the liner/shield back enough to see the belt and tensioner clearly. Use a flashlight if needed.

Step 5: Release belt tension

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Install a 15mm socket on a 3/8" drive ratchet (or use a 3/8" drive serpentine belt tool (specialty) for extra leverage).
• Rotate the tensioner in the direction that relieves belt tension.
• Hold steady—spring force is strong.

Step 6: Remove the old belt

• While holding the tensioner released with the 15mm socket and 3/8" drive ratchet, slide the belt off the easiest-to-reach top pulley.
• Slowly let the tensioner return to its resting position (don’t let it snap back).
• Remove the belt from the remaining pulleys and pull it out through the wheel well.

Step 7: Inspect pulleys and tensioner before installing the new belt

• With mechanic gloves on, spin each pulley by hand.
• Look/listen for grinding, wobble, or roughness (that points to a bad idler pulley or tensioner pulley).
• Check the tensioner arm movement: it should move smoothly and feel firmly spring-loaded.

Step 8: Route and install the new belt

• Route the new belt around the pulleys exactly like the under-hood routing diagram (ribbed side on ribbed pulleys, smooth side on smooth pulleys).
• Leave one easy pulley for last (usually a smooth idler or top pulley).
• Use the 15mm socket with the 3/8" drive ratchet to rotate the tensioner and slip the belt onto the last pulley.
• Slowly release the tensioner.
• Double-check every groove is seated.

Step 9: Reinstall the splash shield / fender liner

• Reposition the liner/shield.
• Reinstall screws using a Phillips screwdriver.
• Reinstall push-clips using a flat trim clip tool to align and press them in.

Step 10: Reinstall the wheel and lower the vehicle

• Install the wheel and hand-thread lug nuts.
• Snug lug nuts in a star pattern using a 21mm socket.
• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), and lower to the ground.
• Tighten lug nuts in a star pattern: Torque to 203 Nm (150 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 20–30 seconds. It should run centered and smooth with no wandering.
• Listen for chirping/squealing. If noise remains, re-check belt seating on every pulley groove.
• Do a short test drive, then recheck the wheel lug torque: Torque to 203 Nm (150 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
