🔧 Tundra - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator, power steering pump, and A/C compressor. Replacing it is mostly about safely relieving the automatic belt tensioner, swapping the belt, and confirming the routing is correct.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; belts and pulleys can burn you.
• ⚠️ Keep hands, hair, and clothing away from pulleys; never run the engine with fingers near the belt path.
• ⚠️ Do not put your fingers between the belt and pulleys while releasing tension.
• ⚠️ Key off and pocket it so no one starts the truck while you’re working.
• 🔋 Battery disconnect is not required, but it’s okay to disconnect the negative terminal if you want extra safety.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar (18"-24")
• 10mm socket
• 3/8" drive extension set
• Trim clip removal tool
• Flashlight
• Mechanic gloves
• Safety glasses
• Torque wrench (10-80 Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (5.7L accessory drive belt) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and let the engine fully cool.
• Take a quick photo of the current belt routing, or locate the belt-routing diagram sticker (often on the fan shroud/underhood area).
• If you disconnect the battery: use a 10mm socket and remove the negative terminal, then keep it from touching the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a 10mm socket with a 3/8" drive ratchet to remove the engine cover fasteners.
• Lift the cover straight up and set it aside.
• Reinstall later and Torque to 9 Nm (80 in-lbs).

Step 2: Find the belt tensioner and choose your leverage tool

• Locate the automatic belt tensioner at the front of the engine (it has a spring-loaded arm).
• Put a 14mm socket on the tensioner’s hex point.
• Use a 3/8" drive breaker bar (18"-24"); a breaker bar is a longer handle that makes pulling easier and smoother.

Step 3: Relieve belt tension

• Slowly rotate the tensioner with the breaker bar to release tension (you’ll feel strong spring pressure).
• Move slowly; don’t let it snap back.

Step 4: Slip the belt off one top pulley

• While holding the tensioner released, use your free hand to slide the belt off an easy-to-reach top pulley (often the alternator pulley).
• Carefully return the tensioner to its resting position with the breaker bar.

Step 5: Remove the old belt and inspect pulleys

• Pull the belt out of the remaining pulleys by hand.
• Spin each pulley by hand (idler, tensioner pulley, alternator) and feel for roughness or wobble.
• If a pulley feels gritty/noisy or wobbles, that pulley (or tensioner assembly) should be replaced before installing the new belt.

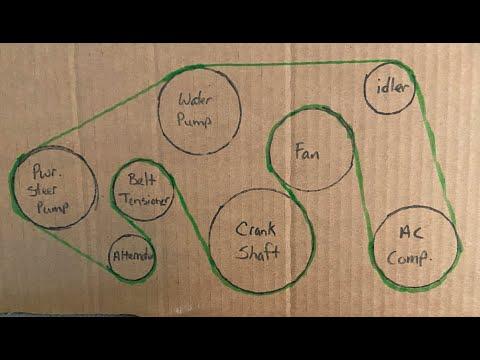

Step 6: Route the new belt correctly

• Match the new belt to your photo/diagram. Make sure the ribbed side sits in ribbed pulleys and the smooth side sits on smooth pulleys.
• Route the belt around all pulleys except one easy-to-reach top pulley last.
• Use a flashlight to confirm every rib is seated in every groove.

Step 7: Apply tension and slip the belt onto the last pulley

• Use the 14mm socket and breaker bar to rotate the tensioner and create slack.
• Slide the belt onto the last pulley fully.
• Slowly release the tensioner back into place.

Step 8: Final alignment check

• Visually check each pulley: the belt should be centered and fully seated in the grooves.
• If the belt is riding on an edge, remove and re-route it now (don’t “hope it fixes itself”).

Step 9: Reinstall engine cover

• Set the cover back in place and start fasteners by hand.
• Use a 10mm socket with a torque wrench and Torque to 9 Nm (80 in-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 20-30 seconds; it should run smoothly with no hopping.
• Listen for squealing, chirping, or grinding noises (signs of misrouting or a failing pulley bearing).
• Turn A/C on and cycle steering lock-to-lock to confirm normal accessory operation.
• After a short drive, recheck belt seating with the engine off.

---

💰 DIY vs Shop Cost

Shop Cost: ₹3,500-₹8,500 (parts + labor)

DIY Cost: ₹1,500-₹3,500 (parts only)

You Save: ₹2,000-₹5,000 by doing it yourself!

Shops in your area vary; this job is typically about 0.5-1.0 hours.

---
