🔧 Tahoe - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator, power steering pump, and A/C compressor. Replacing it is mostly about safely releasing the belt tensioner, routing the new belt correctly, and confirming it sits fully in every pulley groove.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep hands/clothes away from fans and pulleys; never work with the engine running.
• ⚠️ Let the engine cool first; the radiator and belt area can be hot.
• ⚠️ Support the hood securely and work on level ground.
• ⚠️ Battery disconnect is not required, but keep keys out of the ignition so no one starts it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8" drive breaker bar
• 15mm socket
• 3/8" drive ratchet
• Flashlight
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and use a flashlight to find the belt routing diagram sticker (usually on the fan shroud/upper radiator support). If it’s missing, take a clear photo of the current routing before removing the belt.
• Identify the belt tensioner: it’s a spring-loaded arm with a pulley. You’ll rotate it to release belt tension.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the tensioner and confirm belt routing

• Use a flashlight to look at every pulley and confirm how the belt is routed.
• Double-check which pulleys are grooved (ribbed) vs smooth; the ribbed side of the belt must sit in grooved pulleys.
• Take a photo before removing anything.

Step 2: Release tension from the belt

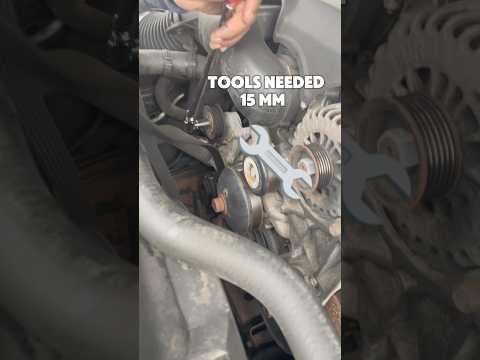

• Install a 15mm socket on a 3/8" drive breaker bar.
• Place the socket on the tensioner’s hex boss (the built-in bolt head on the tensioner arm).
• Pull the breaker bar to rotate the tensioner and relieve belt tension. (A breaker bar is a longer handle that makes it easier to move tight parts.)
• Torque to N/A (no bolts removed)

Step 3: Slip the belt off one pulley

• While holding the tensioner rotated with the 3/8" drive breaker bar, use your free hand to slide the belt off an easy-to-reach pulley (commonly the alternator).
• Slowly let the tensioner return to its resting position. Do not let it snap back.
• Torque to N/A (no bolts removed)

Step 4: Remove the old belt and inspect pulleys

• Remove the belt from the remaining pulleys by hand.
• Spin each pulley by hand and listen/feel for roughness or wobble. If any pulley is noisy or loose, that part should be replaced before installing the new belt.
• Torque to N/A (inspection only)

Step 5: Route the new belt

• Route the new belt following the under-hood routing diagram (or your photo).
• Leave the belt off one easy-to-reach pulley for last (again, commonly the alternator).
• Make sure the belt ribs are fully seated in every grooved pulley—no ribs hanging off the edge.
• Torque to N/A (no bolts removed)

Step 6: Apply tension and install the belt on the last pulley

• Use the 15mm socket and 3/8" drive breaker bar to rotate the tensioner again.
• Slide the belt onto the final pulley, then slowly release the tensioner.
• Re-check belt alignment on every pulley with a flashlight.
• Torque to N/A (no bolts removed)

---

✅ After Repair

• Start the engine and watch the belt for 15–30 seconds. It should run smoothly with no wobble, squeal, or walking off a pulley.
• Turn the A/C on and cycle the steering wheel slightly (while stopped) to confirm no belt noise under load.
• If you hear squealing, shut the engine off and re-check that the belt is fully seated in every grooved pulley.

---

💰 DIY vs Shop Cost

Shop Cost: ₹2,500-₹6,000 (parts + labor)

DIY Cost: ₹900-₹2,500 (parts only)

You Save: ₹1,600-₹3,500 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
