🔧 Serpentine Belt - Replacement

The serpentine belt drives key engine accessories like the alternator, A/C compressor, and water pump. On your Sierra, replacement is straightforward if you have good access to the belt tensioner and follow the belt routing diagram carefully.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Work with the engine completely off and cool.
• Keep hands, clothing, and tools away from the belt path.
• Do not start the engine with the belt removed unless instructed.
• Disconnect the negative battery cable if you want extra safety around the fan and accessory area.
• Take a photo of the belt routing before removal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive ratchet
• 15mm socket
• Long-handled breaker bar
• Flashlight
• Safety glasses
• Mechanic gloves
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before reaching around the belt drive.
• Open the hood and locate the belt routing diagram on the radiator support or underside of the hood.
• If equipped with a belt shield or intake duct blocking access, remove it first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

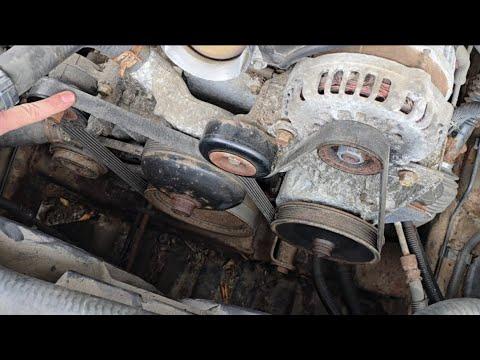

Step 1: Locate the belt and tensioner

• Open the hood and find the serpentine belt routing diagram.
• Use a flashlight to identify the belt tensioner pulley and the square drive or hex fitting on the tensioner arm.
• Study the routing before touching the belt.

Step 2: Release belt tension

• Fit a 3/8-inch drive ratchet or 15mm socket on the belt tensioner, depending on the fitting style on your Sierra.
• Rotate the tensioner clockwise to relieve belt tension.
• Hold the tensioner steady while you slip the belt off one smooth pulley, usually the easiest accessible one.

Step 3: Remove the old belt

• Slowly release the tensioner with the 3/8-inch drive ratchet or 15mm socket.
• Pull the old belt off all pulleys by hand.
• Inspect the belt path for oil, coolant, or damaged pulley grooves.

Step 4: Inspect pulleys and tensioner

• Spin each accessible pulley by hand and check for roughness, noise, or wobble.
• Use the flashlight to inspect the tensioner arm for weak spring action or cracks.
• If any pulley feels rough, replace that component before installing the new belt.

Step 5: Route the new belt

• Route the new serpentine belt around all pulleys except one easy-to-reach pulley for last.
• Follow the under-hood routing diagram exactly.
• Make sure the belt ribs sit fully in every grooved pulley.
• Keep the belt flat and untwisted.

Step 6: Install the belt on the last pulley

• Rotate the tensioner again with the 3/8-inch drive ratchet or 15mm socket.
• Slip the belt onto the final pulley while holding tension off the belt.
• Slowly release the tensioner and let it take up the slack.

Step 7: Verify installation

• Inspect every pulley again with the flashlight to confirm the belt is seated correctly.
• Check that the belt is centered on each pulley and not riding on the edge.
• Manually rotate the engine only if you know how and need to verify routing; otherwise, proceed to startup.

---

✅ After Repair

• Start the engine and watch the belt for the first 30 seconds.
• Listen for squealing, chirping, or slapping noises.
• Turn the steering wheel and switch the A/C on to load the belt slightly and confirm smooth operation.
• If the belt tracks off-center or makes noise, shut the engine off and recheck routing and pulley condition.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$240 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $85-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
