🔧 Malibu - Serpentine Belt Replacement

The serpentine belt on your Malibu drives key accessories like the alternator and A/C. Replacing it means relieving the automatic belt tensioner, removing the old belt, and routing the new belt exactly like the factory diagram.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine—hot pulleys and exhaust can burn you.
• ⚠️ Keep fingers clear of the tensioner and pulleys while releasing tension.
• ⚠️ Support the car with jack stands if you remove the right-front wheel.
• ⚠️ No battery disconnect is required, but keep the key out and engine OFF.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 3/8" drive long-handled ratchet
• 15mm socket
• 7mm socket
• 10mm socket
• Trim clip removal tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Plastic splash shield push-clips - Qty: 4-10

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and find the belt routing diagram (usually on a sticker near the radiator support/upper core support). If it’s missing, take a clear photo of the current routing before removal.
• Tip: Draw the routing on paper first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain access (top and right-front area)

• If access from the top is tight, raise the right-front corner using a floor jack (rated 2-ton minimum) and support it with jack stands (rated 2-ton minimum).
• Remove the right-front wheel using a 21mm socket and 1/2" drive breaker bar.
• Remove the right-front inner splash shield fasteners using a 7mm socket, 10mm socket, and trim clip removal tool.
• Use a flashlight to clearly see the belt and tensioner.

Step 2: Locate the belt tensioner

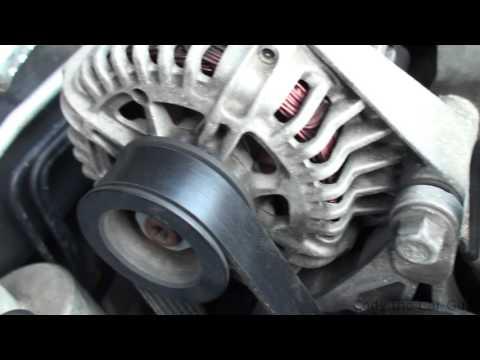

• Find the automatic belt tensioner (spring-loaded arm with a pulley).
• You will typically relieve tension using either the 15mm socket on the tensioner pulley bolt, or the built-in square drive using a 3/8" drive long-handled ratchet.
• Tip: Long handle = easier, safer control.

Step 3: Relieve tension and remove the belt

• Place a 15mm socket on a 3/8" drive long-handled ratchet (or use the tensioner’s square drive with the ratchet).
• Rotate the tensioner to loosen the belt (it will feel springy).
• While holding the tensioner back, slip the belt off the easiest-to-reach smooth pulley (often an idler or tensioner pulley).
• Slowly let the tensioner return to rest—do not let it snap back.
• Remove the belt from the remaining pulleys by hand.

Step 4: Inspect pulleys before installing the new belt

• Spin each pulley by hand (alternator, idler, tensioner, A/C, power steering). They should spin smoothly and quietly.
• Check the tensioner pulley for wobble. Any wobble/noise means the tensioner may need replacement.
• Wipe any heavy dirt off pulley grooves with a clean rag (use mechanic gloves).

Step 5: Route the new belt

• Compare the new belt length to the old belt (new may look slightly shorter—this can be normal).
• Route the belt following the under-hood diagram. Make sure the ribbed side sits fully into every grooved pulley.
• Leave one easy pulley for last (so you can slip it on when the tensioner is released).
• Tip: If one rib is off, fix it now.

Step 6: Apply tension and seat the belt

• Rotate the tensioner again using the 15mm socket and 3/8" drive long-handled ratchet (or tensioner square drive).
• Slip the belt onto the last pulley.
• Slowly release the tensioner back against the belt.
• Double-check every pulley: the belt must be centered and fully seated in the grooves.

Step 7: Reinstall splash shield and wheel (if removed)

• Reinstall the splash shield using the 7mm socket, 10mm socket, and trim clip removal tool.
• Reinstall the wheel using a 21mm socket.
• Lower the car from the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).
• Tighten lug nuts in a star pattern with a 21mm socket and 1/2" drive breaker bar. Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 30–60 seconds. It should run smooth with no hopping, squealing, or wandering.
• Turn the A/C on and off and listen for chirping/squeal (often points to misrouting or a belt not seated in grooves).
• Shut the engine off and re-check belt alignment on every pulley with a flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
