🔧 Santa Fe - Serpentine Belt Replacement

The serpentine belt is the single long belt that drives key accessories like the alternator and A/C. Replacing it is mostly about safely accessing the belt and using the spring-loaded tensioner to slip the belt off and on.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine—hands and belt area can burn you.
• 🛑 Keep fingers/hair/clothing away from pulleys; never check belt tracking with the engine running up close.
• 🛑 Support the Santa Fe with jack stands on solid ground—never rely on a floor jack alone.
• 🛑 The tensioner is spring-loaded; keep a firm grip on the tool so it doesn’t snap back.
• ✅ Battery disconnect is not required, but keep the key away from the vehicle while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 21mm socket
• Breaker bar (1/2" drive)
• Ratchet (3/8" drive)
• 10mm socket
• 12mm socket
• 17mm socket
• Torque wrench (10–200 Nm range)
• Flat trim clip tool
• Flashlight
• Serpentine belt tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Use your flashlight to find the belt routing diagram (often on the radiator support/underhood area). If it’s missing, take a clear photo of the current routing before removal.
• Take a photo now—saves big headaches later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the right-front and remove the wheel

• Place wheel chocks behind the rear wheels.
• Use a 21mm socket with a breaker bar to loosen the right-front lug nuts 1 turn (don’t remove yet).
• Lift the right-front using a floor jack and support with jack stands.
• Remove the lug nuts with the 21mm socket and take the wheel off.

Step 2: Remove the right-front splash shield (belt access)

• Use a flat trim clip tool to pop out the plastic clips.
• Use a 10mm socket with a 3/8" ratchet to remove any small bolts holding the splash shield.
• Pull the splash shield back/out to expose the belt and tensioner area.

Step 3: Locate the belt tensioner and set up to release tension

• Find the automatic belt tensioner (a spring-loaded arm with a pulley).
• Put a 17mm socket on the tensioner’s hex/bolt head (commonly on or near the tensioner pulley).
• If a regular ratchet doesn’t fit well, use a serpentine belt tool (specialty) (it’s a thin, long handle made for tight spaces).

Step 4: Release tension and remove the old belt

• Rotate the tensioner smoothly to relieve belt tension using the 17mm socket and breaker bar (or serpentine belt tool (specialty)).
• While holding the tensioner released, slip the belt off the easiest-to-reach upper pulley.
• Slowly let the tensioner return to its resting position (don’t let it snap back).
• Remove the belt fully and compare it to the new belt length/rib count.

Step 5: Inspect pulleys before installing the new belt

• Spin each accessible pulley by hand and listen/feel for roughness or grinding.
• Check for wobble (side-to-side movement). Any wobble usually means a failing pulley or tensioner.
• Bad pulley = new belt won’t last.

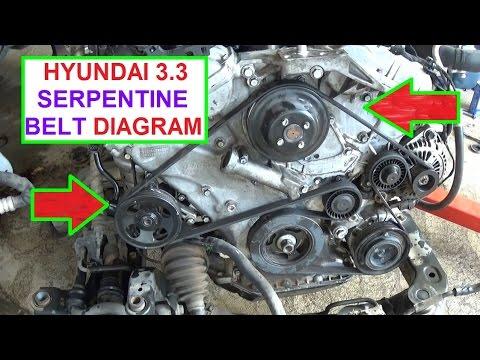

Step 6: Route the new belt

• Route the belt exactly like the underhood routing diagram (or your photo).
• Keep the belt fully seated in the grooved pulleys as you route it (the ribs must sit in the grooves, not on the edge).
• Leave the easiest pulley for last (usually an upper smooth pulley or the alternator pulley, depending on routing).

Step 7: Apply tension and install the belt on the last pulley

• Rotate the tensioner again using the 17mm socket and breaker bar (or serpentine belt tool (specialty)).
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Use the flashlight to confirm the belt is centered on every pulley and fully seated in every groove.

Step 8: Reinstall splash shield and wheel

• Reinstall the splash shield fasteners using the 10mm socket and 3/8" ratchet.
• Reinstall the wheel and hand-thread the lug nuts.
• Lower the Santa Fe off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 110 Nm (81 ft-lbs).

Step 9: (If removed) Re-secure any covers or small brackets

• If you removed any small access panels/brackets, reinstall them using a 10mm socket or 12mm socket as applicable.
• Assumption: If you loosened any 10–12mm small fasteners, snug them and then torque to 8–12 Nm (71–106 in-lbs) (typical for small cover bolts).

---

✅ After Repair

• Before starting, do a final belt “seat check” with a flashlight on every pulley.
• Start the engine and watch from a safe distance for 15–30 seconds: the belt should run smooth with no hopping.
• Listen for squeal/chirp. If you hear it, shut off the engine and re-check routing and seating.
• After a short test drive, re-check the belt alignment once more.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $110-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
