🔧 Serpentine Belt - Replacement

The serpentine belt drives the alternator, water pump, power steering, and A/C compressor on your Tacoma. On the 4.0L V6, belt replacement is straightforward, but correct routing and tension are critical for reliable operation.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Work on a cold engine only. Belts and pulleys can be hot after driving.
• Keep hands, hair, and clothing away from the belt path while turning the tensioner.
• Do not start the engine until the belt is fully seated in every pulley groove.
• Battery disconnect is not required for this job.
• If the belt has failed suddenly, inspect all pulleys for wobble, noise, or seized movement before installing the new belt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 19mm socket
• Breaker bar
• Ratchet
• Belt routing diagram
• Flashlight
• Safety glasses
• Mechanic gloves
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the engine off and let it cool completely.
• Open the hood and locate the belt routing label. If the label is missing, take a photo of the old belt routing before removal.
• Tip: A quick phone photo saves a lot of guesswork.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

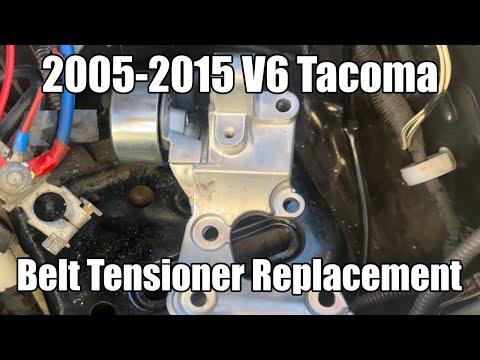

Step 1: Locate the belt tensioner

• Open the hood and find the automatic belt tensioner at the front of the engine.
• Use a 19mm socket and breaker bar on the tensioner arm to relieve belt tension.
• Turn the tensioner slowly in the direction that removes tension from the belt.

Step 2: Remove the old belt

• While holding tension off with the 19mm socket and breaker bar, slide the belt off one accessible pulley.
• Release the tensioner slowly.
• Remove the belt from the remaining pulleys by hand.
• Tip: Snake the belt out from the easiest opening first.

Step 3: Inspect the pulleys

• Use a flashlight to check every pulley for cracks, wobble, or roughness.
• Spin any smooth idler pulley by hand. It should turn quietly and smoothly.
• If you hear grinding or feel roughness, replace the bad component before installing the new belt.

Step 4: Route the new belt

• Compare the new belt to the old one to confirm the length matches.
• Route the new serpentine belt around all pulleys except one easy-to-reach pulley for the final install.
• Make sure the ribbed side of the belt sits in the grooved pulleys.
• Keep the smooth side on the smooth pulleys.

Step 5: Apply tension and seat the belt

• Use the 19mm socket and breaker bar to move the tensioner again.
• Slip the belt onto the last pulley with your free hand.
• Release the tensioner slowly and make sure the belt is fully seated in every pulley groove.

Step 6: Verify routing and alignment

• Use a flashlight to inspect the entire belt path.
• Check that the belt is centered on each pulley and not riding on the edge.
• Rotate the engine by hand only if needed to confirm alignment, then recheck the belt.

---

✅ After Repair

• Start the engine and listen for squealing, chirping, or slapping noises.
• Watch the belt for a few seconds to confirm it tracks straight.
• Turn the steering wheel, A/C, and electrical loads on briefly to check for normal operation.
• If the belt noise returns, recheck routing and pulley condition.

---

💰 DIY vs Shop Cost

Shop Cost: $160-$320 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
