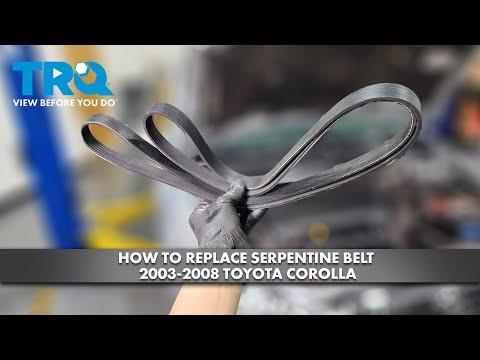

🔧 Corolla - Serpentine Belt Replacement

The serpentine belt spins key accessories like the alternator and A/C. On your Corolla, the belt is kept tight by an automatic spring-loaded tensioner, so the job is mostly about safely relieving tension, swapping the belt, and confirming the routing is correct.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; keep hands clear of pulleys.
• ⚠️ Support the car with jack stands; never rely on a floor jack.
• ⚠️ Keep fingers away from the tensioner while releasing it (spring force).
• ⚠️ Do not start the engine until tools are removed and the belt is fully seated.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 21mm lug nut socket
• Breaker bar 1/2" drive
• 19mm socket 1/2" drive
• 10mm socket
• Ratchet 3/8" drive
• Trim clip removal tool
• Flashlight
• Torque wrench 1/2" drive (20-200 Nm range)
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Engine under cover clips - Qty: 1 set (as needed)

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park (or 1st gear if manual), and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔎 Look for the belt routing diagram under the hood. If it’s missing, take a clear photo of the current belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the right-front corner for access

• Use wheel chocks and put on safety glasses and mechanic gloves.
• Use a 21mm lug nut socket with a breaker bar 1/2" drive to slightly loosen the right-front wheel lug nuts (about 1/4 turn).
• Use a floor jack (rated 2-ton minimum) to lift the right-front corner at the proper jacking point.
• Set the car onto jack stands (rated 2-ton minimum).
• Remove the lug nuts using the 21mm lug nut socket and take the wheel off.

Step 2: Remove the splash shield/inner fender access panel

• Use a trim clip removal tool to pop out the plastic clips without breaking them.
• Use a 10mm socket with a ratchet 3/8" drive to remove any 10mm bolts holding the access panel.
• Use a flashlight to locate the belt and the tensioner area.

Step 3: Relieve belt tension

• Find the automatic belt tensioner (a spring-loaded arm that keeps the belt tight).
• Install a 19mm socket 1/2" drive onto the tensioner’s hex and attach the breaker bar 1/2" drive. (A breaker bar is a long handle that gives you extra leverage.)
• Rotate the tensioner slowly to release tension, then slide the belt off the nearest easy pulley (usually the alternator pulley) while holding the tensioner rotated.
• Slowly let the tensioner return to its resting position. Don’t let it snap back.

Step 4: Remove the old belt and check pulleys

• Pull the belt out of the remaining pulleys by hand (use mechanic gloves).
• Spin each accessible pulley by hand and feel/listen for roughness or wobble.
• Use a flashlight to inspect pulley grooves for packed debris or damage.

Step 5: Route the new belt

• Compare the new belt to the old belt for the same length and rib count.
• Route the belt following the under-hood diagram. If you don’t have a diagram, keep the belt fully seated on the grooved pulleys and leave the easiest pulley for last.
• Make sure the ribs are centered in the pulley grooves (no ribs hanging off the edge).

Step 6: Re-apply tension and seat the belt

• Use the 19mm socket 1/2" drive and breaker bar 1/2" drive to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Re-check every pulley with a flashlight: the belt must sit fully in every groove and be centered.

Step 7: Reinstall splash shield and wheel

• Reinstall the access panel using the 10mm socket with the ratchet 3/8" drive and the plastic clips using the trim clip removal tool.
• Reinstall the wheel and hand-thread the lug nuts.
• Lower the car off the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).
• Use a torque wrench 1/2" drive (20-200 Nm range) with a 21mm lug nut socket to tighten lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• 🧪 Start the engine and watch the belt for 30-60 seconds (from a safe distance). It should run smoothly with no wandering.
• 🔊 Listen for squealing, chirping, or ticking. If you hear noise, shut it off and re-check belt seating on every pulley.
• 🔁 After a short drive, re-check the belt alignment with a flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$250 (parts + labor)

DIY Cost: $20-$45 (parts only)

You Save: $105-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
