🔧 Outback - Serpentine Belt Replacement

On your Outback, the “serpentine belt” term is often used loosely—many 2.5L setups use two accessory drive belts: one for alternator/power steering and one for A/C. Replacing them is mainly about loosening the adjusters, swapping the belt(s), then setting correct tension so you don’t get squeal or premature bearing wear.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of the radiator fans.
• ⚠️ Remove the key and make sure the engine cannot start while your fingers are near pulleys.
• ⚠️ If you jack the front up for access, support with jack stands on solid ground.
• ⚠️ Avoid over-tightening belts—too tight can damage alternator/power steering bearings.
• ⚠️ Battery disconnect is not required, but it’s safer if you’ll be near the alternator wiring: use a 10mm wrench to remove the negative terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Flashlight
• 10mm wrench
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" breaker bar
• Torque wrench (10-80 ft-lbs)
• Trim clip tool
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator/Power steering drive belt - Qty: 1
• A/C drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, transmission in neutral, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• If you want extra room, raise the front and support with jack stands using a floor jack.
• Take a quick photo of belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

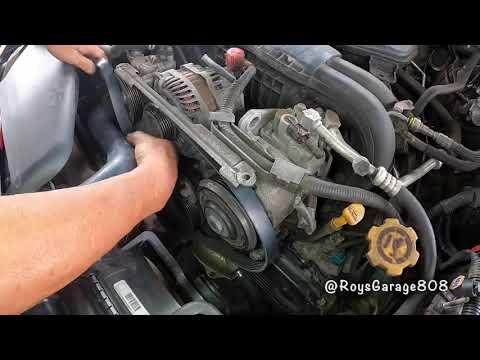

Step 1: Get access to the front of the engine

• Open the hood and use a flashlight to locate the belts and pulleys at the front of the engine.
• If your air intake snorkel blocks access, remove its clips using a trim clip tool and any bolts using a 10mm socket.

Step 2: Identify which belt(s) you’re replacing

• The alternator/power steering belt runs around the alternator and power steering pump pulleys.
• The A/C belt runs lower around the A/C compressor and an idler pulley.
• If one belt is cracked, replace both.

Step 3: Loosen the alternator (alternator/power steering belt)

• Use a 12mm socket to loosen (do not remove) the alternator lock bolt.
• Use a 12mm socket to loosen (do not remove) the alternator pivot bolt.
• Use a 10mm socket to turn the alternator adjuster screw counterclockwise until the belt is loose.

Step 4: Remove and install the alternator/power steering belt

• Slip the old belt off the pulleys by hand. If it’s stubborn, use a breaker bar to slightly relieve tension by backing off the 10mm socket adjuster more.
• Route the new belt over the pulleys in the same path as the old belt.
• Use the 10mm socket on the adjuster screw to tension the belt until it has about 1/4"-3/8" (6-10mm) of deflection at the longest straight span using firm finger pressure.
• Tighten the alternator bolts using a torque wrench:
  • Alternator pivot bolt: Torque to 44 Nm (32 ft-lbs)
  • Alternator lock bolt: Torque to 23 Nm (17 ft-lbs)

Step 5: Loosen the A/C belt idler (A/C belt)

• Locate the A/C belt idler pulley (lower front area).
• Use a 12mm socket to loosen the idler lock bolt.
• Use a 10mm socket to turn the idler adjuster screw counterclockwise to relieve belt tension.

Step 6: Remove and install the A/C belt

• Slip the old A/C belt off the pulleys by hand.
• Route the new A/C belt onto the crank and A/C compressor pulleys.
• Use the 10mm socket on the adjuster screw to tension the belt until it has about 1/4"-3/8" (6-10mm) of deflection at the longest straight span using firm finger pressure.
• Tighten the idler bolts using a torque wrench:
  • Idler lock bolt: Torque to 39 Nm (29 ft-lbs)

Step 7: Double-check alignment and tension

• Use a flashlight to confirm each belt is fully seated in every pulley groove (not riding on an edge).
• Spin-check by hand: with engine off, rotate a pulley carefully to confirm the belt tracks straight.

Step 8: Reinstall anything you removed

• Reinstall the intake snorkel/clips using a trim clip tool and 10mm socket.
• If you disconnected the battery, reconnect the negative terminal using a 10mm wrench.
• If you lifted the vehicle, lower it safely using a floor jack and remove the jack stands.

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping.
• Turn on electrical loads (headlights, rear defogger) and confirm no squeal.
• Turn the steering wheel lock-to-lock and confirm the power steering feels normal (no squeal).
• Turn the A/C on and confirm the A/C belt runs smoothly.
• Recheck belt tension after a short 10-15 minute drive; belts can “seat” and loosen slightly.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $30-$90 (parts only)

You Save: $150-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
