🔧 Prius - Rear Window Regulator Replacement

The rear window regulator is the track-and-cable (or scissor) mechanism that moves the window glass up and down. On your Prius, replacement means removing the rear door trim panel, securing the glass, unbolting the regulator/motor assembly, then reinstalling and testing for smooth operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator while powered—pinch hazard.
• ⚠️ Support the window glass with tape before loosening the glass clamps to prevent it from dropping.
• ⚠️ Do not pry near the side-curtain airbag area (upper door/roofline); work only on the door panel.
• 🔋 If you disconnect the 12V battery, the window won’t move—finish positioning/securing the glass first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Panel clip pliers
• Phillips #2 screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Torque wrench (inch‑pound, 20–200 in‑lb)
• Needle-nose pliers
• Painter’s tape (1.5" wide)
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator assembly (Left or Right, match your side) - Qty: 1
• Rear window regulator motor (if not included with regulator) - Qty: 1
• Rear door trim panel clips - Qty: 6-10
• Butyl door vapor-barrier tape - Qty: 1

---

📋 Before You Begin

• Park your Prius on level ground and turn the car OFF.
• Lower the affected rear window to about halfway if possible (this lines up the glass clamp bolts).
• Have painter’s tape ready to secure the glass to the door frame.
• If you plan to disconnect the 12V battery: do it only after the glass is taped up and cannot fall.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which side you’re doing and prep the door

• Open the rear door fully and set up your work light.
• Tip: Do one door at a time.

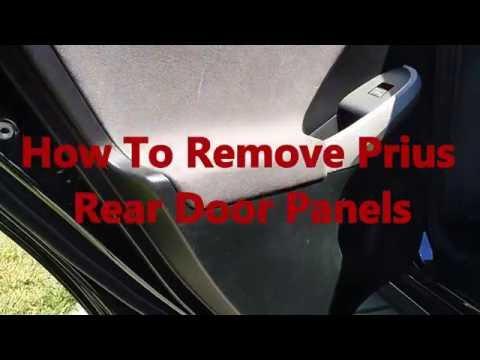

Step 2: Remove the rear door trim panel

• Use a trim removal tool set to gently pry up the switch panel (window switch) and unplug the connector using needle-nose pliers only if needed to release the lock tab.
• Remove visible screws using a Phillips #2 screwdriver (commonly at the pull handle area).
• Use panel clip pliers to pop the door panel clips around the perimeter (you’ll hear snaps).
• Lift the door panel upward to unhook it from the window ledge, then set it aside.
• Tip: Pull straight out to save clips.

Step 3: Remove the vapor barrier (water shield) carefully

• Peel back the plastic vapor barrier slowly by hand.
• If the sticky sealant stretches, use the trim removal tool set to help separate it without tearing.
• Keep the barrier clean so it reseals; you may need butyl door vapor-barrier tape later.

Step 4: Secure the window glass

• Use painter’s tape (1.5" wide) to tape the glass to the door frame at the top edge (use 2–3 long strips).
• If the glass is down and the regulator won’t move it: support the glass from below with one hand while you tape it, then gently lift it to the top.
• Tip: Extra tape is cheaper than glass.

Step 5: Disconnect the regulator motor electrical connector

• Unplug the regulator motor connector by pressing the lock tab using the trim removal tool set (gentle pressure).

Step 6: Unbolt the glass from the regulator (glass clamps)

• Through the access holes, use a 10mm socket, 6" socket extension, and 1/4" drive ratchet to remove the two glass clamp bolts.
• Once bolts are out, confirm the glass is still firmly held by the painter’s tape.
• On reassembly: Torque to 8 Nm (71 in-lb).

Step 7: Remove the regulator and motor assembly

• Use a 10mm socket, 6" socket extension, and 1/4" drive ratchet to remove the regulator mounting bolts.
• If your replacement regulator does not include the motor: remove the motor fasteners using a 10mm socket and transfer the motor to the new regulator.
• Carefully maneuver the regulator out through the service opening in the door.
• On reassembly: Torque to 8 Nm (71 in-lb).

Step 8: Install the new regulator

• Place the new regulator into the door and align it to the mounting points by hand.
• Start all bolts by hand first (prevents cross-threading), then tighten using the 10mm socket and 1/4" drive ratchet.
• Finish tightening with the torque wrench (inch‑pound, 20–200 in‑lb): Torque to 8 Nm (71 in-lb).

Step 9: Reattach the glass to the regulator

• Lower/raise the regulator as needed to line up the clamp holes:
  • If the 12V battery is connected, temporarily plug in the window switch and turn the car to READY, then move the regulator slightly.
  • Turn the car OFF before putting hands back inside the door.
• Install the glass clamp bolts using the 10mm socket and 1/4" drive ratchet.
• Tighten with the torque wrench (inch‑pound, 20–200 in‑lb): Torque to 8 Nm (71 in-lb).
• Remove the painter’s tape only after the glass is fully secured.

Step 10: Test window operation before reassembly

• Reconnect the regulator motor connector.
• Temporarily plug in the switch and cycle the window fully down/up.
• Listen for clicking/grinding and watch for the glass tilting—if it tilts, loosen clamps slightly, re-seat glass, then re-torque.

Step 11: Reinstall the vapor barrier and door panel

• Press the vapor barrier back onto the door. If the seal is weak, apply butyl door vapor-barrier tape.
• Hang the door panel on the top lip first, then press clips in around the edge with your hands.
• Reinstall screws using the Phillips #2 screwdriver.
• Reconnect the window switch and snap the switch panel back in using the trim removal tool set.

---

✅ After Repair

• Cycle the rear window 5–10 times to confirm smooth travel and no binding.
• Check that the door opens/closes normally and the panel is fully clipped (no rattles).
• If auto-up/down behavior seems off: cycle the window fully down, then fully up and hold the switch up for 2–3 seconds.
• Verify the window seals against the weatherstrip evenly (no wind gap).

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor, per rear door)

DIY Cost: ₹3,500-₹10,000 (parts only, per rear door)

You Save: ₹4,500-₹8,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
