🔧 Impala - Rear Window Regulator Replacement

The rear window regulator is the cable-and-track assembly that moves the glass up and down. When it fails, the window may move crooked, bind, make grinding/clicking noises, or drop into the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the glass and scissor/cable mechanism while testing.
• ⚠️ Support the window glass with tape before unbolting it, or it can drop suddenly.
• ⚠️ Turn ignition OFF and remove the key before unplugging door wiring connectors.
• ⚠️ If your door has a side airbag, do not probe yellow connectors; avoid impact to the airbag area.
• ⚠️ Battery disconnect is not usually required, but disconnect the negative cable if you’ll have the switch plugged in while hands are inside the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Small flat-blade screwdriver
• Phillips screwdriver
• 7mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 bit
• Torque wrench (in-lb or Nm capable)
• Painters tape (2")
• Pick tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator - Qty: 1
• Rear window regulator motor - Qty: 1 (only if not included)
• Door panel retainer clips - Qty: 6-10 (as needed)
• Butyl seal tape - Qty: 1 (if the water shield won’t reseal)

---

📋 Before You Begin

• Park on level ground and lower the rear window slightly if it still moves (this gives access to the glass fasteners).
• Have painters tape ready to hold the glass to the door frame.
• Learn two terms: water shield (the plastic sheet behind the door panel) and trim tool (a plastic pry tool that pops clips without damage).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a trim removal tool set to gently pry up the window switch bezel and unplug the switch connector.
• Use a small flat-blade screwdriver to lift any small trim covers hiding screws (common spots: pull handle area and door handle bezel).
• Remove visible screws using a 7mm socket and/or Torx T20 bit (varies by panel position).
• Starting at the bottom edge, use the trim removal tool set to pop the panel clips free.
• Lift the panel upward to unhook it from the window ledge, then unplug remaining connectors.
• Tip: Pull straight out on clip areas.

Step 2: Peel back the water shield

• Use a trim removal tool set to carefully peel the water shield back.
• If the butyl adhesive strings, use a pick tool to help separate it without tearing.
• Do not discard it—this keeps water off your carpet and electronics.

Step 3: Support and secure the window glass

• If the glass is still attached to the regulator, turn ignition ON briefly and use the switch to move the glass until you can see the glass-to-regulator fasteners through the access holes, then turn ignition OFF.
• Use painters tape (2") to tape the glass to the door frame (run strips from outside glass over the top of the door frame to the inside).
• If the regulator is broken and the glass is loose, hold the glass by hand and tape it in the full-up position.

Step 4: Disconnect the glass from the regulator

• Through the access holes, remove the glass clamp/fasteners using a 10mm socket (some designs loosen rather than fully remove).
• Once loose, carefully slide the glass up by hand (if needed) and re-tape it securely.

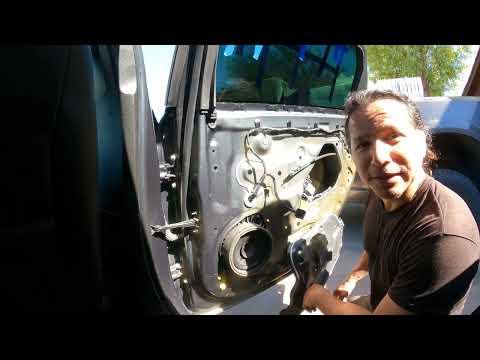

Step 5: Remove the regulator and motor assembly

• Unplug the regulator motor electrical connector.
• Remove the regulator mounting bolts using a 10mm socket, 1/4" drive ratchet, and 3" extension (1/4" drive).
• If your replacement regulator does not include the motor, remove the motor fasteners (tool varies; commonly 10mm socket or Torx T20 bit) and transfer the motor.
• Remove the regulator assembly through the largest access opening.
• Torque to OEM specification (GM service information) using a torque wrench.

Step 6: Install the new regulator

• Guide the new regulator into the door and loosely start all mounting bolts by hand.
• Tighten the bolts evenly using a 10mm socket and finish with a torque wrench.
• Reconnect the motor electrical connector.
• Torque to OEM specification (GM service information) using a torque wrench.

Step 7: Reattach the glass and check operation

• Carefully lower the glass into the regulator clamps (remove only enough painters tape (2") to do this safely).
• Install/tighten the glass fasteners using a 10mm socket, then torque with a torque wrench.
• Plug in the window switch temporarily and cycle the window up/down while watching the tracks and cables (keep fingers clear).
• Tip: Stop immediately if it tilts or binds.
• Torque to OEM specification (GM service information) using a torque wrench.

Step 8: Reseal the water shield and reinstall the door panel

• Press the water shield back onto the butyl. If it won’t stick, apply butyl seal tape (part, not a tool) around the perimeter.
• Reconnect all door panel connectors.
• Hang the panel on the top lip first, then press clips in around the edges by hand.
• Reinstall screws using the 7mm socket and/or Torx T20 bit.
• Snap trim covers and the switch bezel back into place using the trim removal tool set.

---

✅ After Repair

• Cycle the rear window fully down, then fully up several times to confirm smooth travel and correct alignment.
• If the window has auto-up/auto-down and it doesn’t work, perform a relearn: hold the switch DOWN for ~5 seconds after fully open, then hold UP for ~5 seconds after fully closed.
• Check for wind noise and water leaks: confirm the water shield is fully sealed and the door panel sits flush.

---
