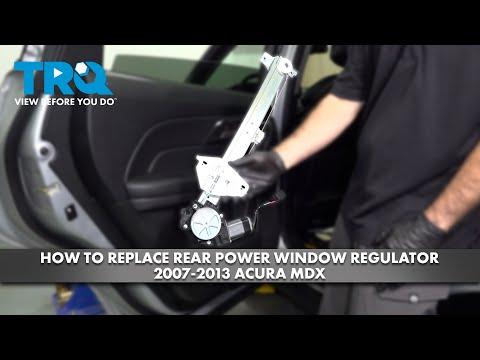

🔧 MDX - Rear Window Regulator Replacement

The rear window regulator is the cable-and-track assembly that moves the glass up and down inside the rear door. Replacement usually means removing the rear door panel, unbolting the glass from the regulator, swapping the regulator (and sometimes the motor), then testing and reassembling.

Quick questions (so you buy the right parts): Which rear door is it (left/driver-side or right/passenger-side)? Are you replacing the regulator only, or the regulator + motor as an assembly?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first time)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers out of the regulator tracks; the cable mechanism can pinch hard.
• ⚠️ Support the window glass with painter’s tape before unbolting it, so it can’t drop.
• ⚠️ Avoid probing yellow connectors; those are SRS/airbag related circuits.
• ⚠️ If you’ll unplug the window motor/switch, turn ignition OFF; optional: disconnect the negative battery terminal with a 10mm wrench.
• ⚠️ Wear gloves; the inner door metal edges can be sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Work gloves
• Trim/panel removal tool set
• Panel clip pliers
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb or Nm capable)
• Painters tape (2" wide)
• Pick tool
• Magnetic parts tray
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (left or right) - Qty: 1
• Rear window motor - Qty: 1 (only if not included / if motor is faulty)
• Rear door panel clips - Qty: 1 set (recommended)
• Butyl door vapor barrier adhesive - Qty: 1 (if original adhesive won’t reseal)

---

📋 Before You Begin

• Park on level ground, shift to P, and turn the ignition OFF.
• Lower the rear window until you can access the glass-to-regulator bolts (if the regulator still moves).
• Have painter’s tape ready to secure the glass to the door frame.
• If the window is stuck fully up or fully down, you can still do the job—just plan to carefully support and reposition the glass by hand once the panel is off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch panel

• Use a trim/panel removal tool set to gently pry up the window switch panel from the armrest.
• Disconnect the electrical connector using a pick tool to lift the locking tab if needed. Don’t pull on the wires.

Step 2: Remove screws hidden behind trim pieces

• Pop off the inner door handle trim cover using a small flat-blade screwdriver (wrap the tip with tape to reduce marring).
• Remove the exposed screw(s) with a Phillips #2 screwdriver.
• Check the armrest/pull-handle area for another screw; remove it with a Phillips #2 screwdriver.

Step 3: Remove the rear door panel

• Use a trim/panel removal tool set to start at the lower edge of the door panel and pop the clips free.
• Use panel clip pliers if a clip is stubborn (this helps pull straight without tearing the panel).
• Lift the panel upward to unhook it from the window ledge.
• Disconnect any remaining connectors using the pick tool as needed.

Step 4: Peel back the vapor barrier (water shield)

• Use your hands and a trim/panel removal tool set to carefully peel the plastic vapor barrier back.
• Stick it to itself out of the way; try not to rip it. If the butyl is messy, wear work gloves.

Step 5: Secure the glass so it cannot fall

• With the glass in the “up” position (or supported by hand), apply painters tape (2" wide) from the outside of the glass over the top of the door frame and back onto the glass (use 2–3 strips).
• Confirm the glass cannot slide down when lightly pushed.

Step 6: Unbolt the glass from the regulator

• Locate the two glass clamp/retainer bolts through the door access holes.
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to loosen and remove the bolts.
• Once unbolted, gently push the glass fully up by hand and add more painters tape (2" wide) if needed.

Step 7: Disconnect the window motor/regulator electrical connector

• Unplug the motor connector using a pick tool to release the lock tab if necessary.
• Move the harness out of the work area.

Step 8: Remove the regulator (and motor if attached)

• Remove the regulator/motor mounting bolts using a 10mm socket, 1/4" drive ratchet, and 6" extension.
• Carefully maneuver the regulator out through the largest access opening in the door. Use a flashlight to avoid snagging the cable.

Step 9: If needed, transfer the motor to the new regulator

• If your new part is regulator-only, remove the motor screws/bolts from the old regulator using the correct driver (commonly 10mm socket or Phillips #2 screwdriver, depending on the unit).
• Install the motor onto the new regulator and snug fasteners evenly using the same tool.
• Keep the motor gear fully seated.

Step 10: Install the new regulator assembly

• Feed the regulator into the door and align it to the mounting holes.
• Install the bolts by hand first to avoid cross-threading, then tighten with a 10mm socket and 1/4" drive ratchet.
• Torque to 10 Nm (7 ft-lbs) using a torque wrench (in-lb or Nm capable).

Step 11: Reattach the glass to the regulator

• Lower the regulator carrier into position (you can temporarily plug in the switch and turn ignition ON briefly to move it, then ignition OFF again).
• Align the glass with the regulator clamps and install the two bolts using a 10mm socket, 1/4" drive ratchet, and 6" extension.
• Torque to 10 Nm (7 ft-lbs) using a torque wrench (in-lb or Nm capable).
• Remove the painters tape (2" wide) from the glass.

Step 12: Function test before reassembly

• Reconnect the motor connector (if unplugged) and the window switch connector.
• Turn ignition ON and run the window fully down, then fully up, using the switch.
• Listen for clicking/grinding and watch for the glass tilting; if it tilts, loosen the glass bolts slightly with a 10mm socket, re-seat the glass, then re-torque to 10 Nm (7 ft-lbs).

Step 13: Reinstall the vapor barrier

• Press the vapor barrier back onto the butyl adhesive using your hands (wear work gloves).
• If it won’t stick, apply butyl door vapor barrier adhesive and press firmly all around the perimeter.

Step 14: Reinstall the door panel

• Reconnect all electrical connectors.
• Hook the top of the door panel onto the window ledge, then press the panel in to engage the clips.
• Reinstall the screws using a Phillips #2 screwdriver.
• Snap the trim covers back on by hand.
• Reinstall the switch panel by pressing it down until it clicks.

---

✅ After Repair

• Test the rear window from the rear switch and the driver’s master switch.
• Check that the window seals evenly at the top and doesn’t whistle on a short drive.
• If you disconnected the battery and the window acts odd, re-learn it: with ignition ON, hold the window switch in the UP position for ~2 seconds after it fully closes, then hold DOWN for ~2 seconds after it fully opens.
• Make sure the door handle works from inside and outside before you fully finish.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$280 (parts only)

You Save: $260-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
