🔧 Tacoma - Rear Window Regulator Replacement

You’ll be removing the interior trim, unbolting the old window regulator, transferring the glass, and installing a new regulator in your Tacoma. This restores smooth up/down window operation and prevents the glass from dropping or binding.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.5 hours per window

---

⚠️ Safety & Precautions

• 🔸Always support the glass so it does not fall and break on you.
• 🔸Keep your fingers clear of the regulator arms and gears; they can pinch hard.
• 🔸Use jack stands or blocks only if you must climb in from outside; keep the truck stable on level ground.
• 🔸Disconnect the negative battery cable when working on power windows to avoid accidental operation.
• 🔸Wear safety glasses and gloves; broken glass and sharp metal edges are common inside doors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔸10mm socket
• 🔸12mm socket
• 🔸1/4" drive ratchet
• 🔸3/8" drive ratchet
• 🔸1/4" drive extension (3–6")
• 🔸Phillips #2 screwdriver
• 🔸Flat blade screwdriver (small)
• 🔸Trim removal tool set (plastic)
• 🔸Needle-nose pliers
• 🔸Panel clip removal tool
• 🔸Torque wrench (inch‑lb and ft‑lb)
• 🔸Painter’s tape (blue masking tape)
• 🔸Razor blade or plastic scraper
• 🔸Shop rags
• 🔸Safety glasses
• 🔸Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔸Rear door window regulator (left side, Access Cab) - Qty: 1
• 🔸Rear door window regulator (right side, Access Cab) - Qty: 1
• 🔸Rear door power window motor (if replacing, left) - Qty: 1
• 🔸Rear door power window motor (if replacing, right) - Qty: 1
• 🔸Door panel push clips - Qty: 8–12
• 🔸Butyl sealing tape / waterproof door sheet adhesive - Qty: 1 roll
• 🔸Plastic moisture barrier (if damaged) - Qty: 1 per door

---

📋 Before You Begin

• Park your Tacoma on level ground, set the parking brake, and leave the transmission in gear.
• Lower the affected rear window to about one‑third open if it still moves; this positions the glass clamp bolts in reach.
• Turn ignition OFF and remove the key.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside.
• Open the rear door (Access Cab rear-hinged door) fully so you have good access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you’re replacing

• 🔸Your TRD Sport Access Cab uses a cable‑type window regulator with a separate electric motor.
• 🔸If your problem is slow or weak movement, often the regulator is worn; if there’s no movement or only a click, the motor may be bad.
• 🔸Plan to replace the regulator and reuse the motor unless the motor is clearly faulty.

Step 2: Remove rear door trim panel

• 🔸Use a trim removal tool to gently pry off the small plastic cover behind the interior door handle.
• 🔸Remove the screw behind the handle using a Phillips #2 screwdriver.
• 🔸Pop up the armrest switch panel (with the window switch) using a trim removal tool; disconnect the wiring connector by pressing its tab with your finger.
• 🔸Remove any screws in the armrest or pull handle with a Phillips #2 screwdriver (usually one or two on the Tacoma).
• 🔸Starting at the bottom edge, slide a trim removal tool between the door panel and metal door and pop the plastic clips free all the way around.
• 🔸Lift the door panel straight up and off the window sill and set it aside safely.

Step 3: Remove the moisture barrier

• 🔸The clear/white plastic sheet is the moisture barrier; it keeps water out of the cabin.
• 🔸Carefully peel it back using your hands and a razor blade or plastic scraper to separate the sticky butyl adhesive if needed.
• 🔸Do not tear it; peel back only as much as needed to access the regulator and glass clamp area.
• 🔸Stick it temporarily higher on the door or tape it out of your way with painter’s tape.

Step 4: Secure the window glass

• 🔸If the window can still move, reconnect the switch temporarily, turn ignition ON, and move the glass until you see the two glass clamp bolts through the access holes in the door.
• 🔸Turn ignition OFF and disconnect the switch again.
• 🔸Use painter’s tape outside the truck to tape the glass to the door frame (several strips from glass to door frame).
• 🔸This prevents the glass from dropping when you loosen the clamps.

Step 5: Loosen glass from regulator

• 🔸Locate the two clamp bolts that hold the glass to the regulator through the access holes.
• 🔸Use a 10mm socket and 1/4" ratchet to loosen (do not completely remove) the two glass clamp bolts.
• 🔸Gently pull up on the glass by hand to slide it out of the clamp channels and into the fully up position.
• 🔸Add more painter’s tape at the top to hold the glass firmly in place.

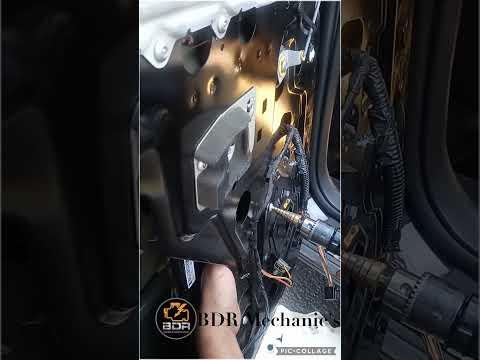

Step 6: Disconnect the window motor and regulator

• 🔸Unplug the electrical connector to the window motor by pressing the tab and pulling it off. Use needle-nose pliers only if your fingers cannot reach.
• 🔸Trace the regulator mounting points; you will see several 10mm bolts securing the regulator and motor to the door shell.
• 🔸Use a 10mm socket and 1/4" ratchet to remove all regulator and motor mounting bolts.
• 🔸Keep track of the bolt locations; some may be slightly different lengths.

Step 7: Remove the old regulator and motor

• 🔸Support the regulator assembly with one hand while removing the last bolt so it does not drop.
• 🔸Carefully angle the regulator and motor assembly out through the large opening in the door using your hands.
• 🔸If it hangs up, rotate it slightly; do not force or bend the door metal.

Step 8: Transfer motor to new regulator (if reusing)

• 🔸Place the old regulator and new regulator on a clean surface.
• 🔸Use a 10mm socket to remove the three bolts holding the motor to the old regulator.
• 🔸Install the motor onto the new regulator, aligning the gear and bolt holes.
• 🔸Install the three bolts by hand and then snug them with a 10mm socket. Torque to 7 Nm (62 in‑lbs).
• Start all bolts by hand to avoid cross‑threading.

Step 9: Install the new regulator assembly

• 🔸Feed the new regulator and motor assembly into the door through the main opening, same orientation as the old one.
• 🔸Align the mounting holes with the door shell.
• 🔸Install the mounting bolts by hand to hold it in place.
• 🔸Tighten all regulator and motor mounting bolts with a 10mm socket. Torque to 7–9 Nm (62–80 in‑lbs).
• 🔸Reconnect the motor electrical connector by hand until it clicks.

Step 10: Reattach the glass to the regulator

• 🔸Carefully remove most of the painter’s tape from the glass, leaving a couple of small pieces at the top as backup.
• 🔸Support the glass with one hand and gently lower it until it rests in the regulator clamps.
• 🔸Make sure the glass sits evenly in both clamps; the edge of the glass should be fully seated in the rubber channels.
• 🔸Use a 10mm socket to tighten the two glass clamp bolts. Torque to 7 Nm (62 in‑lbs).

Step 11: Test the window operation

• 🔸Reconnect the window switch temporarily and reconnect the negative battery cable with a 10mm socket.
• 🔸Turn the ignition to ON.
• 🔸Run the window up and down several times using the switch.
• 🔸Watch and listen for smooth travel, no grinding, no popping, and the glass staying straight in the tracks.
• 🔸If it binds or tilts, loosen the clamp bolts slightly with a 10mm socket, adjust the glass position by hand, then retighten and retest.
• 🔸Turn ignition OFF and disconnect the negative battery cable again before reassembly.

Step 12: Reinstall the moisture barrier

• 🔸Carefully lower the plastic sheet back into its original position.
• 🔸Press it into the door all around to reseal the sticky butyl; use new butyl sealing tape anywhere it no longer sticks.
• 🔸Make sure there are no gaps, especially along the bottom and edges, to keep water out.

Step 13: Reinstall the door panel

• 🔸Hang the door panel on the top edge of the door by the window sill.
• 🔸Press down gently so it seats on the top lip.
• 🔸Line up all the plastic clips with their holes, then hit around the edges of the panel with the palm of your hand to snap them in.
• 🔸Reinstall all screws with a Phillips #2 screwdriver (handle area, behind the inner handle trim).
• 🔸Reconnect the window switch connector and snap the switch panel back into place with your hands.
• 🔸Reinstall the small plastic trim cover behind the interior handle by hand.

Step 14: Final electrical reconnection

• 🔸Reconnect the negative battery cable using a 10mm socket. Torque to 5 Nm (44 in‑lbs) (snug, not overtight).
• 🔸Close the door and test the window operation again from both the rear switch and the driver’s master switch.

---

✅ After Repair

• 🔸Run the window through at least 10 full up/down cycles to confirm smooth operation.
• 🔸Listen for rattles inside the door; if you hear any, recheck that all bolts and clips are tight.
• 🔸Check for wind noise or water leaks after a drive in rain or after washing; if present, recheck the moisture barrier and door panel seating.
• 🔸Clean fingerprints from the glass with a shop rag for clear visibility.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 per rear window (parts + labor)

DIY Cost: $90–$180 per rear window (parts only)

You Save: $260–$370 per window by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours per window.

---
