🔧 Envision - Rear Window Regulator Replacement

The rear window regulator is the lift mechanism that moves the glass up and down. Replacing it usually means removing the rear door trim panel, securing the glass, swapping the regulator (and sometimes the motor), then reassembling and testing for smooth operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per rear door)

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before unplugging door wiring (helps prevent accidental airbag or electrical issues).
• 🛑 Rear doors may contain a side impact airbag—do not probe connectors with a test light and avoid pulling on yellow airbag wiring.
• 🛑 Support the window glass with tape before loosening regulator clamps—glass can drop suddenly.
• 🛑 Wear cut-resistant gloves—door shells and stamped metal edges are sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant work gloves
• Trim removal tool set (plastic)
• Small flat-blade screwdriver
• Phillips screwdriver
• Torx T20 screwdriver
• Torx T30 screwdriver
• 7mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb or Nm capable)
• Needle-nose pliers
• Painter’s tape (1.5" wide)
• Pick tool
• Magnetic parts tray
• Work light
• Rivet gun (specialty)
• Electric drill with 1/4" drill bit

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator assembly - Qty: 1
• Rear window regulator motor - Qty: 1 (only if not included with regulator)
• Rear door trim panel clips - Qty: 1 set (replace any broken)
• Butyl tape (vapor barrier adhesive) - Qty: 1
• 1/4" aluminum rivets - Qty: 1 pack (only if your regulator is riveted)

---

📋 Before You Begin

• 🧰 Park on level ground, ignition OFF, key away from the vehicle.
• 🧰 Lower the rear window to about halfway if it still moves (this usually lines up the clamp bolts).
• 🧰 Disconnect the negative battery cable using a 10mm socket, then wait 2 minutes.
• 🧰 Trim tool = plastic pry tool to avoid scratches.
• 🧰 Butyl tape reseals the water shield.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Fastener sizes vary slightly by build; steps cover both bolt-in and riveted regulators.

Step 1: Remove the rear door trim panel

• Use a trim removal tool set (plastic) to pry off the small trim covers at the door pull/handle area.
• Remove exposed screws using a 7mm socket and/or Torx T20 screwdriver.
• Lift the panel upward to unhook it from the window ledge, using a trim removal tool set (plastic) to pop the clips free.
• Unplug electrical connectors using a pick tool to release the locking tabs (small plastic latches).

Step 2: Remove the vapor barrier (water shield)

• Carefully peel back the plastic water shield using a trim removal tool set (plastic).
• Use painter’s tape (1.5" wide) to hold the barrier out of the way without tearing it.
• Keep the barrier intact to prevent water leaks.

Step 3: Secure the window glass

• Run 2–3 long strips of painter’s tape (1.5" wide) from the outside of the glass up over the door frame to hold the glass.
• If the glass is down and the regulator is failed, lift the glass by hand (with work gloves) and tape it in the fully up position.

Step 4: Detach the glass from the regulator

• Locate the glass-to-regulator clamps/bolts through the access holes.
• Use a 10mm socket (common) to loosen the clamp bolts enough to release the glass.
• Torque on reassembly (typical): Torque to 10 Nm (89 in-lbs)

Step 5: Unplug the window motor connector

• Unplug the motor electrical connector using a pick tool to release the lock, then pull straight off.

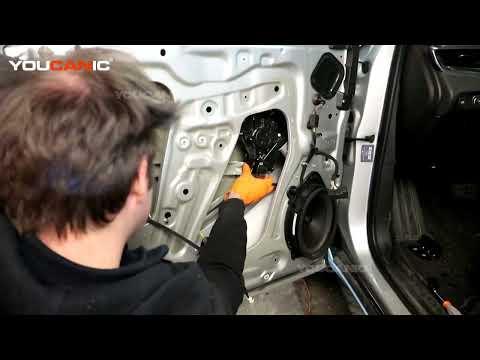

Step 6: Remove the regulator (bolt-in vs riveted)

• If bolted: remove regulator/motor fasteners using a 10mm socket and 1/4" drive ratchet.
• Torque on reassembly (typical): Torque to 9 Nm (80 in-lbs)
• If riveted: center the drill on each rivet and drill the heads off using an electric drill with 1/4" drill bit.
• Catch rivet bodies with needle-nose pliers so they don’t rattle inside the door.
• Wiggle the regulator out through the largest access opening.

Step 7: Transfer the motor (only if required)

• If the new regulator does not include a motor, remove the motor screws using a Torx T30 screwdriver.
• Install the motor onto the new regulator using a Torx T30 screwdriver.
• Torque (typical): Torque to 6 Nm (53 in-lbs)

Step 8: Install the new regulator

• Position the new regulator in the door and start fasteners by hand.
• If bolted: tighten using a 10mm socket and torque wrench.
• Torque (typical): Torque to 9 Nm (80 in-lbs)
• If riveted: install new rivets using a rivet gun (specialty).

Step 9: Attach the glass to the regulator

• Lower/raise the regulator position as needed by briefly reconnecting the switch (if required) and reconnecting the battery only long enough to align clamps.
• Seat the glass fully into the clamps, then tighten with a 10mm socket.
• Torque (typical): Torque to 10 Nm (89 in-lbs)
• Remove the painter’s tape (1.5" wide) after clamps are tightened.

Step 10: Re-seal the vapor barrier

• Press the water shield back into place.
• Add butyl tape (vapor barrier adhesive) anywhere the original adhesive is damaged or no longer sticky.

Step 11: Reinstall the door trim panel

• Reconnect all electrical connectors (they should click) before hanging the panel.
• Hang the panel on the upper window ledge, then press clips in using firm hand pressure.
• Reinstall screws using a 7mm socket and/or Torx T20 screwdriver.

Step 12: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Torque (typical): Torque to 5 Nm (44 in-lbs)

---

✅ After Repair

• 🧪 Cycle the rear window fully down and fully up 5 times to confirm smooth travel and no popping/clicking.
• 🧪 Listen for rattles inside the door (often caused by leftover rivet bodies).
• 🧪 Check from outside: glass should seal evenly against the weatherstrip at the top.
• 🧪 If auto-up/down acts strange, keep the switch held in the UP position for 5 seconds after fully closed (relearn on many GM systems).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$280 (parts only)

You Save: $260-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
