🔧 Camry - Rear Window Regulator Replacement

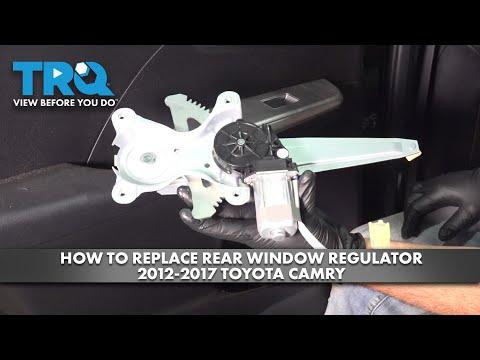

The rear window regulator is the cable-and-track assembly that raises and lowers your rear door glass. When it fails, the window may move slowly, get stuck, tilt, or fall down inside the door. This job is mostly careful trim removal and safely supporting the glass while you swap the regulator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator tracks and cables; they can pinch hard.
• ⚠️ Support the glass at all times once it’s unbolted; it can drop suddenly.
• ⚠️ If you’ll unplug multiple door connectors, disconnect the battery negative cable to avoid accidental shorts.
• ⚠️ Don’t tear the vapor barrier; it prevents water leaks into the cabin.
• ⚠️ Use painter’s tape on painted edges to prevent scratches.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Small flathead screwdriver
• Phillips #2 screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (inch-pound or low-range Nm)
• Painters tape (1" wide)
• Pick tool
• Needle-nose pliers
• Magnetic parts tray
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator - Qty: 1
• Rear window motor - Qty: 1 (only if your new regulator does not include motor)
• Door panel retainer clip set - Qty: 1 (optional, in case clips break)
• Butyl tape (vapor barrier adhesive) - Qty: 1 (optional, if barrier adhesive won’t reseal)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the rear window glass about halfway if it still moves; this helps you access the glass-to-regulator bolts.
• If the window is stuck up, you can still do the job, but you’ll need to move the regulator by hand after loosening it.
• If disconnecting the battery: use a 10mm socket to remove the negative cable and wait 2 minutes before unplugging connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a trim removal tool set to carefully pry up the window switch panel/armrest trim (start from the rear edge).
• Unplug the window switch connector using a pick tool to lift the lock tab if needed.
• Remove the hidden screws:
  • Use a Phillips #2 screwdriver to remove the screw(s) behind the inner door handle trim (pry the small cover with a small flathead screwdriver).
  • Use a Phillips #2 screwdriver or 10mm socket (varies by door panel) to remove the screw(s) in the armrest pocket.
• Use a trim removal tool set to pop the panel clips around the perimeter.
• Lift the door panel straight up to unhook it from the window ledge.
• Disconnect any remaining connectors and the door-handle cable:
  • Take a quick photo before unhooking cables.
  • Use needle-nose pliers if the cable end is tight.

Step 2: Remove and save the vapor barrier

• Use a trim removal tool set to gently peel the vapor barrier back (the plastic sheet).
• Try to keep the black sticky butyl adhesive on the door, not on the plastic.
• If needed, use butyl tape later to reseal gaps. A good seal prevents water leaks.

Step 3: Secure the glass so it can’t fall

• Use painters tape (1" wide) to tape the glass to the door frame from the outside.
• Apply 2–3 long strips, running from the glass over the top of the door frame and down onto the outside of the door.

Step 4: Unbolt the glass from the regulator

• Reconnect the window switch temporarily (if you disconnected the battery, reconnect it briefly) and turn ignition ON.
• Use the switch to align the regulator’s glass clamp/bolt access holes with the service openings in the door.
• Turn ignition OFF.
• Use a 10mm socket to loosen and remove the glass-to-regulator bolts.
• Torque on install: Torque to 8 Nm (71 in-lbs)

Step 5: Remove the rear window regulator and motor

• Unplug the window motor connector (use a pick tool if the lock tab is stubborn).
• Use a 10mm socket and 1/4" drive ratchet to remove the regulator mounting bolts.
• Torque on install: Torque to 8 Nm (71 in-lbs)
• Carefully maneuver the regulator assembly out through the large door opening.
• If your new regulator does NOT include a motor:
  • Use a 10mm socket to remove the motor bolts from the old regulator.
  • Transfer the motor to the new regulator.
  • Torque on install: Torque to 5 Nm (44 in-lbs)
  • Keep the motor gear aligned; don’t force it.

Step 6: Install the new regulator

• Place the new regulator into the door and start all bolts by hand.
• Use a 10mm socket to snug the mounting bolts evenly.
• Final tighten: Torque to 8 Nm (71 in-lbs)
• Plug in the window motor connector.

Step 7: Reattach the glass to the regulator

• Remove some tape if needed so the glass can slide slightly, but keep it supported.
• Lower or raise the regulator (using the switch) until the glass bolt holes line up.
• Install the glass-to-regulator bolts using a 10mm socket.
• Final tighten: Torque to 8 Nm (71 in-lbs)

Step 8: Function test before reassembly

• Turn ignition ON and run the window all the way down, then all the way up.
• Listen for clicking/grinding and watch for tilting or binding.
• If the glass tilts:
  • Loosen the regulator mounting bolts slightly with a 10mm socket, center the regulator, then retorque.
  • Retorque: Torque to 8 Nm (71 in-lbs)
• Turn ignition OFF and unplug the switch again.

Step 9: Reinstall the vapor barrier and door panel

• Press the vapor barrier back onto the butyl adhesive. Add butyl tape if it won’t stick.
• Reconnect the door-handle cable and electrical connectors.
• Hang the door panel on the top lip first, then press the clips in around the edges.
• Reinstall screws using a Phillips #2 screwdriver or 10mm socket (whichever your door uses).
• Snap the trim covers/switch panel back in with light hand pressure.

---

✅ After Repair

• Verify the window goes up/down smoothly from both the rear switch and the driver’s master switch.
• Check that the door handle works inside and outside before closing the door fully.
• After the next car wash or rain, confirm there’s no water leak at the rear door (a poorly sealed vapor barrier is the usual cause).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor, per rear door)

DIY Cost: $80-$220 (parts only, per rear door)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
