🔧 Corolla - Rear Window Regulator Replacement

The rear window regulator is the mechanism that moves the glass up and down. Replacing it means removing the rear door panel, supporting the glass, swapping the regulator (and motor if applicable), then testing window operation before reassembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per rear door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator “scissor/cable” area while testing.
• ⚠️ Support the window glass with tape or a helper so it can’t drop.
• ⚠️ If your Corolla has power windows, disconnect the battery negative cable to prevent accidental window movement and to protect door wiring.
• ⚠️ Work slowly around the vapor barrier (plastic sheet)—tearing it can cause water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Phillips screwdriver #2
• Small flat-blade screwdriver
• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Torque wrench (in-lb)
• Painters tape (1.5")
• Pick tool
• Needle-nose pliers
• Flashlight
• Plastic razor blade

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (LH or RH) - Qty: 1
• Rear window regulator motor - Qty: 1 (only if not included or if motor failed)
• Rear door trim panel clips - Qty: 6-10 (as needed)
• Vapor barrier butyl tape - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and remove the key.
• If the window still moves, run the glass to about halfway down (this usually gives the best access).
• For power windows: use a 10mm socket to disconnect the battery negative cable and set it aside.
• Have painters tape (1.5") ready to hold the glass up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch panel (power windows) or crank trim (manual windows)

• Use a trim removal tool set to gently pry up the rear window switch panel.
• Disconnect the electrical connector(s) by pressing the tab (use a pick tool if the tab is stubborn).
• If equipped with a manual crank: use a small flat-blade screwdriver to release the retaining clip (the clip holds the handle to the shaft). Cover the area so the clip doesn’t fly.

Step 2: Remove screws and release the rear door panel

• Remove visible screws using a Phillips screwdriver #2 (commonly near the pull handle and/or lower area).
• Use a trim removal tool set to pop the panel clips around the edges (you’ll feel each clip release).
• Lift the door panel straight up to unhook it from the top window channel.
• Disconnect any remaining connectors using a pick tool as needed.

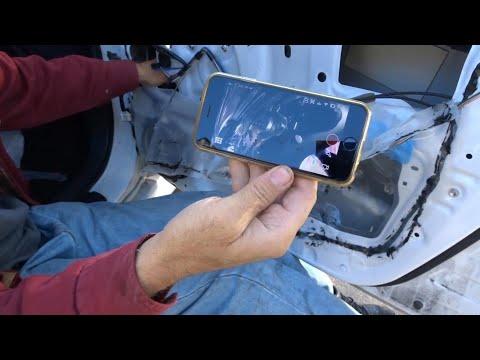

Step 3: Peel back the vapor barrier (plastic sheet)

• Use a plastic razor blade to separate the butyl adhesive without tearing the sheet.
• Peel it back only as far as needed to access the regulator and glass bolts.

Step 4: Support the glass

• If the glass is partway down, carefully raise it by hand to the fully up position.
• Apply painters tape (1.5") from the outside of the glass over the door frame (use 2–3 long strips) to hold the glass up.
• If the tape won’t hold well, have a helper steady the glass while you work.

Step 5: Disconnect the glass from the regulator

• Locate the glass-to-regulator clamps/bolts through the door access holes.
• Use a 10mm socket with a 1/4" ratchet and 3" extension (1/4") to loosen/remove the glass mounting bolts.
• Torque on reassembly: Torque to 7.5 Nm (66 in-lbs) for the glass clamp/fasteners.
• Once free, confirm the glass is still securely taped up.

Step 6: Unplug the regulator motor (power windows) and remove the regulator assembly

• Disconnect the motor connector by pressing the tab (use a pick tool if needed).
• Remove the regulator mounting bolts using a 10mm socket, 1/4" ratchet, and 3" extension (1/4").
• Torque on reassembly: Torque to 8.0 Nm (71 in-lbs) for regulator-to-door bolts.
• Carefully maneuver the regulator out through the largest access opening. Rotate it slowly to avoid bending it.

Step 7: Swap the motor (only if your new regulator doesn’t include it)

• On a bench, remove the motor fasteners using a 10mm socket (or Phillips screwdriver #2 if your unit uses screws).
• Transfer the motor to the new regulator in the same orientation.
• Torque on reassembly: Torque to 6.0 Nm (53 in-lbs) for motor-to-regulator fasteners.
• Don’t power the motor while it’s loose.

Step 8: Install the new regulator and reconnect everything

• Position the new regulator into the door and hand-start bolts using a 10mm socket.
• Tighten regulator bolts with a torque wrench (in-lb): Torque to 8.0 Nm (71 in-lbs).
• Reconnect the motor connector (power windows).

Step 9: Reattach the glass to the regulator

• Lower the regulator mount points to align with the glass (power windows: temporarily reconnect battery to move it, then disconnect again before tightening).
• Remove/loosen the tape just enough to let the glass settle into the clamp/channel.
• Install/tighten the glass bolts with a 10mm socket.
• Final tighten with a torque wrench (in-lb): Torque to 7.5 Nm (66 in-lbs).

Step 10: Test window operation before reassembly

• Reconnect the battery negative cable using a 10mm socket (power windows).
• Plug in the window switch and cycle the window up/down while watching for smooth movement and no cable jumping.
• If operation is rough, stop and recheck glass alignment and bolt tightness.

Step 11: Reinstall vapor barrier and door panel

• Press the vapor barrier back into the butyl; add vapor barrier butyl tape if it won’t stick.
• Reconnect all electrical connectors.
• Hang the door panel on the top edge first, then press clips in around the perimeter (use your palm).
• Reinstall screws with a Phillips screwdriver #2.
• Reinstall the switch panel (or crank handle and retaining clip) using a trim removal tool set and needle-nose pliers as needed.

---

✅ After Repair

• Run the rear window fully down and fully up at least 3 times to confirm smooth travel and proper sealing.
• Listen for clicking/popping (often means the glass isn’t seated correctly in the clamp).
• Check the door for water sealing: confirm the vapor barrier is fully stuck all the way around.
• If the switch seems “confused” after battery disconnect: close the window fully, keep holding the switch UP for 2 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $240-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
