🔧 Altima - Rear Window Regulator Replacement

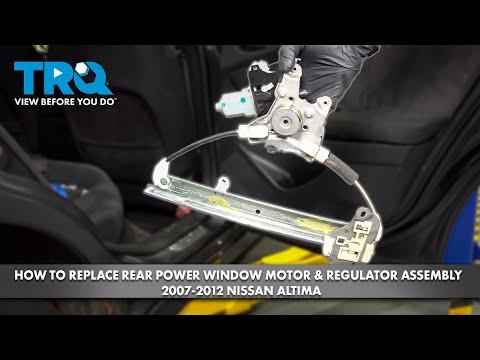

A rear window regulator is the metal track/scissor/cable assembly that moves the window glass up and down. When it fails, the window may fall into the door, move crooked, grind, or not move at all. This job is mostly careful disassembly and reassembly inside the rear door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per rear door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator arms/cables; they can pinch hard.
• ⚠️ Support the window glass with painter’s tape before unbolting it, or it can drop and shatter.
• ⚠️ Disconnect the negative battery cable if you’ll unplug the window motor or do a lot of wiring work.
• ⚠️ Don’t tear the plastic water shield; it prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim clip removal tool
• Plastic pry tool set
• Phillips #2 screwdriver
• Flat-head screwdriver (small)
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb or low Nm range)
• Needle-nose pliers
• Painter’s tape (1" to 2" wide)
• Magnetic pickup tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator - Qty: 1
• Rear window motor - Qty: 1 (only if your regulator does not include the motor)
• Door panel trim clips - Qty: 6-12 (as needed)
• Butyl tape (water shield adhesive) - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the rear window until you can access the glass-to-regulator bolts through the door openings (if the window still moves).
• If the window is stuck up and won’t move, you’ll reposition the glass by hand after loosening the regulator.
• If you plan to disconnect the battery: use a 10mm socket to remove the negative battery terminal and isolate it so it can’t spring back.
• Trim clip tool = a flat forked plastic pry tool.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door panel

• Use a plastic pry tool set to pop off the small trim cover behind the interior door handle (if equipped).
• Remove any visible screws using a Phillips #2 screwdriver (common locations: inside the pull handle pocket and near the handle trim).
• Use a trim clip removal tool to pop the door panel clips around the edges. Work slowly along the bottom and sides.
• Lift the panel straight upward to unhook it from the window ledge.
• Unplug electrical connectors using a small flat-head screwdriver to gently release any locking tabs.

Step 2: Remove the water shield (plastic moisture barrier)

• Peel the plastic water shield back carefully by hand; go slow so the adhesive stays on the plastic.
• If the adhesive is stringy, use needle-nose pliers to pull it off your fingers.
• Butyl tape is sticky “gum” used to reseal the shield.

Step 3: Support the window glass

• Run multiple strips of painter’s tape (1" to 2" wide) from the outside of the glass over the top of the door frame to the inside.
• Use enough tape to hold the glass up firmly. Add extra strips as “backup.”

Step 4: Separate the glass from the regulator

• Look through the access holes in the door to find the glass-to-regulator bolts.
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to remove the two bolts/nuts securing the glass to the regulator sliders/clamps.
• Torque to 8 Nm (71 in-lbs) during reassembly.
• If the window is stuck and you can’t see the bolts, use a 10mm socket to loosen (not remove) the regulator mounting bolts, then carefully move the glass by hand until the fasteners line up with an access hole.

Step 5: Unbolt and remove the regulator (and motor, if replacing)

• Unplug the window motor connector using a small flat-head screwdriver (small) to release the tab (if equipped).
• Use a 10mm socket and 1/4" drive ratchet to remove the regulator mounting bolts.
• Torque to 8 Nm (71 in-lbs) during reassembly.
• If your replacement regulator does not include the motor: remove the motor from the old regulator using a 10mm socket (or Phillips #2 screwdriver depending on build) and transfer it to the new regulator.
• Torque to 6 Nm (53 in-lbs) for motor fasteners (snug, do not strip).
• Work the regulator out through the largest access opening. Use a work light so you don’t snag the cables.

Step 6: Install the new regulator

• Guide the new regulator into the door cavity the same way the old one came out.
• Start all regulator bolts by hand first to prevent cross-threading, then tighten using a 10mm socket and 1/4" drive ratchet.
• Torque to 8 Nm (71 in-lbs).
• Plug in the motor connector (if applicable) until it clicks.

Step 7: Reattach the glass

• Carefully lower or raise the regulator slider/clamp into position (by temporarily plugging in the switch, or by moving it by hand depending on failure).
• Align the glass to the regulator mounting points and install the two fasteners using a 10mm socket.
• Torque to 8 Nm (71 in-lbs).
• Remove the painter’s tape only after the glass is fully secured.

Step 8: Function test before reassembly

• Reconnect the battery (if disconnected) using a 10mm socket.
• Temporarily plug in the window switch and run the window up/down while watching for binding or tilting.
• If it tilts, loosen the glass fasteners with a 10mm socket, square the glass in the run channels, then retorque.

Step 9: Reinstall the water shield and door panel

• Press the water shield back into place by hand. Add butyl tape anywhere it won’t stick.
• Reconnect all door panel electrical connectors.
• Hang the door panel on the top ledge first, then press the clips in around the edges.
• Reinstall screws using a Phillips #2 screwdriver.

---

✅ After Repair

• Cycle the rear window fully down and fully up 5–10 times to confirm smooth movement and correct alignment.
• Listen for popping/clicking (often a clip not seated or glass not square).
• Check for water leaks later: after a car wash or rain, feel the carpet near that door for dampness (water shield seal).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor, per rear door)

DIY Cost: $80-$220 (parts only, per rear door)

You Save: $270-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
