🔧 Rear Turn Signal Bulbs - Bulb Replacement

To replace the rear turn signal bulb, you’ll remove the tail lamp assembly, swap the bulb in the socket, and reinstall everything. This is a simple repair, but the tail lamp can be a little tight to remove, so take your time.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hours

---

⚠️ Safety & Precautions

• Turn the lights off and remove the key before starting.
• Let the bulbs cool down if the lamps were recently on.
• Do not touch the glass of the new bulb with bare fingers.
• Use gentle force on the tail lamp so you do not crack the housing.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• Ratchet
• Trim removal tool
• Latex or nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb - Qty: 2

---

📋 Before You Begin

• Park on level ground and shift into Park.
• Set the parking brake.
• Turn the headlight switch off.
• Open the tailgate for access to the rear lamp screws.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

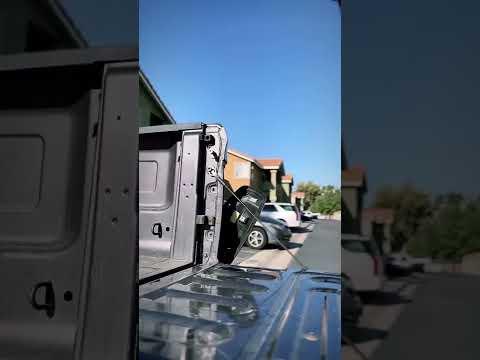

Step 1: Open the tailgate and locate the tail lamp fasteners

• Open the tailgate on the side you are replacing.
• Look at the inside edge of the tail lamp housing.
• Use an 8mm socket and ratchet to remove the tail lamp screws.

Step 2: Remove the tail lamp assembly

• Pull the tail lamp straight back to release the locating pins.
• If it sticks, use a trim removal tool to gently help at the edge.
• Pull straight back, not sideways.

Step 3: Remove the bulb socket

• Find the rear turn signal bulb socket on the back of the lamp housing.
• Rotate the socket counterclockwise by hand and pull it out.
• Remove the old bulb from the socket by pulling it straight out.

Step 4: Install the new bulb

• Install the new rear turn signal bulb into the socket.
• Make sure it sits fully in place.
• Reinsert the socket into the lamp housing and turn it clockwise to lock it.

Step 5: Reinstall the tail lamp assembly

• Line up the locating pins with the body openings.
• Push the lamp straight into place.
• Reinstall the screws with the 8mm socket and ratchet.
• Torque to 3-4 Nm (27-35 in-lbs).

Step 6: Test the new bulb

• Turn the ignition on.
• Activate the turn signal on the repaired side.
• Confirm the front, rear, and dash indicators flash normally.

---

✅ After Repair

• Check that the tail lamp sits flush with the body.
• Test the brake light, running light, reverse light, and turn signal while you are there.
• If the turn signal flashes quickly, recheck the bulb type and socket connection.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$150 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $70-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hours.

---
