🔧 Grand Caravan - Rear Sliding Door Lock Actuator Replacement

You’ll remove the inside sliding-door trim panel, unplug the actuator, and swap it (usually part of the door latch/lock assembly). This restores normal lock/unlock function when the actuator motor wears out or the internal gears strip.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Assumption: “Rear door” = left or right sliding door (not the liftgate).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent short circuits and accidental airbag-related faults.
• ⚠️ Support the sliding door and work on level ground; do not force the door while the trim is off.
• ⚠️ Keep the key fob away from the van so the power locks don’t cycle unexpectedly.
• ⚠️ Use care with the vapor barrier (plastic sheet); it prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Trim panel removal tool (specialty)
• Pick tool set (specialty)
• Ratchet 3/8"
• Extension 3" for 3/8" ratchet
• 7mm socket
• 8mm socket
• 10mm socket
• Torx T20 bit
• Torx T30 bit
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• Torque wrench 3/8"
• Painter’s tape
• Shop towels
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear sliding door lock actuator / latch assembly - Qty: 1
• Door trim panel clips - Qty: 1 set
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and keep the sliding door fully open.
• Turn ignition OFF and remove the key/fob from the van.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Apply painter’s tape around the interior handle/trim edges to reduce scratch risk.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the sliding door trim panel

• Use a Phillips #2 screwdriver or 7mm socket (varies by screw) to remove screws in the pull handle, armrest area, and any visible lower-edge screws.
• Use a trim panel removal tool (specialty) to pop the panel clips free around the edges. (A trim tool is a plastic pry tool that releases clips without breaking them.)
• Lift the panel up and off the window/upper channel, then set it aside.

Step 2: Disconnect switches and cables (if equipped)

• If your A4—(ignore) If your Grand Caravan has power window/lock switches on the door panel, unplug the connectors by pressing the tab and pulling straight out.
• If there’s an interior handle cable/rod attached to the trim panel, use a pick tool set (specialty) or small flat-blade screwdriver to flip the retaining clip open, then slide the cable/rod out.
• Tip: Take a photo before disconnecting clips.

Step 3: Peel back the vapor barrier

• Use your hands and a trim panel removal tool (specialty) to slowly peel the plastic vapor barrier away.
• If the butyl adhesive strings out, use shop towels to keep it off wiring and glass.
• Do not tear it—this plastic keeps water out of the cabin.

Step 4: Access the latch/actuator area at the rear edge of the sliding door

• At the back edge of the sliding door (the edge closest to the rear of the van), locate the latch/lock assembly and the actuator connector.
• Use a work light to clearly see the linkage rods/cables and fasteners.

Step 5: Disconnect the actuator electrical connector

• Press the lock tab and unplug the connector from the actuator using a small flat-blade screwdriver only if needed to gently assist. Do not pry hard on the wires.

Step 6: Disconnect the lock/handle linkages

• Identify the rods/cables going to the latch (inside handle, outside handle, lock rod).
• Use a pick tool set (specialty) to flip each plastic retainer clip open, then lift the rod out of the clip.
• Tip: Only open one clip at a time to avoid mix-ups.

Step 7: Remove the latch/actuator assembly from the door

• From the door edge, remove the latch mounting fasteners using the correct Torx bit (commonly Torx T30 bit) and a ratchet 3/8" with extension 3" if needed.
• Carefully maneuver the latch/actuator assembly out through the access opening.
• If the fasteners are M6 (common on this application), reinstall to Torque to 9 Nm (80 in-lbs).

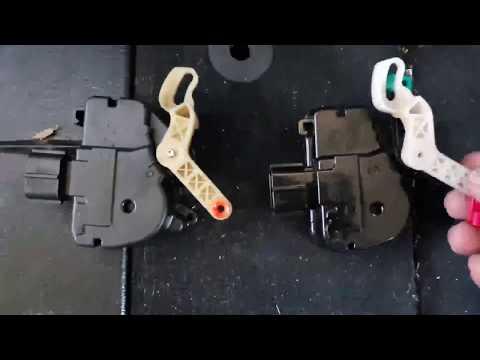

Step 8: Swap the actuator (if serviced separately) or replace the full latch/actuator

• Most failures are handled by replacing the complete latch/actuator assembly. If your replacement is complete, skip to Step 9.
• If the actuator motor is separate on your part, remove its small screws using a Torx T20 bit and transfer it exactly as removed.

Step 9: Reinstall latch/actuator and reconnect linkages

• Position the latch/actuator back into the door and start all fasteners by hand to avoid cross-threading.
• Tighten fasteners with a torque wrench 3/8". If M6, use Torque to 9 Nm (80 in-lbs).
• Reconnect each rod/cable and close the retaining clips fully using a pick tool set (specialty).
• Plug the electrical connector back in until it clicks.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into the butyl. Add butyl tape anywhere it no longer sticks or has gaps.
• Hang the door panel on the upper channel first, then press clips in around the perimeter using your hands.
• Reinstall screws using a Phillips #2 screwdriver or 7mm socket.

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Tighten securely (do not over-tighten and strip the clamp).

---

✅ After Repair

• Test the lock with the key fob and the interior lock switch (lock/unlock several times).
• Open/close the sliding door and confirm the outside handle, inside handle, and child-safety lock (if equipped) all work correctly.
• Listen for smooth actuator movement (no grinding or repeated clicking).
• Check for wind noise or water leak risk: confirm the vapor barrier is fully sealed.

---

💰 DIY vs Shop Cost

Shop Cost: ₹10,000-₹25,000 (parts + labor)

DIY Cost: ₹3,500-₹12,000 (parts only)

You Save: ₹6,500-₹13,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
