🔧 Altima - Rear Door Lock Actuator Replacement

The rear door lock actuator is the electric motor/gear unit that locks and unlocks the door. On your Altima, it’s commonly integrated into the door latch assembly, so replacement usually means swapping the latch/actuator unit inside the rear door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first-timer)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable before unplugging door wiring.
• ⚠️ Keep the window fully UP before starting to avoid accidental glass movement.
• ⚠️ Don’t tear the moisture barrier (plastic sheet); it prevents water leaks.
• ⚠️ Support the door panel while unplugging connectors so you don’t strain the wires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm wrench
• 1/4" drive ratchet
• 10mm socket
• 6" socket extension (1/4" drive)
• Phillips #2 screwdriver
• Torx T30 bit socket
• Plastic trim removal tool set
• Panel clip pliers
• Small pick tool
• Needle-nose pliers
• Butyl tape (automotive)
• Flashlight
• Torque wrench (in-lb capable)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door panel clips - Qty: 1 set
• Moisture barrier butyl seal (automotive butyl tape) - Qty: 1

---

📋 Before You Begin

• Park on level ground, ignition OFF, and keep the rear window fully UP.
• Open the rear door you’re working on and confirm if it’s the left-rear or right-rear (parts differ).
• Use a 10mm wrench to disconnect the battery negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch trim and screws

• Use a plastic trim removal tool set to gently pry up the window switch panel.
• Unplug the switch connector(s) by releasing the lock tab with a small pick tool. Press the tab, don’t yank the wires.
• Use a Phillips #2 screwdriver to remove any visible screws in the pull handle/armrest area and behind trim caps (pop caps with the small pick tool).

Step 2: Remove the rear door panel

• Use a plastic trim removal tool set to start at the bottom edge and pop the door panel clips free.
• If a clip is stubborn, use panel clip pliers to pull it straight out.
• Lift the door panel UP and off the window ledge, then support it close to the door.

Step 3: Disconnect the interior handle cable and door wiring

• Locate the interior door handle cable (a cable is a flexible “wire-in-a-sheath” that pulls the latch).
• Use a small pick tool to unclip the cable housing from the handle bracket, then lift the cable end out of the lever.
• Unplug any remaining connectors (courtesy light/speaker) using the small pick tool to release lock tabs.

Step 4: Peel back the moisture barrier

• Use the plastic trim removal tool set to carefully peel the plastic moisture barrier away from the butyl.
• Stick it to itself or support it so dirt doesn’t contaminate the adhesive.

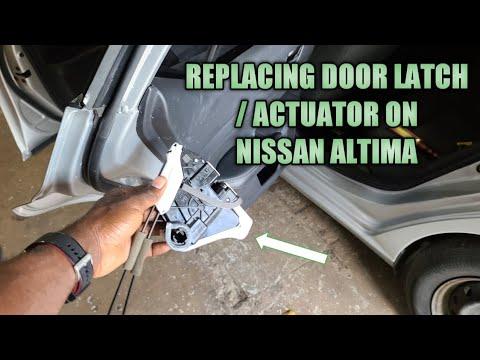

Step 5: Remove the rear door latch/actuator assembly

• At the door’s rear edge (where the latch meets the body), remove the latch mounting screws using a Torx T30 bit socket.
• Disconnect the actuator electrical connector by pressing the lock tab with a small pick tool and pulling the connector straight off.
• Disconnect the lock and handle linkages:
  • Use needle-nose pliers to rotate the plastic retainer clip off the rod (if equipped), then lift the rod out.
  • For any cable connection, unclip the housing first, then remove the cable end.
• Maneuver the latch/actuator assembly out through the access opening.

Step 6: Install the new rear door latch/actuator assembly

• Transfer any seals/foam pieces to the new unit if they didn’t come installed.
• Feed the new latch/actuator into position and start the edge screws by hand.
• Reconnect all rods/cables exactly as removed (make sure each plastic retainer is fully snapped/rotated into the locked position).
• Plug in the actuator connector until it clicks.
• Tighten the latch mounting screws with a Torx T30 bit socket and a torque wrench (in-lb capable): Torque to 7.5 Nm (66 in-lbs).

Step 7: Function-check before reassembly

• Reconnect the battery negative cable using a 10mm wrench.
• With the door still open, test:
  • Power lock/unlock (key fob and driver switch)
  • Inside handle opens the latch
  • Child safety lock function (if you changed its position)
• Disconnect the battery negative cable again with a 10mm wrench before reinstalling the panel.

Step 8: Reinstall the moisture barrier

• Press the moisture barrier back onto the original butyl.
• If the seal is dirty or won’t stick, apply butyl tape (automotive) and press firmly all the way around. A good seal prevents wet carpet.

Step 9: Reinstall the rear door panel

• Reconnect all door panel connectors (switch/speaker/light).
• Reconnect the interior handle cable (snap housing in, then hook cable end).
• Hang the panel on the top lip first, then press clips in around the perimeter.
• Reinstall screws with a Phillips #2 screwdriver. Torque to 2.0 Nm (18 in-lbs).
• Snap trim caps back into place and reinstall the window switch panel using your hands (press evenly).

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm wrench.
• Verify the rear door locks/unlocks from:
  • Key fob
  • Driver door lock switch
  • Rear door inside lock knob (if equipped)
  • Exterior handle operation
• Check that the door panel is fully seated and no clips are loose (no rattles).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
