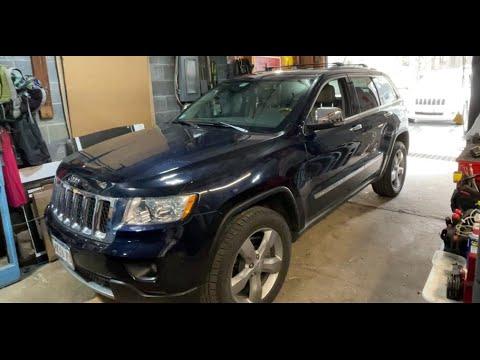

🔧 Grand Cherokee - Rear Door Lock Actuator Replacement

You’ll remove the rear interior door panel, disconnect the latch and linkage, swap in a new lock actuator, then reassemble and test the power locks. This fixes issues like a rear door not locking/unlocking with the remote or switch.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working in the door. This reduces the risk of accidental airbag or window motor activation.
• ⚠️ Your rear door has a side airbag in the trim panel. Handle the door panel gently and never probe connectors with metal tools.
• ⚠️ Keep fingers clear of the window glass and regulator mechanism when moving or supporting the glass.
• ⚠️ Work on level ground with the ignition off and the key removed from the vehicle.
• ⚠️ Use plastic trim tools to avoid cracking the trim or scratching painted surfaces.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔹Ratchet handle 1/4"
• 🔹Ratchet handle 3/8"
• 🔹8mm socket
• 🔹10mm socket
• 🔹Torx T20 screwdriver
• 🔹Torx T25 bit
• 🔹Torx T30 bit
• 🔹Small flathead screwdriver 3–4mm
• 🔹Phillips screwdriver #2
• 🔹Plastic trim removal tool set
• 🔹Panel clip removal tool
• 🔹Needle-nose pliers
• 🔹Torque wrench 2–20 Nm range
• 🔹Torque wrench 10–60 Nm range
• 🔹Work light or flashlight
• 🔹Painter’s tape 25mm
• 🔹Gloves
• 🔹Safety glasses
• 🔹Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔹Rear door lock actuator assembly (side-specific: left or right) - Qty: 1
• 🔹Rear door latch-to-actuator connecting rod clips - Qty: 1–2 (recommended)
• 🔹Rear interior door panel clips - Qty: 4–8 (have spares)
• 🔹Butyl sealant strip for vapor barrier - Qty: 1 roll
• 🔹Dielectric grease for electrical connectors - Qty: small tube
• 🔹Masking tape or cloth tape - Qty: 1 roll

---

📋 Before You Begin

• Park the Grand Cherokee on level ground, shift to Park, and apply the parking brake.
• Lower the affected rear window fully so you can see the glass position inside the door.
• Open the rear door you’re working on fully to give yourself room.
• Disconnect the negative battery cable using a 10mm socket and set it aside so it cannot spring back. Wait at least 3–5 minutes before working near airbag wiring.
• Lay a clean blanket or cardboard on the ground to rest the door panel on when removed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove trim covers and visible screws

• Use a plastic trim removal tool to gently pry off the small trim cover behind the interior door handle (where your fingers pull to open the door).
• Use a Torx T20 screwdriver to remove the screw behind that cover. Keep the screw in a tray.
• At the armrest / pull handle, look for a small rectangular trim cover. Pry it up with a plastic trim tool and remove the screws underneath with a Torx T25 bit on your ratchet.
• Inspect the bottom edge of the door panel for any visible screws and remove them with a Torx T20 screwdriver or Phillips screwdriver #2 as equipped.

Step 2: Release the rear door panel

• Starting at the bottom corner of the door, slide a plastic trim removal tool between the panel and the metal door.
• Gently pry outwards to pop the first plastic clip. You will hear a snap as it releases. Work slowly to avoid breaking clips.
• Move along the bottom and sides, using the trim tool to release all perimeter clips.
• Once clips are free, lift the entire door panel straight up to unhook it from the window channel at the top.
• Support the panel and don’t pull it away too far yet—wiring and cables are still connected.

Step 3: Disconnect door panel wiring and handle cable

• Locate the wiring connectors at the rear of the panel for the window switch, courtesy light, and any ambient lighting.
• Use a small flathead screwdriver if needed to gently lift each connector tab while pulling the plug apart by hand. Do not pull on the wires.
• Find the interior door handle cable: it will be a bowden cable (a cable in a plastic sheath) clipped into the panel.
• Use needle-nose pliers to gently unclip the cable housing from its bracket on the panel, then rotate and unhook the cable end from the interior handle lever.
• Set the door panel safely on your blanket or cardboard, cloth side up.

Step 4: Remove the moisture/vapor barrier

• You will see a plastic sheet (vapor barrier) stuck to the door with sticky butyl sealant.
• Carefully peel the barrier back using your hands. If needed, use a plastic trim tool to help separate the adhesive.
• Peel it back only as much as needed to access the latch and actuator area at the rear edge of the door. Try not to tear it.
• Fold the barrier up and tape it out of the way using painter’s tape 25mm.

Step 5: Disconnect lock actuator wiring and rods

• Locate the door lock actuator toward the rear edge of the door, attached to or integrated with the latch assembly.
• Unplug the electrical connector by pressing the tab and pulling gently. If tight, use a small flathead screwdriver to lift the tab slightly.
• Identify the metal rods and plastic clips connecting the latch/actuator to the inside and outside handles and lock button.
• Use needle-nose pliers to rotate each plastic clip open, then slide the rod out of the clip. Note each rod’s position and orientation.
• If helpful, take a clear photo with your phone before removing rods, so you can match them later.

Step 6: Remove the latch and actuator from the door

• At the door’s rear edge (where the latch catches the body striker), locate the latch mounting bolts.
• Use a Torx T30 bit and ratchet 3/8" to remove the 3 latch bolts.
• Carefully push the latch/actuator assembly inward into the door cavity while guiding the rods and wiring clear.
• Reach through the large access opening in the inner door and maneuver the latch/actuator assembly out. Rotate and tilt as needed.

Step 7: Separate the old actuator from the latch

• On the workbench, examine how the actuator is attached to the latch (usually with small screws and plastic locating tabs).
• Use a Torx T20 screwdriver or Torx T25 bit (as required) to remove the actuator mounting screws.
• Carefully release any plastic tabs with a small flathead screwdriver and separate the actuator from the latch assembly.
• Compare the new actuator to the old one to confirm the connectors, mounting points, and levers match.

Step 8: Install the new actuator on the latch

• Position the new actuator onto the latch in the same orientation as the old one.
• Engage any plastic locating tabs first, then install the mounting screws with a Torx T20 screwdriver / T25 bit.
• Tighten the actuator screws to 3–4 Nm (27–35 in-lbs) using the torque wrench 2–20 Nm.
• Move the latch levers by hand to ensure smooth motion and that nothing is binding.

Step 9: Reinstall the latch/actuator assembly into the door

• Guide the latch/actuator assembly back into the door cavity through the access hole, routing rods and wiring as original.
• Align the latch with the opening at the door’s rear edge.
• Install the 3 latch mounting bolts by hand, then tighten with a Torx T30 bit and ratchet 3/8".
• Torque the latch bolts to 8–10 Nm (71–89 in-lbs) using the torque wrench 2–20 Nm.

Step 10: Reconnect rods and wiring

• Reinstall each metal rod into its correct lever hole (using your photo as a guide).
• Rotate each plastic clip back over the rod until it locks. Replace any broken clips with new ones.
• Plug in the electrical connector to the actuator until it clicks. Apply a tiny amount of dielectric grease if available to the connector seal.
• Gently pull on each rod to ensure it’s secure and doesn’t pop out of the clip.

Step 11: Temporarily reconnect battery and test function

• Reconnect the negative battery cable with a 10mm socket and snug it down.
• With the door still open, use the key fob or interior lock switch to lock/unlock the vehicle.
• Observe the latch movement and verify that:
  • Lock/unlock works from the fob and interior switch.
  • The inside handle opens the door when “unlocked.”
  • The child safety lock (if engaged) behaves correctly.
• Turn ignition off again and disconnect the negative battery cable with the 10mm socket before reassembling the panel.

Step 12: Reinstall the vapor barrier

• Remove the painter’s tape 25mm holding the barrier up.
• Press the vapor barrier back into place around the edges. If the original butyl adhesive is weak or damaged, add fresh butyl sealant strip to seal any gaps.
• Make sure there are no holes where water could leak into the cabin.

Step 13: Reattach door panel wiring and handle cable

• Bring the door panel close to the door and reconnect all electrical connectors by hand until they click.
• Reattach the interior handle cable:
  • Hook the cable end into the handle lever.
  • Clip the cable housing back into its bracket using your fingers or needle-nose pliers.
• Double-check that no wires are pinched or twisted.

Step 14: Reinstall the door panel

• Hook the top edge of the panel over the window channel, aligning it evenly.
• Once hooked, press the panel straight in so that the plastic clips align with the holes in the door.
• Use your palm to firmly press around the edges to seat all clips. You should hear them snap in.

Step 15: Reinstall screws and trim covers

• Reinstall the screws at the bottom edge of the door using the original Torx T20 screwdriver / Phillips screwdriver #2 as removed.
• Reinstall the armrest / pull handle screws with the Torx T25 bit. Tighten them snugly to about 3–4 Nm (27–35 in-lbs) using the torque wrench 2–20 Nm.
• Reinstall the screw behind the interior handle with the Torx T20 screwdriver, then snap the trim cover back in place.
• Snap all decorative trim covers back on using your hands.

Step 16: Final battery reconnect and full test

• Reconnect the negative battery cable with the 10mm socket and tighten to about 6–8 Nm (53–71 in-lbs) using the torque wrench 2–20 Nm.
• Test:
  • Power lock/unlock with key fob.
  • Power lock/unlock from interior switch.
  • Inside and outside handles for proper opening when unlocked.
  • Child safety lock engagement/disengagement, if used.
• Listen for any unusual noises from inside the door when locking/unlocking.

---

✅ After Repair

• Verify that the rear door locks and unlocks consistently 10–15 times using both the key fob and the interior switch.
• Drive at low speed and check that there are no rattles or buzzing sounds from the repaired door.
• Check for water entry after a wash or rain by feeling the carpet under the repaired door for dampness.
• If any function doesn’t work correctly, recheck rod connections and electrical plugs before replacing parts again.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 (parts + labor)

DIY Cost: $90–$180 (parts only)

You Save: $170–$460 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.2–1.8 hours.

---
