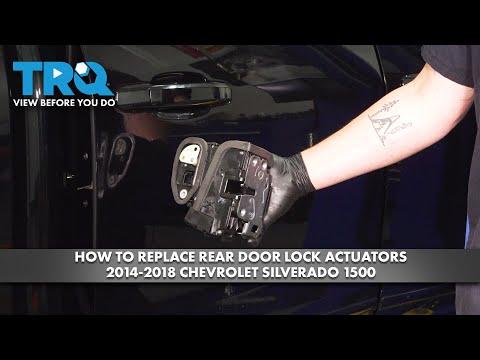

🔧 Rear Door Lock Actuator - Replacement

The rear door lock actuator is built into the latch assembly on your Silverado. Replacing it means removing the rear door trim panel, disconnecting the latch hardware, and installing the new actuator/latch assembly so the power lock works correctly again.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting to avoid accidental short circuits or airbag-related issues.
• The rear door contains side-impact airbag wiring in the trim area; handle connectors gently and never probe yellow airbag connectors.
• Use care around sharp sheet metal inside the door.
• Support the door trim panel so it does not hang by the wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 10mm socket
• Ratchet
• Extension
• Trim panel removal tool
• Flat trim tool
• Torx T30 driver
• Needle-nose pliers
• Pick tool
• Torque wrench
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator / latch assembly - Qty: 1
• Door panel retainers - Qty: 1 set
• Water shield butyl tape or adhesive - Qty: 1 roll

---

📋 Before You Begin

• Park on a level surface and open the rear door fully.
• Lower the window glass fully if possible. This gives more working room.
• Disconnect the negative battery cable with a 10mm socket.
• Wait at least 2 minutes after battery disconnect before working near door wiring.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a trim panel removal tool to pop off the switch bezel and any trim caps.
• Use a 7mm socket to remove the visible trim panel screws.
• Use the trim panel removal tool to release the retaining clips around the panel edge.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect the power window switch connector and any speaker or courtesy light connectors.

Step 2: Remove the water shield

• Use a flat trim tool to carefully peel back the moisture barrier.
• Keep the butyl adhesive clean so it can be reused if possible.
• Do not tear the water shield.

Step 3: Disconnect the latch cables and wiring

• Use a pick tool or needle-nose pliers to release the cable ends from the latch.
• Unclip the cable housings from the door latch bracket.
• Disconnect the electrical connector for the lock actuator.

Step 4: Remove the rear door latch / actuator assembly

• Use a Torx T30 driver to remove the latch mounting fasteners from the door edge.
• Slide the latch assembly out through the access opening in the door shell.
• If access is tight, rotate the assembly slightly and guide the rods/cables clear.

Step 5: Install the new actuator / latch assembly

• Position the new assembly in the door and line it up with the mounting holes.
• Reconnect the electrical connector.
• Reinstall the latch fasteners with the Torx T30 driver.
• Torque to 9 Nm (80 in-lbs).
• Reattach the latch cables and make sure they snap fully into place.

Step 6: Test the latch before reassembly

• Reconnect the negative battery cable with a 10mm socket.
• Use the key fob and the inside lock switch to test lock and unlock operation.
• Open and close the door several times to confirm the latch engages correctly.
• Test now, before reinstalling the panel.

Step 7: Reinstall the water shield and door panel

• Press the water shield back into place or replace the butyl tape if needed.
• Reconnect all electrical connectors to the door panel.
• Hook the top of the panel over the window ledge first.
• Press the clips in around the perimeter.
• Reinstall the screws with the 7mm socket.
• Snap the trim caps and bezel back into place.

---

✅ After Repair

• Confirm the rear door locks and unlocks from the key fob, switch, and door handle.
• Check the door opens from both inside and outside.
• Make sure the window switch, speaker, and courtesy light still work.
• Verify the door panel sits flush with no rattles.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
